inet::physicallayer::Ieee80211OfdmInterleaverModule Class Reference

#include <Ieee80211OfdmInterleaverModule.h>

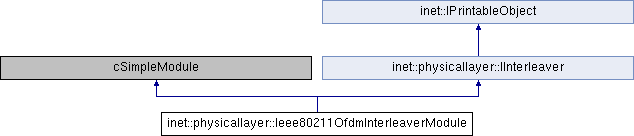

Inheritance diagram for inet::physicallayer::Ieee80211OfdmInterleaverModule:

Public Member Functions
virtual	~Ieee80211OfdmInterleaverModule ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual BitVector	interleave (const BitVector &bits) const override
virtual BitVector	deinterleave (const BitVector &bits) const override
virtual const Ieee80211OfdmInterleaving *	getInterleaving () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *msg) override

Protected Attributes
const Ieee80211OfdmInterleaver *	interleaver = nullptr

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

~Ieee80211OfdmInterleaverModule()

inet::physicallayer::Ieee80211OfdmInterleaverModule::~Ieee80211OfdmInterleaverModule ( )

virtual

{
    delete interleaver->getInterleaving();
    delete interleaver;
}

Member Function Documentation

deinterleave()

virtual BitVector inet::physicallayer::Ieee80211OfdmInterleaverModule::deinterleave ( const BitVector &  bits ) const

inlineoverridevirtual

Implements inet::physicallayer::IInterleaver.

{ return interleaver->deinterleave(bits); }

getInterleaving()

virtual const Ieee80211OfdmInterleaving* inet::physicallayer::Ieee80211OfdmInterleaverModule::getInterleaving ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IInterleaver.

{ return interleaver->getInterleaving(); }

handleMessage()

virtual void inet::physicallayer::Ieee80211OfdmInterleaverModule::handleMessage ( cMessage *  msg )

inlineoverrideprotectedvirtual

{ throw cRuntimeError("This module doesn't handle self messages."); }

initialize()

void inet::physicallayer::Ieee80211OfdmInterleaverModule::initialize ( int  stage )

overrideprotectedvirtual

{
    if (stage == INITSTAGE_LOCAL) {
        int numberOfCodedBitsPerSymbol = par("numberOfCodedBitsPerSymbol");
        int numberOfCodedBitsPerSubcarrier = par("numberOfCodedBitsPerSubcarrier");
        const Ieee80211OfdmInterleaving *interleaving = new Ieee80211OfdmInterleaving(numberOfCodedBitsPerSymbol, numberOfCodedBitsPerSubcarrier);
        interleaver = new Ieee80211OfdmInterleaver(interleaving);
    }
}

interleave()

virtual BitVector inet::physicallayer::Ieee80211OfdmInterleaverModule::interleave ( const BitVector &  bits ) const

inlineoverridevirtual

Implements inet::physicallayer::IInterleaver.

{ return interleaver->interleave(bits); }

numInitStages()

virtual int inet::physicallayer::Ieee80211OfdmInterleaverModule::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

printToStream()

std::ostream & inet::physicallayer::Ieee80211OfdmInterleaverModule::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    return interleaver->printToStream(stream, level);
}

Member Data Documentation

interleaver

const Ieee80211OfdmInterleaver* inet::physicallayer::Ieee80211OfdmInterleaverModule::interleaver = nullptr

protected

Referenced by initialize(), printToStream(), and ~Ieee80211OfdmInterleaverModule().

---

The documentation for this class was generated from the following files:

• Ieee80211OfdmInterleaverModule.h
• Ieee80211OfdmInterleaverModule.cc
