inet::physicallayer::Ieee80211HrDsssHeaderMode Class Reference

#include <Ieee80211HrDsssMode.h>

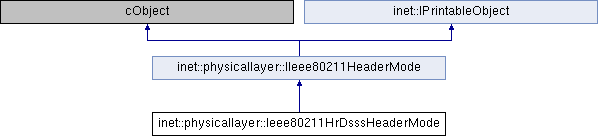

Inheritance diagram for inet::physicallayer::Ieee80211HrDsssHeaderMode:

Public Member Functions
	Ieee80211HrDsssHeaderMode (const Ieee80211HrDsssPreambleType preambleType)
b	getSignalFieldLength () const
b	getServiceFieldLength () const
b	getLengthFieldLength () const
b	getCrcFieldLength () const
virtual b	getLength () const override
virtual bps	getNetBitrate () const override
virtual bps	getGrossBitrate () const override
virtual const simtime_t	getDuration () const override
virtual const DpskModulationBase *	getModulation () const override
virtual Ptr< Ieee80211PhyHeader >	createHeader () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const Ieee80211HrDsssPreambleType	preambleType

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Ieee80211HrDsssHeaderMode()

inet::physicallayer::Ieee80211HrDsssHeaderMode::Ieee80211HrDsssHeaderMode

(

const Ieee80211HrDsssPreambleType

preambleType

)

                                                                                                   :
    preambleType(preambleType)
{
}

Member Function Documentation

createHeader()

virtual Ptr<Ieee80211PhyHeader> inet::physicallayer::Ieee80211HrDsssHeaderMode::createHeader ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return makeShared<Ieee80211HrDsssPhyHeader>(); }

getCrcFieldLength()

b inet::physicallayer::Ieee80211HrDsssHeaderMode::getCrcFieldLength ( ) const

inline

{ return b(16); }

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211HrDsssHeaderMode::getDuration ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return (double)getLength().get() / getNetBitrate().get(); }

Referenced by inet::physicallayer::Ieee80211HrDsssMode::getDuration(), and inet::physicallayer::Ieee80211HrDsssMode::getPlcpHeaderLength().

getGrossBitrate()

virtual bps inet::physicallayer::Ieee80211HrDsssHeaderMode::getGrossBitrate ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return getNetBitrate(); }

getLength()

virtual b inet::physicallayer::Ieee80211HrDsssHeaderMode::getLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return getSignalFieldLength() + getServiceFieldLength() + getLengthFieldLength() + getCrcFieldLength(); }

getLengthFieldLength()

b inet::physicallayer::Ieee80211HrDsssHeaderMode::getLengthFieldLength ( ) const

inline

{ return b(16); }

getModulation()

virtual const DpskModulationBase* inet::physicallayer::Ieee80211HrDsssHeaderMode::getModulation ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return preambleType == IEEE80211_HRDSSS_PREAMBLE_TYPE_SHORT ? static_cast<const DpskModulationBase *>(&DqpskModulation::singleton) : static_cast<const DpskModulationBase *>(&DbpskModulation::singleton); }

getNetBitrate()

virtual bps inet::physicallayer::Ieee80211HrDsssHeaderMode::getNetBitrate ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return preambleType == IEEE80211_HRDSSS_PREAMBLE_TYPE_SHORT ? Mbps(2) : Mbps(1); }

getServiceFieldLength()

b inet::physicallayer::Ieee80211HrDsssHeaderMode::getServiceFieldLength ( ) const

inline

{ return b(8); }

getSignalFieldLength()

b inet::physicallayer::Ieee80211HrDsssHeaderMode::getSignalFieldLength ( ) const

inline

{ return b(8); }

Member Data Documentation

preambleType

const Ieee80211HrDsssPreambleType inet::physicallayer::Ieee80211HrDsssHeaderMode::preambleType

protected

---

The documentation for this class was generated from the following files:

• Ieee80211HrDsssMode.h
• Ieee80211HrDsssMode.cc
