inet::physicallayer::Ieee80211FhssPreambleMode Class Reference

#include <Ieee80211FhssMode.h>

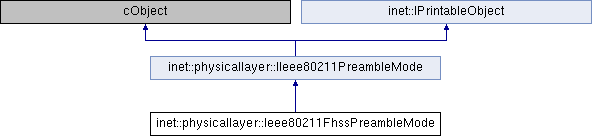

Inheritance diagram for inet::physicallayer::Ieee80211FhssPreambleMode:

Public Member Functions
	Ieee80211FhssPreambleMode ()
b	getSyncFieldLength () const
b	getSfdFieldLength () const
b	getLength () const
virtual bps	getNetBitrate () const
virtual bps	getGrossBitrate () const
virtual const simtime_t	getDuration () const override
virtual Ptr< Ieee80211PhyPreamble >	createPreamble () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Ieee80211FhssPreambleMode()

inet::physicallayer::Ieee80211FhssPreambleMode::Ieee80211FhssPreambleMode ( )

inline

{}

Member Function Documentation

createPreamble()

virtual Ptr<Ieee80211PhyPreamble> inet::physicallayer::Ieee80211FhssPreambleMode::createPreamble ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211PreambleMode.

{ return makeShared<Ieee80211FhssPhyPreamble>(); }

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211FhssPreambleMode::getDuration ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211PreambleMode.

{ return (double)getLength().get() / getNetBitrate().get(); }

Referenced by inet::physicallayer::Ieee80211FhssMode::getDuration(), and inet::physicallayer::Ieee80211FhssMode::getPreambleLength().

getGrossBitrate()

virtual bps inet::physicallayer::Ieee80211FhssPreambleMode::getGrossBitrate ( ) const

inlinevirtual

{ return getNetBitrate(); }

getLength()

b inet::physicallayer::Ieee80211FhssPreambleMode::getLength ( ) const

inline

{ return getSyncFieldLength() + getSfdFieldLength(); }

getNetBitrate()

virtual bps inet::physicallayer::Ieee80211FhssPreambleMode::getNetBitrate ( ) const

inlinevirtual

{ return Mbps(1); }

getSfdFieldLength()

b inet::physicallayer::Ieee80211FhssPreambleMode::getSfdFieldLength ( ) const

inline

{ return b(16); }

getSyncFieldLength()

b inet::physicallayer::Ieee80211FhssPreambleMode::getSyncFieldLength ( ) const

inline

{ return b(80); }

---

The documentation for this class was generated from the following file:

• Ieee80211FhssMode.h
