inet::physicallayer::Ieee80211FhssHeaderMode Class Reference

#include <Ieee80211FhssMode.h>

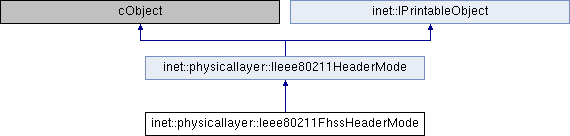

Inheritance diagram for inet::physicallayer::Ieee80211FhssHeaderMode:

Public Member Functions
	Ieee80211FhssHeaderMode ()
b	getPlwFieldLength () const
b	getPsfFieldLength () const
b	getHecFieldLength () const
virtual b	getLength () const override
virtual bps	getNetBitrate () const override
virtual bps	getGrossBitrate () const override
virtual const simtime_t	getDuration () const override
virtual const GfskModulationBase *	getModulation () const override
virtual Ptr< Ieee80211PhyHeader >	createHeader () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Ieee80211FhssHeaderMode()

inet::physicallayer::Ieee80211FhssHeaderMode::Ieee80211FhssHeaderMode ( )

inline

{}

Member Function Documentation

createHeader()

virtual Ptr<Ieee80211PhyHeader> inet::physicallayer::Ieee80211FhssHeaderMode::createHeader ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return makeShared<Ieee80211FhssPhyHeader>(); }

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211FhssHeaderMode::getDuration ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return (double)getLength().get() / getNetBitrate().get(); }

Referenced by inet::physicallayer::Ieee80211FhssMode::getDuration(), and inet::physicallayer::Ieee80211FhssMode::getPlcpHeaderLength().

getGrossBitrate()

virtual bps inet::physicallayer::Ieee80211FhssHeaderMode::getGrossBitrate ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return getNetBitrate(); }

getHecFieldLength()

b inet::physicallayer::Ieee80211FhssHeaderMode::getHecFieldLength ( ) const

inline

{ return b(16); }

getLength()

virtual b inet::physicallayer::Ieee80211FhssHeaderMode::getLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return getPlwFieldLength() + getPsfFieldLength() + getHecFieldLength(); }

getModulation()

virtual const GfskModulationBase* inet::physicallayer::Ieee80211FhssHeaderMode::getModulation ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return nullptr; }

getNetBitrate()

virtual bps inet::physicallayer::Ieee80211FhssHeaderMode::getNetBitrate ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return Mbps(1); }

getPlwFieldLength()

b inet::physicallayer::Ieee80211FhssHeaderMode::getPlwFieldLength ( ) const

inline

{ return b(12); }

getPsfFieldLength()

b inet::physicallayer::Ieee80211FhssHeaderMode::getPsfFieldLength ( ) const

inline

{ return b(4); }

---

The documentation for this class was generated from the following file:

• Ieee80211FhssMode.h
