Converts between Ieee80211ErpOfdmPhyHeader and binary network byte order IEEE 802.11 ERP OFDM PHY header. More...

#include <Ieee80211PhyHeaderSerializer.h>

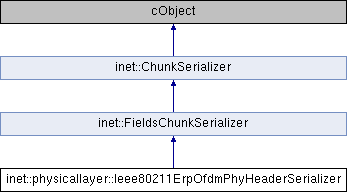

Inheritance diagram for inet::physicallayer::Ieee80211ErpOfdmPhyHeaderSerializer:

Public Member Functions
	Ieee80211ErpOfdmPhyHeaderSerializer ()

Public Member Functions inherited from inet::FieldsChunkSerializer
virtual void	serialize (MemoryOutputStream &stream, const Ptr< const Chunk > &chunk, b offset, b length) const override
	Serializes a chunk into a stream by writing the bytes representing the chunk at the end of the stream. More...

virtual const Ptr< Chunk >	deserialize (MemoryInputStream &stream, const std::type_info &typeInfo) const override
	Deserializes a chunk from a stream by reading the bytes at the current position of the stream. More...

Protected Member Functions
virtual void	serialize (MemoryOutputStream &stream, const Ptr< const Chunk > &chunk) const override
	ERP OFDM. More...

virtual const Ptr< Chunk >	deserialize (MemoryInputStream &stream) const override
	Deserializes a chunk from a stream by reading the bytes at the current position of the stream. More...

Additional Inherited Members
Static Public Attributes inherited from inet::ChunkSerializer
static b	totalSerializedLength = b(0)

static b	totalDeserializedLength = b(0)

Detailed Description

Converts between Ieee80211ErpOfdmPhyHeader and binary network byte order IEEE 802.11 ERP OFDM PHY header.

Constructor & Destructor Documentation

◆ Ieee80211ErpOfdmPhyHeaderSerializer()

inet::physicallayer::Ieee80211ErpOfdmPhyHeaderSerializer::Ieee80211ErpOfdmPhyHeaderSerializer ( )

inline

92 : FieldsChunkSerializer() {}

Member Function Documentation

◆ deserialize()

const Ptr< Chunk > inet::physicallayer::Ieee80211ErpOfdmPhyHeaderSerializer::deserialize ( MemoryInputStream & stream ) const

overrideprotectedvirtual

Deserializes a chunk from a stream by reading the bytes at the current position of the stream.

The current stream position is updated according to the length of the returned chunk.

Implements inet::FieldsChunkSerializer.

 {
     auto erpOfdmPhyHeader = makeShared<Ieee80211ErpOfdmPhyHeader>();
     erpOfdmPhyHeader->setRate(stream.readUint4());
     erpOfdmPhyHeader->setReserved(stream.readBit());
     erpOfdmPhyHeader->setLengthField(B(stream.readNBitsToUint64Be(12)));
     erpOfdmPhyHeader->setParity(stream.readBit());
     erpOfdmPhyHeader->setTail(stream.readNBitsToUint64Be(6));
     erpOfdmPhyHeader->setService(stream.readUint16Be());
     return erpOfdmPhyHeader;
 }

◆ serialize()

void inet::physicallayer::Ieee80211ErpOfdmPhyHeaderSerializer::serialize	(	MemoryOutputStream &	stream,
		const Ptr< const Chunk > &	chunk
	)		const

overrideprotectedvirtual

ERP OFDM.

Implements inet::FieldsChunkSerializer.

 {
     auto erpOfdmPhyHeader = dynamicPtrCast<const Ieee80211ErpOfdmPhyHeader>(chunk);
     stream.writeUint4(erpOfdmPhyHeader->getRate());
     stream.writeBit(erpOfdmPhyHeader->getReserved());
     stream.writeNBitsOfUint64Be(B(erpOfdmPhyHeader->getLengthField()).get(), 12);
     stream.writeBit(erpOfdmPhyHeader->getParity());
     stream.writeNBitsOfUint64Be(erpOfdmPhyHeader->getTail(), 6);
     stream.writeUint16Be(erpOfdmPhyHeader->getService());
 }

The documentation for this class was generated from the following files:
