Converts between Ieee80211DsssPhyHeader and binary network byte order IEEE 802.11 DSSS PHY header. More...

#include <Ieee80211PhyHeaderSerializer.h>

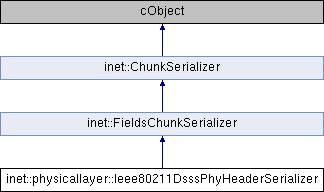

Inheritance diagram for inet::physicallayer::Ieee80211DsssPhyHeaderSerializer:

Public Member Functions
	Ieee80211DsssPhyHeaderSerializer ()

Public Member Functions inherited from inet::FieldsChunkSerializer
virtual void	serialize (MemoryOutputStream &stream, const Ptr< const Chunk > &chunk, b offset, b length) const override
	Serializes a chunk into a stream by writing the bytes representing the chunk at the end of the stream. More...

virtual const Ptr< Chunk >	deserialize (MemoryInputStream &stream, const std::type_info &typeInfo) const override
	Deserializes a chunk from a stream by reading the bytes at the current position of the stream. More...

Protected Member Functions
virtual void	serialize (MemoryOutputStream &stream, const Ptr< const Chunk > &chunk) const override
	DSSS. More...

virtual const Ptr< Chunk >	deserialize (MemoryInputStream &stream) const override
	Deserializes a chunk from a stream by reading the bytes at the current position of the stream. More...

Additional Inherited Members
Static Public Attributes inherited from inet::ChunkSerializer
static b	totalSerializedLength = b(0)

static b	totalDeserializedLength = b(0)

Detailed Description

Converts between Ieee80211DsssPhyHeader and binary network byte order IEEE 802.11 DSSS PHY header.

Constructor & Destructor Documentation

◆ Ieee80211DsssPhyHeaderSerializer()

inet::physicallayer::Ieee80211DsssPhyHeaderSerializer::Ieee80211DsssPhyHeaderSerializer ( )

inline

53 : FieldsChunkSerializer() {}

Member Function Documentation

◆ deserialize()

const Ptr< Chunk > inet::physicallayer::Ieee80211DsssPhyHeaderSerializer::deserialize ( MemoryInputStream & stream ) const

overrideprotectedvirtual

Deserializes a chunk from a stream by reading the bytes at the current position of the stream.

The current stream position is updated according to the length of the returned chunk.

Implements inet::FieldsChunkSerializer.

 {
     auto dsssPhyHeader = makeShared<Ieee80211DsssPhyHeader>();
     stream.readUint16Be();
     dsssPhyHeader->setSignal(stream.readByte());
     dsssPhyHeader->setService(stream.readByte());
     dsssPhyHeader->setLengthField(B(stream.readUint16Be()));
     dsssPhyHeader->setCrcMode(CRC_COMPUTED);
     return dsssPhyHeader;
 }

◆ serialize()

void inet::physicallayer::Ieee80211DsssPhyHeaderSerializer::serialize	(	MemoryOutputStream &	stream,
		const Ptr< const Chunk > &	chunk
	)		const

overrideprotectedvirtual

DSSS.

Implements inet::FieldsChunkSerializer.

 {
     auto dsssPhyHeader = dynamicPtrCast<const Ieee80211DsssPhyHeader>(chunk);
     stream.writeUint16Be(0);
     stream.writeByte(dsssPhyHeader->getSignal());
     stream.writeByte(dsssPhyHeader->getService());
     stream.writeUint16Be(B(dsssPhyHeader->getLengthField()).get());
 }

The documentation for this class was generated from the following files:
