inet::physicallayer::Ieee80211ChannelReq Class Reference

Class generated from inet/physicallayer/wireless/ieee80211/packetlevel/Ieee80211Tag.msg:51 by opp_msgtool. More...

#include <Ieee80211Tag_m.h>

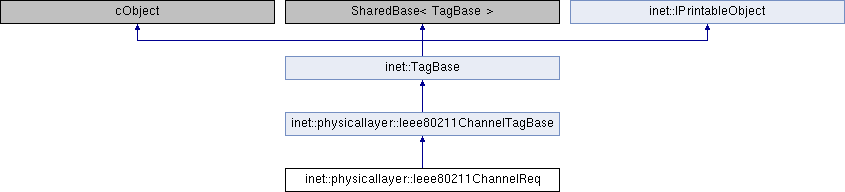

Inheritance diagram for inet::physicallayer::Ieee80211ChannelReq:

Public Member Functions
	Ieee80211ChannelReq ()
	Ieee80211ChannelReq (const Ieee80211ChannelReq &other)
virtual	~Ieee80211ChannelReq ()
Ieee80211ChannelReq &	operator= (const Ieee80211ChannelReq &other)
virtual Ieee80211ChannelReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::physicallayer::Ieee80211ChannelTagBase
	Ieee80211ChannelTagBase ()
	Ieee80211ChannelTagBase (const Ieee80211ChannelTagBase &other)
virtual	~Ieee80211ChannelTagBase ()
Ieee80211ChannelTagBase &	operator= (const Ieee80211ChannelTagBase &other)
virtual const Ieee80211Channel *	getChannel () const
virtual void	setChannel (const Ieee80211Channel *channel)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const Ieee80211ChannelReq &)=delete
Protected Member Functions inherited from inet::physicallayer::Ieee80211ChannelTagBase
bool	operator== (const Ieee80211ChannelTagBase &)=delete

Private Member Functions
void	copy (const Ieee80211ChannelReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::physicallayer::Ieee80211ChannelTagBase
const Ieee80211Channel *	channel = nullptr

Detailed Description

Class generated from inet/physicallayer/wireless/ieee80211/packetlevel/Ieee80211Tag.msg:51 by opp_msgtool.

//
// This request determines the IEEE 802.11 channel that should be used to transmit the packet.
// It may be present on a packet from the application to the phyisical layer.
//
class Ieee80211ChannelReq extends Ieee80211ChannelTagBase
{
}

Constructor & Destructor Documentation

Ieee80211ChannelReq() [1/2]

inet::physicallayer::Ieee80211ChannelReq::Ieee80211ChannelReq

(

)

Ieee80211ChannelReq() [2/2]

inet::physicallayer::Ieee80211ChannelReq::Ieee80211ChannelReq

(

const Ieee80211ChannelReq &

other

)

~Ieee80211ChannelReq()

virtual inet::physicallayer::Ieee80211ChannelReq::~Ieee80211ChannelReq ( )

virtual

Member Function Documentation

copy()

void inet::physicallayer::Ieee80211ChannelReq::copy ( const Ieee80211ChannelReq &  other )

private

dup()

virtual Ieee80211ChannelReq* inet::physicallayer::Ieee80211ChannelReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::physicallayer::Ieee80211ChannelTagBase.

{return new Ieee80211ChannelReq(*this);}

operator=()

Ieee80211ChannelReq& inet::physicallayer::Ieee80211ChannelReq::operator=

(

const Ieee80211ChannelReq &

other

)

operator==()

bool inet::physicallayer::Ieee80211ChannelReq::operator== ( const Ieee80211ChannelReq &  )

protecteddelete

parsimPack()

virtual void inet::physicallayer::Ieee80211ChannelReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::physicallayer::Ieee80211ChannelTagBase.

Referenced by inet::physicallayer::doParsimPacking().

parsimUnpack()

virtual void inet::physicallayer::Ieee80211ChannelReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::physicallayer::Ieee80211ChannelTagBase.

Referenced by inet::physicallayer::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• Ieee80211Tag_m.h
