inet::physicallayer::ApskDemodulator Class Reference

#include <ApskDemodulator.h>

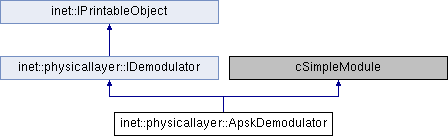

Inheritance diagram for inet::physicallayer::ApskDemodulator:

Public Member Functions
	ApskDemodulator ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const ApskModulationBase *	getModulation () const
virtual const IReceptionBitModel *	demodulate (const IReceptionSymbolModel *symbolModel) const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override

Protected Attributes
const ApskModulationBase *	modulation

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

ApskDemodulator()

inet::physicallayer::ApskDemodulator::ApskDemodulator

(

)

                                 :
    modulation(nullptr)
{
}

Member Function Documentation

demodulate()

const IReceptionBitModel * inet::physicallayer::ApskDemodulator::demodulate ( const IReceptionSymbolModel *  symbolModel ) const

overridevirtual

Implements inet::physicallayer::IDemodulator.

{
    const std::vector<const ISymbol *> *symbols = symbolModel->getSymbols();
    BitVector *bits = new BitVector();
    for (auto& symbols_i : *symbols) {
        const ApskSymbol *symbol = dynamic_cast<const ApskSymbol *>(symbols_i);
        ShortBitVector symbolBits = modulation->demapToBitRepresentation(symbol);
        for (unsigned int j = 0; j < symbolBits.getSize(); j++)
            bits->appendBit(symbolBits.getBit(j));
    }
    return new ReceptionBitModel(b(-1), bps(NaN), b(-1), bps(NaN), bits, NaN);
}

getModulation()

virtual const ApskModulationBase* inet::physicallayer::ApskDemodulator::getModulation ( ) const

inlinevirtual

{ return modulation; }

initialize()

void inet::physicallayer::ApskDemodulator::initialize ( int  stage )

overrideprotectedvirtual

{
    if (stage == INITSTAGE_LOCAL)
        modulation = ApskModulationBase::findModulation(par("modulation"));
}

numInitStages()

virtual int inet::physicallayer::ApskDemodulator::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

printToStream()

std::ostream & inet::physicallayer::ApskDemodulator::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    stream << "ApskDemodulator";
    if (level <= PRINT_LEVEL_DETAIL)
        stream << EV_FIELD(modulation, printFieldToString(modulation, level + 1, evFlags));
    return stream;
}

Member Data Documentation

modulation

const ApskModulationBase* inet::physicallayer::ApskDemodulator::modulation

protected

Referenced by demodulate(), initialize(), and printToStream().

---

The documentation for this class was generated from the following files:

• ApskDemodulator.h
• ApskDemodulator.cc
