inet::physicallayer::AdditiveScramblerModule Class Reference

#include <AdditiveScramblerModule.h>

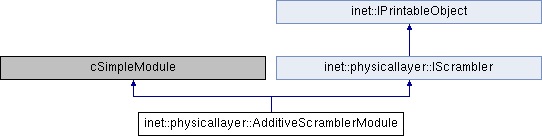

Inheritance diagram for inet::physicallayer::AdditiveScramblerModule:

Public Member Functions
virtual	~AdditiveScramblerModule ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual BitVector	scramble (const BitVector &bits) const override
virtual BitVector	descramble (const BitVector &bits) const override
virtual const AdditiveScrambling *	getScrambling () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *msg) override

Protected Attributes
const AdditiveScrambler *	scrambler

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

~AdditiveScramblerModule()

inet::physicallayer::AdditiveScramblerModule::~AdditiveScramblerModule ( )

virtual

{
    delete scrambler->getScrambling();
    delete scrambler;
}

Member Function Documentation

descramble()

virtual BitVector inet::physicallayer::AdditiveScramblerModule::descramble ( const BitVector &  bits ) const

inlineoverridevirtual

Implements inet::physicallayer::IScrambler.

{ return scrambler->descramble(bits); }

getScrambling()

virtual const AdditiveScrambling* inet::physicallayer::AdditiveScramblerModule::getScrambling ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IScrambler.

{ return scrambler->getScrambling(); }

handleMessage()

virtual void inet::physicallayer::AdditiveScramblerModule::handleMessage ( cMessage *  msg )

inlineoverrideprotectedvirtual

{ throw cRuntimeError("This module doesn't handle self messages"); }

initialize()

void inet::physicallayer::AdditiveScramblerModule::initialize ( int  stage )

overrideprotectedvirtual

{
    if (stage == INITSTAGE_LOCAL) {
        ShortBitVector seed(par("seed").stringValue());
        ShortBitVector generatorPolynomial(par("generatorPolynomial").stringValue());
        const AdditiveScrambling *scrambling = new AdditiveScrambling(seed, generatorPolynomial);
        scrambler = new AdditiveScrambler(scrambling);
    }
}

numInitStages()

virtual int inet::physicallayer::AdditiveScramblerModule::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

printToStream()

std::ostream & inet::physicallayer::AdditiveScramblerModule::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    return scrambler->printToStream(stream, level);
}

scramble()

virtual BitVector inet::physicallayer::AdditiveScramblerModule::scramble ( const BitVector &  bits ) const

inlineoverridevirtual

Implements inet::physicallayer::IScrambler.

{ return scrambler->scramble(bits); }

Member Data Documentation

scrambler

const AdditiveScrambler* inet::physicallayer::AdditiveScramblerModule::scrambler

protected

Referenced by initialize(), printToStream(), and ~AdditiveScramblerModule().

---

The documentation for this class was generated from the following files:

• AdditiveScramblerModule.h
• AdditiveScramblerModule.cc
