#include <Ospfv3NeighborState.h>

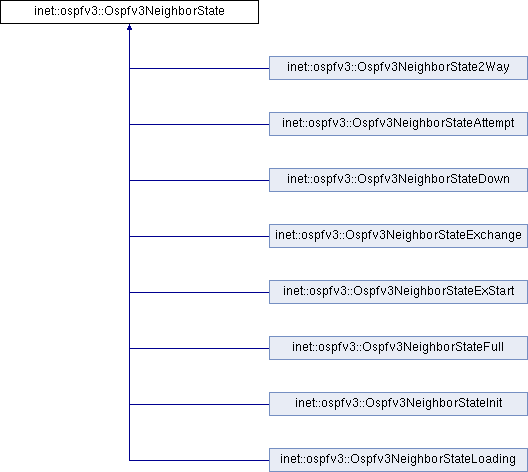

Inheritance diagram for inet::ospfv3::Ospfv3NeighborState:

Public Member Functions
virtual void	processEvent (Ospfv3Neighbor *neighbor, Ospfv3Neighbor::Ospfv3NeighborEventType event)=0

virtual Ospfv3Neighbor::Ospfv3NeighborStateType	getState () const =0

virtual std::string	getNeighborStateString ()=0

virtual	~Ospfv3NeighborState ()

Protected Member Functions
void	changeState (Ospfv3Neighbor neighbor, Ospfv3NeighborState newState, Ospfv3NeighborState *currentState)

Constructor & Destructor Documentation

◆ ~Ospfv3NeighborState()

virtual inet::ospfv3::Ospfv3NeighborState::~Ospfv3NeighborState ( )

inlinevirtual

19 {}

Member Function Documentation

◆ changeState()

void inet::ospfv3::Ospfv3NeighborState::changeState	(	Ospfv3Neighbor *	neighbor,
		Ospfv3NeighborState *	newState,
		Ospfv3NeighborState *	currentState
	)

protected

 {
     Ospfv3Neighbor::Ospfv3NeighborStateType oldState = currentState->getState();
     Ospfv3Neighbor::Ospfv3NeighborStateType nextState = newState->getState();
     bool shouldRebuildRoutingTable = false;

     EV_DEBUG << "Changing neighbor state from " << currentState->getNeighborStateString() << " to " << newState->getNeighborStateString() << "\n";

     neighbor->changeState(newState, currentState);

     if ((oldState == Ospfv3Neighbor::FULL_STATE) || (nextState == Ospfv3Neighbor::FULL_STATE)) {
         Ipv4Address routerID = neighbor->getInterface()->getArea()->getInstance()->getProcess()->getRouterID();
         RouterLSA *routerLSA = neighbor->getInterface()->getArea()->findRouterLSA(routerID);

         if (routerLSA != nullptr) {
             long sequenceNumber = routerLSA->getHeader().getLsaSequenceNumber();
             if (sequenceNumber == MAX_SEQUENCE_NUMBER) {
                 routerLSA->getHeaderForUpdate().setLsaAge(MAX_AGE);
                 neighbor->getInterface()->getArea()->floodLSA(routerLSA);
                 routerLSA->incrementInstallTime();
             }
             else {
                 RouterLSA *newLSA = neighbor->getInterface()->getArea()->originateRouterLSA();

                 newLSA->getHeaderForUpdate().setLsaSequenceNumber(sequenceNumber + 1);
                 shouldRebuildRoutingTable |= neighbor->getInterface()->getArea()->updateRouterLSA(routerLSA, newLSA);
                 if (shouldRebuildRoutingTable)
                     neighbor->getInterface()->getArea()->setSpfTreeRoot(routerLSA);
                 delete newLSA;

                 neighbor->getInterface()->getArea()->floodLSA(routerLSA);
             }
         }

         if (neighbor->getInterface()->getState() == Ospfv3Interface::INTERFACE_STATE_DESIGNATED) {
             NetworkLSA *networkLSA = neighbor->getInterface()->getArea()->findNetworkLSAByLSID(
                     Ipv4Address(neighbor->getInterface()->getInterfaceId()));

             if (networkLSA != nullptr) {
                 long sequenceNumber = networkLSA->getHeader().getLsaSequenceNumber();
                 if (sequenceNumber == MAX_SEQUENCE_NUMBER) {
                     networkLSA->getHeaderForUpdate().setLsaAge(MAX_AGE);
                     neighbor->getInterface()->getArea()->floodLSA(networkLSA);
                     networkLSA->incrementInstallTime();
                 }
                 else {
                     NetworkLSA *newLSA = neighbor->getInterface()->getArea()->originateNetworkLSA(neighbor->getInterface());

                     if (newLSA != nullptr) {
                         newLSA->getHeaderForUpdate().setLsaSequenceNumber(sequenceNumber + 1);
                         shouldRebuildRoutingTable |= neighbor->getInterface()->getArea()->updateNetworkLSA(networkLSA, newLSA);
                         delete newLSA;
                     }
                     else { // no neighbors on the network -> old NetworkLSA must be flushed
                         networkLSA->getHeaderForUpdate().setLsaAge(MAX_AGE);
                         networkLSA->incrementInstallTime();
                     }
                     neighbor->getInterface()->getArea()->floodLSA(networkLSA);
                 }
             }
         }
     }

     Ospfv3Area *thisArea = neighbor->getInterface()->getArea();
     if (nextState == Ospfv3Neighbor::DOWN_STATE) { // this neigbor was shuted down
         // invalidate all LSA type 3, which I know from this neighbor
         // set MAX_AGE
         if (thisArea->getInstance()->getAreaCount() > 1) { // this is ABR
             for (int ar = 0; ar < thisArea->getInstance()->getAreaCount(); ar++) {
                 Ospfv3Area *area = thisArea->getInstance()->getArea(ar);
                 if (area->getAreaID() == thisArea->getAreaID()) // skip my Area
                     continue;

                 // in all other Areas invalidate all Inter-Area-Prefix LSAs with same prefix IP as all
                 // known Intra-Area-Prefix LSAs from this neighbor
                 for (int i = 0; i < thisArea->getIntraAreaPrefixLSACount(); i++) {
                     IntraAreaPrefixLSA *iapLSA = thisArea->getIntraAreaPrefixLSA(i);
                     if (neighbor->getNeighborID() == iapLSA->getHeader().getAdvertisingRouter()) {
                         for (size_t k = 0; k < iapLSA->getPrefixesArraySize(); k++) {
                             // go through all Inter-Area-Prefix LSA of other Area
                             for (int j = 0; j < area->getInterAreaPrefixLSACount(); j++) {
                                 InterAreaPrefixLSA *interLSA = area->getInterAreaPrefixLSA(j);
                                 if ((interLSA->getHeader().getAdvertisingRouter() == thisArea->getInstance()->getProcess()->getRouterID()) &&
                                     (interLSA->getPrefix().addressPrefix == iapLSA->getPrefixes(k).addressPrefix) &&
                                     (interLSA->getPrefix().prefixLen == iapLSA->getPrefixes(k).prefixLen))
                                 {
                                     interLSA->getHeaderForUpdate().setLsaAge(MAX_AGE);
                                     area->floodLSA(interLSA);
                                 }
                             }
                         }
                         // invalidate INTRA LSA too
                         iapLSA->getHeaderForUpdate().setLsaAge(MAX_AGE);
 //                      neighbor->getInterface()->getArea()->floodLSA(iapLSA);
                     }
                 }
             }
         }
         else { // invalidate only INTRA LSA
             for (int i = 0; i < thisArea->getIntraAreaPrefixLSACount(); i++) {
                 IntraAreaPrefixLSA *iapLSA = thisArea->getIntraAreaPrefixLSA(i);
                 if (neighbor->getNeighborID() == iapLSA->getHeader().getAdvertisingRouter()) {
                     // invalidate INTRA LSA too
                     iapLSA->getHeaderForUpdate().setLsaAge(MAX_AGE);
                     thisArea->floodLSA(iapLSA);
                 }
             }
         }
     }

     if (shouldRebuildRoutingTable) {
         neighbor->getInterface()->getArea()->getInstance()->getProcess()->rebuildRoutingTable();
     }
 }
