inet::ieee80211::NonQoSSequenceNumberAssignment Class Reference

#include <NonQoSSequenceNumberAssignment.h>

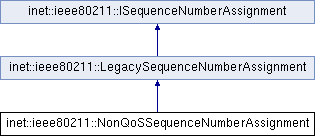

Inheritance diagram for inet::ieee80211::NonQoSSequenceNumberAssignment:

Public Member Functions
virtual void	assignSequenceNumber (const Ptr< Ieee80211DataOrMgmtHeader > &header) override
Public Member Functions inherited from inet::ieee80211::ISequenceNumberAssignment
virtual	~ISequenceNumberAssignment ()

Protected Attributes
std::map< MacAddress, SequenceNumberCyclic >	lastSentSeqNums
Protected Attributes inherited from inet::ieee80211::LegacySequenceNumberAssignment
SequenceNumberCyclic	lastSeqNum = SequenceNumberCyclic(0)

Member Function Documentation

assignSequenceNumber()

void inet::ieee80211::NonQoSSequenceNumberAssignment::assignSequenceNumber ( const Ptr< Ieee80211DataOrMgmtHeader > &  header )

overridevirtual

Reimplemented from inet::ieee80211::LegacySequenceNumberAssignment.

{
    ASSERT(header->getType() != ST_DATA_WITH_QOS);
    lastSeqNum = lastSeqNum + 1;
    const MacAddress& address = header->getReceiverAddress();
    auto it = lastSentSeqNums.find(address);
    if (it == lastSentSeqNums.end())
        lastSentSeqNums[address] = lastSeqNum;
    else {
        if (it->second == lastSeqNum)
            lastSeqNum = lastSeqNum + 1; // make it different from the last sequence number sent to that RA (spec: "add 2")
        it->second = lastSeqNum;
    }
    header->setSequenceNumber(lastSeqNum);
}

Member Data Documentation

lastSentSeqNums

std::map<MacAddress, SequenceNumberCyclic> inet::ieee80211::NonQoSSequenceNumberAssignment::lastSentSeqNums

protected

Referenced by assignSequenceNumber().

---

The documentation for this class was generated from the following files:

• NonQoSSequenceNumberAssignment.h
• NonQoSSequenceNumberAssignment.cc
