inet::ieee80211::Ieee80211Prim_AssociateRequest Class Reference

Class generated from inet/linklayer/ieee80211/mgmt/Ieee80211Primitives.msg:165 by opp_msgtool. More...

#include <Ieee80211Primitives_m.h>

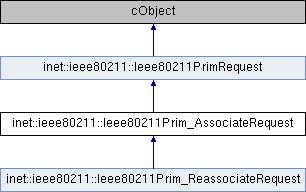

Inheritance diagram for inet::ieee80211::Ieee80211Prim_AssociateRequest:

Public Member Functions
	Ieee80211Prim_AssociateRequest ()
	Ieee80211Prim_AssociateRequest (const Ieee80211Prim_AssociateRequest &other)
virtual	~Ieee80211Prim_AssociateRequest ()
Ieee80211Prim_AssociateRequest &	operator= (const Ieee80211Prim_AssociateRequest &other)
virtual Ieee80211Prim_AssociateRequest *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual const ::inet::MacAddress &	getAddress () const
virtual ::inet::MacAddress &	getAddressForUpdate ()
virtual void	setAddress (const ::inet::MacAddress &address)
virtual ::omnetpp::simtime_t	getTimeout () const
virtual void	setTimeout (::omnetpp::simtime_t timeout)
Public Member Functions inherited from inet::ieee80211::Ieee80211PrimRequest
	Ieee80211PrimRequest ()
	Ieee80211PrimRequest (const Ieee80211PrimRequest &other)
virtual	~Ieee80211PrimRequest ()
Ieee80211PrimRequest &	operator= (const Ieee80211PrimRequest &other)

Protected Member Functions
bool	operator== (const Ieee80211Prim_AssociateRequest &)=delete
Protected Member Functions inherited from inet::ieee80211::Ieee80211PrimRequest
bool	operator== (const Ieee80211PrimRequest &)=delete

Protected Attributes
::inet::MacAddress	address
::omnetpp::simtime_t	timeout = SIMTIME_ZERO

Private Member Functions
void	copy (const Ieee80211Prim_AssociateRequest &other)

Detailed Description

Class generated from inet/linklayer/ieee80211/mgmt/Ieee80211Primitives.msg:165 by opp_msgtool.

//
// Losely based on MLME-ASSOCIATE.request
//
class Ieee80211Prim_AssociateRequest extends Ieee80211PrimRequest
{
    MacAddress address;
    simtime_t timeout;
}

Constructor & Destructor Documentation

Ieee80211Prim_AssociateRequest() [1/2]

inet::ieee80211::Ieee80211Prim_AssociateRequest::Ieee80211Prim_AssociateRequest

(

)

Ieee80211Prim_AssociateRequest() [2/2]

inet::ieee80211::Ieee80211Prim_AssociateRequest::Ieee80211Prim_AssociateRequest

(

const Ieee80211Prim_AssociateRequest &

other

)

~Ieee80211Prim_AssociateRequest()

virtual inet::ieee80211::Ieee80211Prim_AssociateRequest::~Ieee80211Prim_AssociateRequest ( )

virtual

Member Function Documentation

copy()

void inet::ieee80211::Ieee80211Prim_AssociateRequest::copy ( const Ieee80211Prim_AssociateRequest &  other )

private

dup()

virtual Ieee80211Prim_AssociateRequest* inet::ieee80211::Ieee80211Prim_AssociateRequest::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::ieee80211::Ieee80211PrimRequest.

Reimplemented in inet::ieee80211::Ieee80211Prim_ReassociateRequest.

{return new Ieee80211Prim_AssociateRequest(*this);}

getAddress()

virtual const ::inet::MacAddress& inet::ieee80211::Ieee80211Prim_AssociateRequest::getAddress ( ) const

virtual

getAddressForUpdate()

virtual ::inet::MacAddress& inet::ieee80211::Ieee80211Prim_AssociateRequest::getAddressForUpdate ( )

inline

{ return const_cast<::inet::MacAddress&>(const_cast<Ieee80211Prim_AssociateRequest*>(this)->getAddress());}

getTimeout()

virtual ::omnetpp::simtime_t inet::ieee80211::Ieee80211Prim_AssociateRequest::getTimeout

(

)

const

operator=()

Ieee80211Prim_AssociateRequest& inet::ieee80211::Ieee80211Prim_AssociateRequest::operator=

(

const Ieee80211Prim_AssociateRequest &

other

)

operator==()

bool inet::ieee80211::Ieee80211Prim_AssociateRequest::operator== ( const Ieee80211Prim_AssociateRequest &  )

protecteddelete

parsimPack()

virtual void inet::ieee80211::Ieee80211Prim_AssociateRequest::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::ieee80211::Ieee80211PrimRequest.

Reimplemented in inet::ieee80211::Ieee80211Prim_ReassociateRequest.

Referenced by inet::ieee80211::doParsimPacking().

parsimUnpack()

virtual void inet::ieee80211::Ieee80211Prim_AssociateRequest::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::ieee80211::Ieee80211PrimRequest.

Reimplemented in inet::ieee80211::Ieee80211Prim_ReassociateRequest.

Referenced by inet::ieee80211::doParsimUnpacking().

setAddress()

virtual void inet::ieee80211::Ieee80211Prim_AssociateRequest::setAddress ( const ::inet::MacAddress &  address )

virtual

Referenced by inet::ieee80211::Ieee80211AgentSta::sendAssociateRequest(), and inet::ieee80211::Ieee80211AgentSta::sendReassociateRequest().

setTimeout()

virtual void inet::ieee80211::Ieee80211Prim_AssociateRequest::setTimeout ( ::omnetpp::simtime_t  timeout )

virtual

Referenced by inet::ieee80211::Ieee80211AgentSta::sendAssociateRequest(), and inet::ieee80211::Ieee80211AgentSta::sendReassociateRequest().

Member Data Documentation

address

::inet::MacAddress inet::ieee80211::Ieee80211Prim_AssociateRequest::address

protected

timeout

::omnetpp::simtime_t inet::ieee80211::Ieee80211Prim_AssociateRequest::timeout = SIMTIME_ZERO

protected

---

The documentation for this class was generated from the following file:

• Ieee80211Primitives_m.h
