Converts between Ieee80211MsduSubframeHeader and binary network byte order IEEE 802.11 Msdu header. More...

#include <Ieee80211MacHeaderSerializer.h>

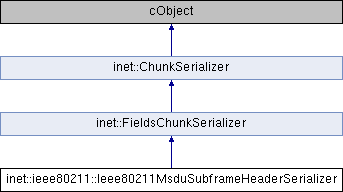

Inheritance diagram for inet::ieee80211::Ieee80211MsduSubframeHeaderSerializer:

Public Member Functions
	Ieee80211MsduSubframeHeaderSerializer ()

Public Member Functions inherited from inet::FieldsChunkSerializer
virtual void	serialize (MemoryOutputStream &stream, const Ptr< const Chunk > &chunk, b offset, b length) const override
	Serializes a chunk into a stream by writing the bytes representing the chunk at the end of the stream. More...

virtual const Ptr< Chunk >	deserialize (MemoryInputStream &stream, const std::type_info &typeInfo) const override
	Deserializes a chunk from a stream by reading the bytes at the current position of the stream. More...

Protected Member Functions
virtual void	serialize (MemoryOutputStream &stream, const Ptr< const Chunk > &chunk) const override
	Serializes a chunk into a stream by writing all bytes representing the chunk at the end of the stream. More...

virtual const Ptr< Chunk >	deserialize (MemoryInputStream &stream) const override
	Deserializes a chunk from a stream by reading the bytes at the current position of the stream. More...

Additional Inherited Members
Static Public Attributes inherited from inet::ChunkSerializer
static b	totalSerializedLength = b(0)

static b	totalDeserializedLength = b(0)

Detailed Description

Converts between Ieee80211MsduSubframeHeader and binary network byte order IEEE 802.11 Msdu header.

Constructor & Destructor Documentation

◆ Ieee80211MsduSubframeHeaderSerializer()

inet::ieee80211::Ieee80211MsduSubframeHeaderSerializer::Ieee80211MsduSubframeHeaderSerializer ( )

inline

51 : FieldsChunkSerializer() {}

Member Function Documentation

◆ deserialize()

const Ptr< Chunk > inet::ieee80211::Ieee80211MsduSubframeHeaderSerializer::deserialize ( MemoryInputStream & stream ) const

overrideprotectedvirtual

Deserializes a chunk from a stream by reading the bytes at the current position of the stream.

The current stream position is updated according to the length of the returned chunk.

Implements inet::FieldsChunkSerializer.

 {
     auto msduSubframe = makeShared<Ieee80211MsduSubframeHeader>();
     msduSubframe->setDa(stream.readMacAddress());
     msduSubframe->setSa(stream.readMacAddress());
     msduSubframe->setLength(stream.readUint16Be());
     return msduSubframe;
 }

◆ serialize()

void inet::ieee80211::Ieee80211MsduSubframeHeaderSerializer::serialize	(	MemoryOutputStream &	stream,
		const Ptr< const Chunk > &	chunk
	)		const

overrideprotectedvirtual

Serializes a chunk into a stream by writing all bytes representing the chunk at the end of the stream.

Implements inet::FieldsChunkSerializer.

 {
     auto msduSubframe = dynamicPtrCast<const Ieee80211MsduSubframeHeader>(chunk);
     stream.writeMacAddress(msduSubframe->getDa());
     stream.writeMacAddress(msduSubframe->getSa());
     stream.writeUint16Be(msduSubframe->getLength());
 }

The documentation for this class was generated from the following files:
