inet::VoipStreamSender Class Reference

#include <VoipStreamSender.h>

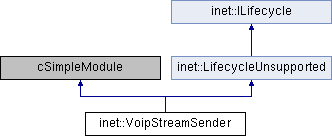

Inheritance diagram for inet::VoipStreamSender:

Classes
class	Buffer

Public Member Functions
	VoipStreamSender ()
	~VoipStreamSender ()
Public Member Functions inherited from inet::LifecycleUnsupported
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Protected Member Functions
virtual void	initialize (int stage) override
virtual int	numInitStages () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	finish () override
virtual void	openSoundFile (const char *name)
virtual Packet *	generatePacket ()
virtual bool	checkSilence (AVSampleFormat sampleFormat, void *_buf, int samples)
virtual void	readFrame ()

Protected Attributes
int	localPort = -1
int	destPort = -1
L3Address	destAddress
int	voipHeaderSize = 0
int	voipSilenceThreshold = 0
int	voipSilencePacketSize = 0
int	sampleRate = 0
const char *	codec = nullptr
int	compressedBitRate = 0
simtime_t	packetTimeLength
const char *	soundFile = nullptr
int	repeatCount = 0
const char *	traceFileName = nullptr
AudioOutFile	outFile
AVFormatContext *	pFormatCtx = nullptr
AVCodecContext *	pCodecCtx = nullptr
AVCodec *	pCodec = nullptr
AVAudioResampleContext *	pReSampleCtx = nullptr
AVCodecContext *	pEncoderCtx = nullptr
AVCodec *	pCodecEncoder = nullptr
UdpSocket	socket
int	streamIndex = -1
uint32_t	pktID = 0
int	samplesPerPacket = 0
AVPacket	packet {}
Buffer	sampleBuffer
cMessage *	timer = nullptr

Constructor & Destructor Documentation

VoipStreamSender()

inet::VoipStreamSender::VoipStreamSender

(

)

{
}

~VoipStreamSender()

inet::VoipStreamSender::~VoipStreamSender

(

)

{
    if (pEncoderCtx) {
        avcodec_close(pEncoderCtx);
        avcodec_free_context(&pEncoderCtx);
    }
    cancelAndDelete(timer);
    av_free_packet(&packet);
}

Member Function Documentation

checkSilence()

bool inet::VoipStreamSender::checkSilence ( AVSampleFormat  sampleFormat, void *  _buf, int  samples  )

protectedvirtual

{
    int max = 0;
    int i;

    switch (sampleFormat) {
        case AV_SAMPLE_FMT_U8: {
            uint8_t *buf = (uint8_t *)_buf;
            for (i = 0; i < samples; ++i) {
                int s = abs(int(buf[i]) - 0x80);
                if (s > max)
                    max = s;
            }
        }
        break;

        case AV_SAMPLE_FMT_S16: {
            int16_t *buf = (int16_t *)_buf;
            for (i = 0; i < samples; ++i) {
                int s = abs(buf[i]);
                if (s > max)
                    max = s;
            }
        }
        break;

        case AV_SAMPLE_FMT_S32: {
            int32_t *buf = (int32_t *)_buf;

            for (i = 0; i < samples; ++i) {
                int s = abs(buf[i]);

                if (s > max)
                    max = s;
            }
        }
        break;

        default:
            throw cRuntimeError("Invalid sampleFormat: %d", sampleFormat);
    }

    return max < voipSilenceThreshold;
}

Referenced by generatePacket().

finish()

void inet::VoipStreamSender::finish ( )

overrideprotectedvirtual

{
    av_free_packet(&packet);
    outFile.close();

    if (pCodecCtx) {
        avcodec_close(pCodecCtx);
    }
    if (pReSampleCtx) {
        avresample_close(pReSampleCtx);
        avresample_free(&pReSampleCtx);
        pReSampleCtx = nullptr;
    }

    if (pFormatCtx) {
        avformat_close_input(&pFormatCtx);
    }
}

generatePacket()

Packet * inet::VoipStreamSender::generatePacket ( )

protectedvirtual

{
    readFrame();

    if (sampleBuffer.empty())
        return nullptr;

    short int bytesPerInSample = av_get_bytes_per_sample(pEncoderCtx->sample_fmt);
    int samples = std::min(sampleBuffer.length() / (bytesPerInSample), samplesPerPacket);
    int inBytes = samples * bytesPerInSample;
    bool isSilent = checkSilence(pEncoderCtx->sample_fmt, sampleBuffer.readPtr(), samples);
    const auto& vp = makeShared<VoipStreamPacket>();

    AVPacket opacket;
    av_init_packet(&opacket);
    opacket.data = nullptr;
    opacket.size = 0;
    AVFrame *frame = av_frame_alloc();

    frame->nb_samples = samples;

    frame->channel_layout = AV_CH_LAYOUT_MONO;
    frame->sample_rate = pEncoderCtx->sample_rate;

    int ret = avcodec_fill_audio_frame(frame, /*channels*/ 1, pEncoderCtx->sample_fmt, (const uint8_t *)(sampleBuffer.readPtr()), inBytes, 1);
    if (ret < 0)
        throw cRuntimeError("Error in avcodec_fill_audio_frame(): err=%d", ret);

    // The bitsPerOutSample is not 0 when codec is PCM.
    int gotPacket;
    ret = avcodec_encode_audio2(pEncoderCtx, &opacket, frame, &gotPacket);
    if (ret < 0 || gotPacket != 1)
        throw cRuntimeError("avcodec_encode_audio() error: %d gotPacket: %d", ret, gotPacket);

    if (outFile.isOpen())
        outFile.write(sampleBuffer.readPtr(), inBytes);
    sampleBuffer.notifyRead(inBytes);

    Packet *pk = new Packet();
    if (isSilent) {
        pk->setName("SILENCE");
        vp->setType(SILENCE);
        vp->setChunkLength(B(voipSilencePacketSize));
        vp->setHeaderLength(voipSilencePacketSize);
        vp->setDataLength(0);
    }
    else {
        pk->setName("VOICE");
        vp->setType(VOICE);
        vp->setDataLength(opacket.size);
        vp->setChunkLength(B(voipHeaderSize));
        vp->setHeaderLength(voipHeaderSize);
        const auto& voice = makeShared<BytesChunk>(opacket.data, opacket.size);
        pk->insertAtFront(voice);
    }

    vp->setTimeStamp(pktID);
    vp->setSeqNo(pktID);
    vp->setCodec(pEncoderCtx->codec_id);
    vp->setSampleRate(sampleRate);
    vp->setSampleBits(pEncoderCtx->bits_per_coded_sample);
    vp->setSamplesPerPacket(samplesPerPacket);
    vp->setTransmitBitrate(compressedBitRate);
    pk->insertAtFront(vp);

    pktID++;

    av_free_packet(&opacket);
    av_frame_free(&frame);
    return pk;
}

Referenced by handleMessage().

handleMessage()

void inet::VoipStreamSender::handleMessage ( cMessage *  msg )

overrideprotectedvirtual

{
    if (msg->isSelfMessage()) {
        Packet *packet;

        if (msg == timer) {
            packet = generatePacket();

            if (!packet) {
                if (repeatCount > 1) {
                    repeatCount--;
                    av_seek_frame(pFormatCtx, streamIndex, 0, 0);
                    packet = generatePacket();
                }
            }

            if (packet) {
                // reschedule trigger message
                scheduleAfter(packetTimeLength, packet);
                scheduleAfter(packetTimeLength, msg);
            }
        }
        else {
            packet = check_and_cast<Packet *>(msg);
            emit(packetSentSignal, packet);
            socket.sendTo(packet, destAddress, destPort);
        }
    }
    else
        delete msg;
}

initialize()

void inet::VoipStreamSender::initialize ( int  stage )

overrideprotectedvirtual

{
    if (stage == INITSTAGE_LOCAL) {
        voipHeaderSize = par("voipHeaderSize");
        voipSilenceThreshold = par("voipSilenceThreshold");
        sampleRate = par("sampleRate");
        codec = par("codec");
        compressedBitRate = par("compressedBitRate");
        packetTimeLength = par("packetTimeLength");

        samplesPerPacket = (int)round(sampleRate * SIMTIME_DBL(packetTimeLength));
        if (samplesPerPacket & 1)
            samplesPerPacket++;
        EV_INFO << "The packetTimeLength parameter is " << packetTimeLength * 1000.0 << "ms, ";
        packetTimeLength = ((double)samplesPerPacket) / sampleRate;
        EV_INFO << "adjusted to " << packetTimeLength * 1000.0 << "ms" << endl;

        soundFile = par("soundFile");
        repeatCount = par("repeatCount");
        traceFileName = par("traceFileName");

        pReSampleCtx = nullptr;
        localPort = par("localPort");
        destPort = par("destPort");
        EV_DEBUG << "libavcodec: " << LIBAVCODEC_VERSION_MAJOR << "." << LIBAVCODEC_VERSION_MINOR << "." << LIBAVCODEC_VERSION_MICRO << endl;
        EV_DEBUG << "libavformat: " << LIBAVFORMAT_VERSION_MAJOR << "." << LIBAVFORMAT_VERSION_MINOR << "." << LIBAVFORMAT_VERSION_MICRO << endl;
        EV_DEBUG << "libavutil: " << LIBAVUTIL_VERSION_MAJOR << "." << LIBAVUTIL_VERSION_MINOR << "." << LIBAVUTIL_VERSION_MICRO << endl;
        EV_DEBUG << "libavresample: " << LIBAVRESAMPLE_VERSION_MAJOR << "." << LIBAVRESAMPLE_VERSION_MINOR << "." << LIBAVRESAMPLE_VERSION_MICRO << endl;
    }
    else if (stage == INITSTAGE_APPLICATION_LAYER) {
        cModule *node = findContainingNode(this);
        NodeStatus *nodeStatus = node ? check_and_cast_nullable<NodeStatus *>(node->getSubmodule("status")) : nullptr;
        bool isOperational = (!nodeStatus) || nodeStatus->getState() == NodeStatus::UP;
        if (!isOperational)
            throw cRuntimeError("This module doesn't support starting in node DOWN state");

        // say HELLO to the world
        EV_TRACE << "VoIPSourceApp -> initialize(" << stage << ")" << endl;

        // KLUDGE hack to create results folder (doesn't work when record-scalars = false)
        recordScalar("hackForCreateResultsFolder", 0);

        destAddress = L3AddressResolver().resolve(par("destAddress"));
        socket.setOutputGate(gate("socketOut"));

        socket.bind(localPort);

        int timeToLive = par("timeToLive");
        if (timeToLive != -1)
            socket.setTimeToLive(timeToLive);

        int dscp = par("dscp");
        if (dscp != -1)
            socket.setDscp(dscp);

        int tos = par("tos");
        if (tos != -1)
            socket.setTos(tos);

        simtime_t startTime = par("startTime");

        sampleBuffer.clear(0);

        // initialize avcodec library
        av_register_all();
        avcodec_register_all();

        av_init_packet(&packet);

        openSoundFile(soundFile);

        timer = new cMessage("sendVoIP");
        scheduleAt(startTime, timer);

        voipSilencePacketSize = voipHeaderSize;

        // initialize the sequence number
        pktID = 1;
    }
}

numInitStages()

virtual int inet::VoipStreamSender::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

openSoundFile()

void inet::VoipStreamSender::openSoundFile ( const char *  name )

protectedvirtual

{
    int ret;

    ret = avformat_open_input(&pFormatCtx, name, nullptr, nullptr);
    if (ret < 0)
        throw cRuntimeError("Audiofile '%s' open error: %d", name, ret);

    ret = avformat_find_stream_info(pFormatCtx, nullptr);
    if (ret < 0)
        throw cRuntimeError("Audiofile '%s' avformat_find_stream_info() error: %d", name, ret);

    // get stream number
    streamIndex = -1;
    for (unsigned int j = 0; j < pFormatCtx->nb_streams; j++) {
        if (pFormatCtx->streams[j]->codec->codec_type == AVMEDIA_TYPE_AUDIO) {
            streamIndex = j;
            break;
        }
    }

    if (streamIndex == -1)
        throw cRuntimeError("The file '%s' not contains any audio stream.", name);

    pCodecCtx = pFormatCtx->streams[streamIndex]->codec;

    // find decoder and open the correct codec
    pCodec = avcodec_find_decoder(pCodecCtx->codec_id);
    if (!pCodec)
        throw cRuntimeError("Audiofile '%s' avcodec_find_decoder() error: decoder not found", name);

    ret = avcodec_open2(pCodecCtx, pCodec, nullptr);
    if (ret < 0)
        throw cRuntimeError("avcodec_open() error on file '%s': %d", name, ret);

    // allocate encoder
    pEncoderCtx = avcodec_alloc_context3(nullptr);
    if (!pEncoderCtx)
        throw cRuntimeError("error occured in avcodec_alloc_context3()");
    // set bitrate:
    pEncoderCtx->bit_rate = compressedBitRate;

    pEncoderCtx->sample_rate = sampleRate;
    pEncoderCtx->channels = 1;

    pCodecEncoder = avcodec_find_encoder_by_name(codec);
    if (!pCodecEncoder)
        throw cRuntimeError("Codec '%s' not found!", codec);

    pEncoderCtx->sample_fmt = pCodecEncoder->sample_fmts[0];

    if (avcodec_open2(pEncoderCtx, pCodecEncoder, nullptr) < 0)
        throw cRuntimeError("could not open %s encoding codec!", codec);

    if (pCodecCtx->sample_rate == sampleRate
        && pCodecCtx->sample_fmt == pEncoderCtx->sample_fmt
        && pCodecCtx->channels == 1)
    {
        pReSampleCtx = nullptr;
    }
    else {
        pReSampleCtx = avresample_alloc_context();
        if (!pReSampleCtx)
            throw cRuntimeError("error in av_audio_resample_init()");

        int inChannelLayout = pCodecCtx->channel_layout == 0 ? av_get_default_channel_layout(pCodecCtx->channels) : pCodecCtx->channel_layout;
        if (av_opt_set_int(pReSampleCtx, "in_channel_layout", inChannelLayout, 0))
            throw cRuntimeError("error in option setting of 'in_channel_layout'");
        if (av_opt_set_int(pReSampleCtx, "in_sample_fmt", pCodecCtx->sample_fmt, 0))
            throw cRuntimeError("error in option setting of 'in_sample_fmt'");
        if (av_opt_set_int(pReSampleCtx, "in_sample_rate", pCodecCtx->sample_rate, 0))
            throw cRuntimeError("error in option setting of 'in_sample_rate'");
        if (av_opt_set_int(pReSampleCtx, "out_channel_layout", AV_CH_LAYOUT_MONO, 0))
            throw cRuntimeError("error in option setting of 'out_channel_layout'");
        if (av_opt_set_int(pReSampleCtx, "out_sample_fmt", pEncoderCtx->sample_fmt, 0))
            throw cRuntimeError("error in option setting of 'out_sample_fmt'");
        if (av_opt_set_int(pReSampleCtx, "out_sample_rate", sampleRate, 0))
            throw cRuntimeError("error in option setting of 'out_sample_rate'");
        if (av_opt_set_int(pReSampleCtx, "internal_sample_fmt", AV_SAMPLE_FMT_FLTP, 0))
            throw cRuntimeError("error in option setting of 'internal_sample_fmt'");

        ret = avresample_open(pReSampleCtx);
        if (ret < 0)
            throw cRuntimeError("Error opening context");
    }

    if (traceFileName && *traceFileName)
        outFile.open(traceFileName, sampleRate, 8 * av_get_bytes_per_sample(pEncoderCtx->sample_fmt));

    sampleBuffer.clear(samplesPerPacket * av_get_bytes_per_sample(pEncoderCtx->sample_fmt));
}

Referenced by initialize().

readFrame()

void inet::VoipStreamSender::readFrame ( )

protectedvirtual

{
    short int inBytesPerSample = av_get_bytes_per_sample(pCodecCtx->sample_fmt);
    short int outBytesPerSample = av_get_bytes_per_sample(pEncoderCtx->sample_fmt);
    if (sampleBuffer.length() >= samplesPerPacket * inBytesPerSample)
        return;

    sampleBuffer.align();

    while (sampleBuffer.length() < samplesPerPacket * inBytesPerSample) {
        // read one frame
        int err = av_read_frame(pFormatCtx, &packet);
        if (err < 0)
            break;

        // if the frame doesn't belong to our audiostream, continue... is not supposed to happen,
        // since .wav contain only one media stream
        if (packet.stream_index != streamIndex)
            continue;

        // packet length == 0 ? read next packet
        if (packet.size == 0)
            continue;

        AVPacket avpkt;
        avpkt.data = nullptr;
        avpkt.size = 0;
        av_init_packet(&avpkt);
        ASSERT(avpkt.data == nullptr && avpkt.size == 0);
        avpkt.data = packet.data;
        avpkt.size = packet.size;

        while (avpkt.size > 0) {
            // decode audio and save the decoded samples in our buffer
            AVFrame *frame = av_frame_alloc();
            int gotFrame;
            int decoded = avcodec_decode_audio4(pCodecCtx, frame, &gotFrame, &avpkt);
            if (decoded < 0)
                throw cRuntimeError("Error in avcodec_decode_audio4(), err=%d, gotFrame=%d", decoded, gotFrame);

            avpkt.data += decoded;
            avpkt.size -= decoded;

            if (gotFrame) {
                if (!pReSampleCtx) {
                    // copy frame to sampleBuffer
                    int dataSize = av_samples_get_buffer_size(nullptr, pCodecCtx->channels, frame->nb_samples, pCodecCtx->sample_fmt, 1);
                    memcpy(sampleBuffer.writePtr(), frame->data[0], dataSize);
                    sampleBuffer.notifyWrote(dataSize);
                }
                else {
                    uint8_t *tmpSamples = new uint8_t[Buffer::BUFSIZE];

                    uint8_t **in_data = frame->extended_data;
                    int in_linesize = frame->linesize[0];
                    int in_nb_samples = frame->nb_samples;

                    uint8_t *out_data[AVRESAMPLE_MAX_CHANNELS] = {
                        nullptr
                    };
                    int maxOutSamples = sampleBuffer.availableSpace() / outBytesPerSample;
                    int out_linesize;
                    int ret;
                    ret = av_samples_fill_arrays(out_data, &out_linesize, tmpSamples, 1, maxOutSamples, pEncoderCtx->sample_fmt, 0);
                    if (ret < 0)
                        throw cRuntimeError("failed out_data fill arrays");

                    decoded = avresample_convert(pReSampleCtx, out_data, out_linesize, decoded, in_data, in_linesize, in_nb_samples);
                    if (decoded <= 0 && avresample_get_delay(pReSampleCtx) == 0) {
                        throw cRuntimeError("audio_resample() returns error");
                    }
//                    if (avresample_get_delay(pReSampleCtx) > 0)
//                         throw cRuntimeError("%d delay samples not converted\n", avresample_get_delay(pReSampleCtx));
//                    if (avresample_available(pReSampleCtx) > 0)
//                         throw cRuntimeError("%d samples available for output\n", avresample_available(pReSampleCtx));
                    if (decoded > 0) {
                        memcpy(sampleBuffer.writePtr(), out_data[0], decoded * outBytesPerSample);
                        sampleBuffer.notifyWrote(decoded * outBytesPerSample);
                    }
                    delete[] tmpSamples;
                }
            }
            av_frame_free(&frame);
            av_free_packet(&avpkt);
        }
        av_free_packet(&packet);
    }
}

Referenced by generatePacket().

Member Data Documentation

codec

const char* inet::VoipStreamSender::codec = nullptr

protected

Referenced by initialize(), and openSoundFile().

compressedBitRate

int inet::VoipStreamSender::compressedBitRate = 0

protected

Referenced by generatePacket(), initialize(), and openSoundFile().

destAddress

L3Address inet::VoipStreamSender::destAddress

protected

Referenced by handleMessage(), and initialize().

destPort

int inet::VoipStreamSender::destPort = -1

protected

Referenced by handleMessage(), and initialize().

localPort

int inet::VoipStreamSender::localPort = -1

protected

Referenced by initialize().

outFile

AudioOutFile inet::VoipStreamSender::outFile

protected

Referenced by finish(), generatePacket(), and openSoundFile().

packet

AVPacket inet::VoipStreamSender::packet {}

protected

Referenced by finish(), handleMessage(), initialize(), readFrame(), and ~VoipStreamSender().

packetTimeLength

simtime_t inet::VoipStreamSender::packetTimeLength

protected

Referenced by handleMessage(), and initialize().

pCodec

AVCodec* inet::VoipStreamSender::pCodec = nullptr

protected

Referenced by openSoundFile().

pCodecCtx

AVCodecContext* inet::VoipStreamSender::pCodecCtx = nullptr

protected

Referenced by finish(), openSoundFile(), and readFrame().

pCodecEncoder

AVCodec* inet::VoipStreamSender::pCodecEncoder = nullptr

protected

Referenced by openSoundFile().

pEncoderCtx

AVCodecContext* inet::VoipStreamSender::pEncoderCtx = nullptr

protected

Referenced by generatePacket(), openSoundFile(), readFrame(), and ~VoipStreamSender().

pFormatCtx

AVFormatContext* inet::VoipStreamSender::pFormatCtx = nullptr

protected

Referenced by finish(), handleMessage(), openSoundFile(), and readFrame().

pktID

uint32_t inet::VoipStreamSender::pktID = 0

protected

Referenced by generatePacket(), and initialize().

pReSampleCtx

AVAudioResampleContext* inet::VoipStreamSender::pReSampleCtx = nullptr

protected

Referenced by finish(), initialize(), openSoundFile(), and readFrame().

repeatCount

int inet::VoipStreamSender::repeatCount = 0

protected

Referenced by handleMessage(), and initialize().

sampleBuffer

Buffer inet::VoipStreamSender::sampleBuffer

protected

Referenced by generatePacket(), initialize(), openSoundFile(), and readFrame().

sampleRate

int inet::VoipStreamSender::sampleRate = 0

protected

Referenced by generatePacket(), initialize(), and openSoundFile().

samplesPerPacket

int inet::VoipStreamSender::samplesPerPacket = 0

protected

Referenced by generatePacket(), initialize(), openSoundFile(), and readFrame().

socket

UdpSocket inet::VoipStreamSender::socket

protected

Referenced by handleMessage(), and initialize().

soundFile

const char* inet::VoipStreamSender::soundFile = nullptr

protected

Referenced by initialize().

streamIndex

int inet::VoipStreamSender::streamIndex = -1

protected

Referenced by handleMessage(), openSoundFile(), and readFrame().

timer

cMessage* inet::VoipStreamSender::timer = nullptr

protected

Referenced by handleMessage(), initialize(), and ~VoipStreamSender().

traceFileName

const char* inet::VoipStreamSender::traceFileName = nullptr

protected

Referenced by initialize(), and openSoundFile().

voipHeaderSize

int inet::VoipStreamSender::voipHeaderSize = 0

protected

Referenced by generatePacket(), and initialize().

voipSilencePacketSize

int inet::VoipStreamSender::voipSilencePacketSize = 0

protected

Referenced by generatePacket(), and initialize().

voipSilenceThreshold

int inet::VoipStreamSender::voipSilenceThreshold = 0

protected

Referenced by checkSilence(), and initialize().

---

The documentation for this class was generated from the following files:

• VoipStreamSender.h
• VoipStreamSender.cc
