inet::VlanReq Class Reference

Class generated from inet/linklayer/common/VlanTag.msg:25 by opp_msgtool. More...

#include <VlanTag_m.h>

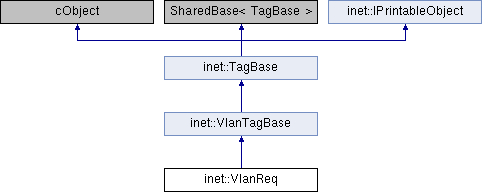

Inheritance diagram for inet::VlanReq:

Public Member Functions
	VlanReq ()
	VlanReq (const VlanReq &other)
virtual	~VlanReq ()
VlanReq &	operator= (const VlanReq &other)
virtual VlanReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::VlanTagBase
	VlanTagBase ()
	VlanTagBase (const VlanTagBase &other)
virtual	~VlanTagBase ()
VlanTagBase &	operator= (const VlanTagBase &other)
virtual int	getVlanId () const
virtual void	setVlanId (int vlanId)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const VlanReq &)=delete
Protected Member Functions inherited from inet::VlanTagBase
bool	operator== (const VlanTagBase &)=delete

Private Member Functions
void	copy (const VlanReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::VlanTagBase
int	vlanId = -1

Detailed Description

Class generated from inet/linklayer/common/VlanTag.msg:25 by opp_msgtool.

//
// This request determines the vlan that should be used to send the packet.
// It may be present on a packet from the application to the mac protocol.
//
class VlanReq extends VlanTagBase
{
}

Constructor & Destructor Documentation

VlanReq() [1/2]

inet::VlanReq::VlanReq

(

)

VlanReq() [2/2]

inet::VlanReq::VlanReq

(

const VlanReq &

other

)

~VlanReq()

virtual inet::VlanReq::~VlanReq ( )

virtual

Member Function Documentation

copy()

void inet::VlanReq::copy ( const VlanReq &  other )

private

dup()

virtual VlanReq* inet::VlanReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::VlanTagBase.

{return new VlanReq(*this);}

operator=()

VlanReq& inet::VlanReq::operator=

(

const VlanReq &

other

)

operator==()

bool inet::VlanReq::operator== ( const VlanReq &  )

protecteddelete

parsimPack()

virtual void inet::VlanReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::VlanTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::VlanReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::VlanTagBase.

Referenced by inet::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• VlanTag_m.h
