inet::UserPriorityInd Class Reference

Class generated from inet/linklayer/common/UserPriorityTag.msg:33 by opp_msgtool. More...

#include <UserPriorityTag_m.h>

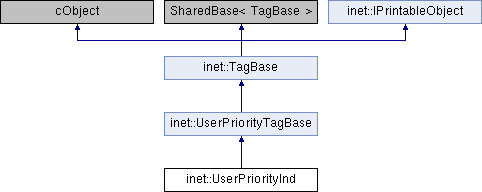

Inheritance diagram for inet::UserPriorityInd:

Public Member Functions
	UserPriorityInd ()
	UserPriorityInd (const UserPriorityInd &other)
virtual	~UserPriorityInd ()
UserPriorityInd &	operator= (const UserPriorityInd &other)
virtual UserPriorityInd *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::UserPriorityTagBase
	UserPriorityTagBase ()
	UserPriorityTagBase (const UserPriorityTagBase &other)
virtual	~UserPriorityTagBase ()
UserPriorityTagBase &	operator= (const UserPriorityTagBase &other)
virtual int	getUserPriority () const
virtual void	setUserPriority (int userPriority)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const UserPriorityInd &)=delete
Protected Member Functions inherited from inet::UserPriorityTagBase
bool	operator== (const UserPriorityTagBase &)=delete

Private Member Functions
void	copy (const UserPriorityInd &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::UserPriorityTagBase
int	userPriority = -1

Detailed Description

Class generated from inet/linklayer/common/UserPriorityTag.msg:33 by opp_msgtool.

//
// This indication specifies the user priority that was used to receive the packet.
// It may be present on a packet from the mac protocol to the application.
//
class UserPriorityInd extends UserPriorityTagBase
{
}

Constructor & Destructor Documentation

UserPriorityInd() [1/2]

inet::UserPriorityInd::UserPriorityInd

(

)

UserPriorityInd() [2/2]

inet::UserPriorityInd::UserPriorityInd

(

const UserPriorityInd &

other

)

~UserPriorityInd()

virtual inet::UserPriorityInd::~UserPriorityInd ( )

virtual

Member Function Documentation

copy()

void inet::UserPriorityInd::copy ( const UserPriorityInd &  other )

private

dup()

virtual UserPriorityInd* inet::UserPriorityInd::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::UserPriorityTagBase.

{return new UserPriorityInd(*this);}

operator=()

UserPriorityInd& inet::UserPriorityInd::operator=

(

const UserPriorityInd &

other

)

operator==()

bool inet::UserPriorityInd::operator== ( const UserPriorityInd &  )

protecteddelete

parsimPack()

virtual void inet::UserPriorityInd::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::UserPriorityTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::UserPriorityInd::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::UserPriorityTagBase.

Referenced by inet::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• UserPriorityTag_m.h
