inet::UdpVideoStreamClient Class Reference

A "Realtime" VideoStream client application. More...

#include <UdpVideoStreamClient.h>

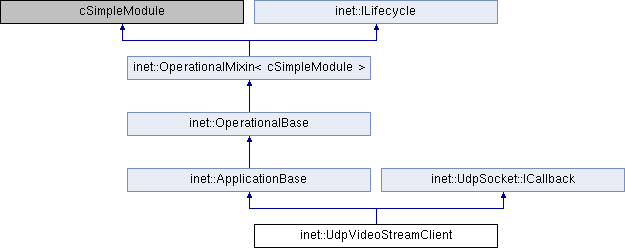

Inheritance diagram for inet::UdpVideoStreamClient:

Public Member Functions
	UdpVideoStreamClient ()
virtual	~UdpVideoStreamClient ()
Public Member Functions inherited from inet::ApplicationBase
	ApplicationBase ()
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Public Member Functions inherited from inet::UdpSocket::ICallback
virtual	~ICallback ()

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	finish () override
virtual void	handleMessageWhenUp (cMessage *msg) override
virtual void	requestStream ()
virtual void	receiveStream (Packet *msg)
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual void	handleStopOperation (LifecycleOperation *operation) override
virtual void	handleCrashOperation (LifecycleOperation *operation) override
virtual void	socketDataArrived (UdpSocket *socket, Packet *packet) override
	Notifies about data arrival, packet ownership is transferred to the callee. More...
virtual void	socketErrorArrived (UdpSocket *socket, Indication *indication) override
	Notifies about error indication arrival, indication ownership is transferred to the callee. More...
virtual void	socketClosed (UdpSocket *socket) override
	Notifies about socket closed, indication ownership is transferred to the callee. More...
Protected Member Functions inherited from inet::ApplicationBase
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Protected Attributes
UdpSocket	socket
cMessage *	selfMsg = nullptr
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Additional Inherited Members
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Detailed Description

A "Realtime" VideoStream client application.

Basic video stream application. Clients connect to server and get a stream of video back.

Constructor & Destructor Documentation

UdpVideoStreamClient()

inet::UdpVideoStreamClient::UdpVideoStreamClient ( )

inline

{}

~UdpVideoStreamClient()

virtual inet::UdpVideoStreamClient::~UdpVideoStreamClient ( )

inlinevirtual

{ cancelAndDelete(selfMsg); }

Member Function Documentation

finish()

void inet::UdpVideoStreamClient::finish ( )

overrideprotectedvirtual

{
    ApplicationBase::finish();
}

handleCrashOperation()

void inet::UdpVideoStreamClient::handleCrashOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    cancelEvent(selfMsg);
    if (operation->getRootModule() != getContainingNode(this)) // closes socket when the application crashed only
        socket.destroy(); // TODO  in real operating systems, program crash detected by OS and OS closes sockets of crashed programs.
}

handleMessageWhenUp()

void inet::UdpVideoStreamClient::handleMessageWhenUp ( cMessage *  msg )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    if (msg->isSelfMessage()) {
        requestStream();
    }
    else
        socket.processMessage(msg);
}

handleStartOperation()

void inet::UdpVideoStreamClient::handleStartOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    simtime_t startTimePar = par("startTime");
    simtime_t startTime = std::max(startTimePar, simTime());
    scheduleAt(startTime, selfMsg);
}

handleStopOperation()

void inet::UdpVideoStreamClient::handleStopOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    cancelEvent(selfMsg);
    socket.close();
    delayActiveOperationFinish(par("stopOperationTimeout"));
}

initialize()

void inet::UdpVideoStreamClient::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

{
    ApplicationBase::initialize(stage);

    if (stage == INITSTAGE_LOCAL) {
        selfMsg = new cMessage("UDPVideoStreamStart");
    }
}

numInitStages()

virtual int inet::UdpVideoStreamClient::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

receiveStream()

void inet::UdpVideoStreamClient::receiveStream ( Packet *  msg )

protectedvirtual

{
    EV_INFO << "Video stream packet: " << UdpSocket::getReceivedPacketInfo(pk) << endl;
    emit(packetReceivedSignal, pk);
    delete pk;
}

Referenced by socketDataArrived().

requestStream()

void inet::UdpVideoStreamClient::requestStream ( )

protectedvirtual

{
    int svrPort = par("serverPort");
    int localPort = par("localPort");
    const char *address = par("serverAddress");
    L3Address svrAddr = L3AddressResolver().resolve(address);

    if (svrAddr.isUnspecified()) {
        EV_ERROR << "Server address is unspecified, skip sending video stream request\n";
        return;
    }

    EV_INFO << "Requesting video stream from " << svrAddr << ":" << svrPort << "\n";

    socket.setOutputGate(gate("socketOut"));
    socket.bind(localPort);
    socket.setCallback(this);

    Packet *pk = new Packet("VideoStrmReq");
    const auto& payload = makeShared<ByteCountChunk>(B(1)); // FIXME set packet length
    pk->insertAtBack(payload);
    socket.sendTo(pk, svrAddr, svrPort);
}

Referenced by handleMessageWhenUp().

socketClosed()

void inet::UdpVideoStreamClient::socketClosed ( UdpSocket *  socket )

overrideprotectedvirtual

Notifies about socket closed, indication ownership is transferred to the callee.

Implements inet::UdpSocket::ICallback.

{
    if (operationalState == State::STOPPING_OPERATION)
        startActiveOperationExtraTimeOrFinish(par("stopOperationExtraTime"));
}

socketDataArrived()

void inet::UdpVideoStreamClient::socketDataArrived ( UdpSocket *  socket, Packet *  packet  )

overrideprotectedvirtual

Notifies about data arrival, packet ownership is transferred to the callee.

Implements inet::UdpSocket::ICallback.

{
    // process incoming packet
    receiveStream(packet);
}

socketErrorArrived()

void inet::UdpVideoStreamClient::socketErrorArrived ( UdpSocket *  socket, Indication *  indication  )

overrideprotectedvirtual

Notifies about error indication arrival, indication ownership is transferred to the callee.

Implements inet::UdpSocket::ICallback.

{
    EV_WARN << "Ignoring UDP error report " << indication->getName() << endl;
    delete indication;
}

Member Data Documentation

selfMsg

cMessage* inet::UdpVideoStreamClient::selfMsg = nullptr

protected

Referenced by handleCrashOperation(), handleStartOperation(), handleStopOperation(), and initialize().

socket

UdpSocket inet::UdpVideoStreamClient::socket

protected

Referenced by handleCrashOperation(), handleMessageWhenUp(), handleStopOperation(), and requestStream().

---

The documentation for this class was generated from the following files:

• UdpVideoStreamClient.h
• UdpVideoStreamClient.cc
