inet::UdpSink Class Reference

Consumes and prints packets received from the Udp module. More...

#include <UdpSink.h>

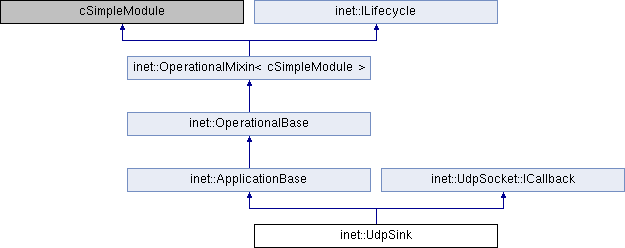

Inheritance diagram for inet::UdpSink:

Public Member Functions
	UdpSink ()
virtual	~UdpSink ()
Public Member Functions inherited from inet::ApplicationBase
	ApplicationBase ()
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Public Member Functions inherited from inet::UdpSocket::ICallback
virtual	~ICallback ()

Protected Types
enum	SelfMsgKinds { START = 1, STOP }
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Protected Member Functions
virtual void	processPacket (Packet *msg)
virtual void	setSocketOptions ()
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessageWhenUp (cMessage *msg) override
virtual void	finish () override
virtual void	refreshDisplay () const override
virtual void	socketDataArrived (UdpSocket *socket, Packet *packet) override
	Notifies about data arrival, packet ownership is transferred to the callee. More...
virtual void	socketErrorArrived (UdpSocket *socket, Indication *indication) override
	Notifies about error indication arrival, indication ownership is transferred to the callee. More...
virtual void	socketClosed (UdpSocket *socket) override
	Notifies about socket closed, indication ownership is transferred to the callee. More...
virtual void	processStart ()
virtual void	processStop ()
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual void	handleStopOperation (LifecycleOperation *operation) override
virtual void	handleCrashOperation (LifecycleOperation *operation) override
Protected Member Functions inherited from inet::ApplicationBase
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Protected Attributes
UdpSocket	socket
int	localPort = -1
L3Address	multicastGroup
simtime_t	startTime
simtime_t	stopTime
cMessage *	selfMsg = nullptr
int	numReceived = 0
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Detailed Description

Consumes and prints packets received from the Udp module.

See NED for more info.

Member Enumeration Documentation

SelfMsgKinds

enum inet::UdpSink::SelfMsgKinds

protected

Enumerator
START
STOP

{ START = 1, STOP };

Constructor & Destructor Documentation

UdpSink()

inet::UdpSink::UdpSink ( )

inline

{}

~UdpSink()

inet::UdpSink::~UdpSink ( )

virtual

{
    cancelAndDelete(selfMsg);
}

Member Function Documentation

finish()

void inet::UdpSink::finish ( )

overrideprotectedvirtual

{
    ApplicationBase::finish();
    EV_INFO << getFullPath() << ": received " << numReceived << " packets\n";
}

handleCrashOperation()

void inet::UdpSink::handleCrashOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    cancelEvent(selfMsg);
    if (operation->getRootModule() != getContainingNode(this)) { // closes socket when the application crashed only
        if (!multicastGroup.isUnspecified())
            socket.leaveMulticastGroup(multicastGroup); // FIXME should be done by socket.close()
        socket.destroy(); // TODO  in real operating systems, program crash detected by OS and OS closes sockets of crashed programs.
    }
}

handleMessageWhenUp()

void inet::UdpSink::handleMessageWhenUp ( cMessage *  msg )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    if (msg->isSelfMessage()) {
        ASSERT(msg == selfMsg);
        switch (selfMsg->getKind()) {
            case START:
                processStart();
                break;

            case STOP:
                processStop();
                break;

            default:
                throw cRuntimeError("Invalid kind %d in self message", (int)selfMsg->getKind());
        }
    }
    else if (msg->arrivedOn("socketIn"))
        socket.processMessage(msg);
    else
        throw cRuntimeError("Unknown incoming gate: '%s'", msg->getArrivalGate()->getFullName());
}

handleStartOperation()

void inet::UdpSink::handleStartOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    simtime_t start = std::max(startTime, simTime());
    if ((stopTime < SIMTIME_ZERO) || (start < stopTime) || (start == stopTime && startTime == stopTime)) {
        selfMsg->setKind(START);
        scheduleAt(start, selfMsg);
    }
}

handleStopOperation()

void inet::UdpSink::handleStopOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    cancelEvent(selfMsg);
    if (!multicastGroup.isUnspecified())
        socket.leaveMulticastGroup(multicastGroup); // FIXME should be done by socket.close()
    socket.close();
    delayActiveOperationFinish(par("stopOperationTimeout"));
}

initialize()

void inet::UdpSink::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

{
    ApplicationBase::initialize(stage);

    if (stage == INITSTAGE_LOCAL) {
        numReceived = 0;
        WATCH(numReceived);

        localPort = par("localPort");
        startTime = par("startTime");
        stopTime = par("stopTime");
        if (stopTime >= SIMTIME_ZERO && stopTime < startTime)
            throw cRuntimeError("Invalid startTime/stopTime parameters");
        selfMsg = new cMessage("UDPSinkTimer");
    }
}

numInitStages()

virtual int inet::UdpSink::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

processPacket()

void inet::UdpSink::processPacket ( Packet *  msg )

protectedvirtual

{
    EV_INFO << "Received packet: " << UdpSocket::getReceivedPacketInfo(pk) << endl;
    emit(packetReceivedSignal, pk);
    delete pk;

    numReceived++;
}

Referenced by socketDataArrived().

processStart()

void inet::UdpSink::processStart ( )

protectedvirtual

{
    socket.setOutputGate(gate("socketOut"));
    socket.bind(localPort);
    setSocketOptions();

    if (stopTime >= SIMTIME_ZERO) {
        selfMsg->setKind(STOP);
        scheduleAt(stopTime, selfMsg);
    }
}

Referenced by handleMessageWhenUp().

processStop()

void inet::UdpSink::processStop ( )

protectedvirtual

{
    if (!multicastGroup.isUnspecified())
        socket.leaveMulticastGroup(multicastGroup); // FIXME should be done by socket.close()
    socket.close();
}

Referenced by handleMessageWhenUp().

refreshDisplay()

void inet::UdpSink::refreshDisplay ( ) const

overrideprotectedvirtual

{
    ApplicationBase::refreshDisplay();

    char buf[50];
    sprintf(buf, "rcvd: %d pks", numReceived);
    getDisplayString().setTagArg("t", 0, buf);
}

setSocketOptions()

void inet::UdpSink::setSocketOptions ( )

protectedvirtual

{
    bool receiveBroadcast = par("receiveBroadcast");
    if (receiveBroadcast)
        socket.setBroadcast(true);

    MulticastGroupList mgl = getModuleFromPar<IInterfaceTable>(par("interfaceTableModule"), this)->collectMulticastGroups();
    socket.joinLocalMulticastGroups(mgl);

    // join multicastGroup
    const char *groupAddr = par("multicastGroup");
    multicastGroup = L3AddressResolver().resolve(groupAddr);
    if (!multicastGroup.isUnspecified()) {
        if (!multicastGroup.isMulticast())
            throw cRuntimeError("Wrong multicastGroup setting: not a multicast address: %s", groupAddr);
        socket.joinMulticastGroup(multicastGroup);
    }
    socket.setCallback(this);
}

Referenced by processStart().

socketClosed()

void inet::UdpSink::socketClosed ( UdpSocket *  socket )

overrideprotectedvirtual

Notifies about socket closed, indication ownership is transferred to the callee.

Implements inet::UdpSocket::ICallback.

{
    if (operationalState == State::STOPPING_OPERATION)
        startActiveOperationExtraTimeOrFinish(par("stopOperationExtraTime"));
}

socketDataArrived()

void inet::UdpSink::socketDataArrived ( UdpSocket *  socket, Packet *  packet  )

overrideprotectedvirtual

Notifies about data arrival, packet ownership is transferred to the callee.

Implements inet::UdpSocket::ICallback.

{
    // process incoming packet
    processPacket(packet);
}

socketErrorArrived()

void inet::UdpSink::socketErrorArrived ( UdpSocket *  socket, Indication *  indication  )

overrideprotectedvirtual

Notifies about error indication arrival, indication ownership is transferred to the callee.

Implements inet::UdpSocket::ICallback.

{
    EV_WARN << "Ignoring UDP error report " << indication->getName() << endl;
    delete indication;
}

Member Data Documentation

localPort

int inet::UdpSink::localPort = -1

protected

Referenced by initialize(), and processStart().

multicastGroup

L3Address inet::UdpSink::multicastGroup

protected

Referenced by handleCrashOperation(), handleStopOperation(), processStop(), and setSocketOptions().

numReceived

int inet::UdpSink::numReceived = 0

protected

Referenced by finish(), initialize(), processPacket(), and refreshDisplay().

selfMsg

cMessage* inet::UdpSink::selfMsg = nullptr

protected

Referenced by handleCrashOperation(), handleMessageWhenUp(), handleStartOperation(), handleStopOperation(), initialize(), processStart(), and ~UdpSink().

socket

UdpSocket inet::UdpSink::socket

protected

Referenced by handleCrashOperation(), handleMessageWhenUp(), handleStopOperation(), processStart(), processStop(), and setSocketOptions().

startTime

simtime_t inet::UdpSink::startTime

protected

Referenced by handleStartOperation(), and initialize().

stopTime

simtime_t inet::UdpSink::stopTime

protected

Referenced by handleStartOperation(), initialize(), and processStart().

---

The documentation for this class was generated from the following files:

• UdpSink.h
• UdpSink.cc
