inet::TransportProtocolInd Class Reference

Class generated from inet/common/ProtocolTag.msg:180 by opp_msgtool. More...

#include <ProtocolTag_m.h>

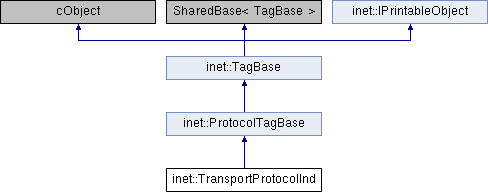

Inheritance diagram for inet::TransportProtocolInd:

Public Member Functions
	TransportProtocolInd ()
	TransportProtocolInd (const TransportProtocolInd &other)
virtual	~TransportProtocolInd ()
TransportProtocolInd &	operator= (const TransportProtocolInd &other)
virtual TransportProtocolInd *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual const ChunkPtr &	getTransportProtocolHeader () const
virtual ChunkPtr &	getTransportProtocolHeaderForUpdate ()
virtual void	setTransportProtocolHeader (const ChunkPtr &transportProtocolHeader)
Public Member Functions inherited from inet::ProtocolTagBase
	ProtocolTagBase ()
	ProtocolTagBase (const ProtocolTagBase &other)
virtual	~ProtocolTagBase ()
ProtocolTagBase &	operator= (const ProtocolTagBase &other)
virtual const Protocol *	findProtocol () const
virtual void	setProtocol (const Protocol *protocol)
const Protocol *	getProtocol () const
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const TransportProtocolInd &)=delete
Protected Member Functions inherited from inet::ProtocolTagBase
bool	operator== (const ProtocolTagBase &)=delete

Protected Attributes
ChunkPtr	transportProtocolHeader
Protected Attributes inherited from inet::ProtocolTagBase
const Protocol *	protocol = nullptr

Private Member Functions
void	copy (const TransportProtocolInd &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/common/ProtocolTag.msg:180 by opp_msgtool.

//
// This indication specifies the transport protocol that was used to receive
// the packet. It may be present from the transport protocol to the application
// and from the transport protocol to the physical layer.
//
class TransportProtocolInd extends ProtocolTagBase
{
    ChunkPtr transportProtocolHeader;
}

Constructor & Destructor Documentation

TransportProtocolInd() [1/2]

inet::TransportProtocolInd::TransportProtocolInd

(

)

TransportProtocolInd() [2/2]

inet::TransportProtocolInd::TransportProtocolInd

(

const TransportProtocolInd &

other

)

~TransportProtocolInd()

virtual inet::TransportProtocolInd::~TransportProtocolInd ( )

virtual

Member Function Documentation

copy()

void inet::TransportProtocolInd::copy ( const TransportProtocolInd &  other )

private

dup()

virtual TransportProtocolInd* inet::TransportProtocolInd::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::ProtocolTagBase.

{return new TransportProtocolInd(*this);}

getTransportProtocolHeader()

virtual const ChunkPtr& inet::TransportProtocolInd::getTransportProtocolHeader ( ) const

virtual

Referenced by inet::findTransportProtocolHeader().

getTransportProtocolHeaderForUpdate()

virtual ChunkPtr& inet::TransportProtocolInd::getTransportProtocolHeaderForUpdate ( )

inlinevirtual

{ return const_cast<ChunkPtr&>(const_cast<TransportProtocolInd*>(this)->getTransportProtocolHeader());}

operator=()

TransportProtocolInd& inet::TransportProtocolInd::operator=

(

const TransportProtocolInd &

other

)

operator==()

bool inet::TransportProtocolInd::operator== ( const TransportProtocolInd &  )

protecteddelete

parsimPack()

virtual void inet::TransportProtocolInd::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::ProtocolTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::TransportProtocolInd::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::ProtocolTagBase.

Referenced by inet::doParsimUnpacking().

setTransportProtocolHeader()

virtual void inet::TransportProtocolInd::setTransportProtocolHeader ( const ChunkPtr &  transportProtocolHeader )

virtual

Member Data Documentation

transportProtocolHeader

ChunkPtr inet::TransportProtocolInd::transportProtocolHeader

protected

---

The documentation for this class was generated from the following file:

• ProtocolTag_m.h
