inet::TosTagBase Class Reference

Class generated from inet/networklayer/common/TosTag.msg:16 by opp_msgtool. More...

#include <TosTag_m.h>

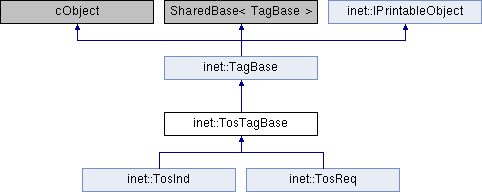

Inheritance diagram for inet::TosTagBase:

Public Member Functions
	TosTagBase ()
	TosTagBase (const TosTagBase &other)
virtual	~TosTagBase ()
TosTagBase &	operator= (const TosTagBase &other)
virtual TosTagBase *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual int	getTos () const
virtual void	setTos (int tos)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const TosTagBase &)=delete

Protected Attributes
int	tos = -1

Private Member Functions
void	copy (const TosTagBase &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/networklayer/common/TosTag.msg:16 by opp_msgtool.

//
// This is an abstract base class that should not be directly added as a tag.
//
class TosTagBase extends TagBase
{
    int tos = -1; // differentiated services code point
}

Constructor & Destructor Documentation

TosTagBase() [1/2]

inet::TosTagBase::TosTagBase

(

)

TosTagBase() [2/2]

inet::TosTagBase::TosTagBase

(

const TosTagBase &

other

)

~TosTagBase()

virtual inet::TosTagBase::~TosTagBase ( )

virtual

Member Function Documentation

copy()

void inet::TosTagBase::copy ( const TosTagBase &  other )

private

dup()

virtual TosTagBase* inet::TosTagBase::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::TosInd, and inet::TosReq.

{return new TosTagBase(*this);}

getTos()

virtual int inet::TosTagBase::getTos ( ) const

virtual

operator=()

TosTagBase& inet::TosTagBase::operator=

(

const TosTagBase &

other

)

operator==()

bool inet::TosTagBase::operator== ( const TosTagBase &  )

protecteddelete

parsimPack()

virtual void inet::TosTagBase::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::TosInd, and inet::TosReq.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::TosTagBase::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::TosInd, and inet::TosReq.

Referenced by inet::doParsimUnpacking().

setTos()

virtual void inet::TosTagBase::setTos ( int  tos )

virtual

Referenced by inet::tcp::TcpConnection::sendToIP().

Member Data Documentation

tos

int inet::TosTagBase::tos = -1

protected

---

The documentation for this class was generated from the following file:

• TosTag_m.h
