inet::TlvOptionBase Class Reference

Class generated from inet/common/TlvOptions.msg:12 by opp_msgtool. More...

#include <TlvOptions_m.h>

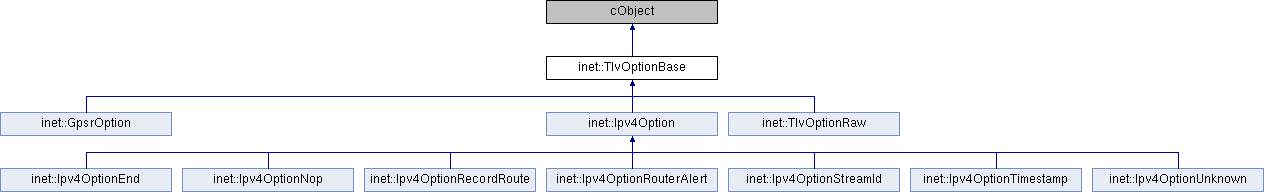

Inheritance diagram for inet::TlvOptionBase:

Public Member Functions
	TlvOptionBase ()
	TlvOptionBase (const TlvOptionBase &other)
virtual	~TlvOptionBase ()
TlvOptionBase &	operator= (const TlvOptionBase &other)
virtual TlvOptionBase *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual short	getType () const
virtual void	setType (short type)
virtual short	getLength () const
virtual void	setLength (short length)

Protected Member Functions
bool	operator== (const TlvOptionBase &)=delete

Protected Attributes
short	type = -1
short	length = 0

Private Member Functions
void	copy (const TlvOptionBase &other)

Detailed Description

Class generated from inet/common/TlvOptions.msg:12 by opp_msgtool.

class TlvOptionBase extends cObject
{
    @packetData;
    short type = -1;
    short length = 0;   // total length of option
}

Constructor & Destructor Documentation

TlvOptionBase() [1/2]

inet::TlvOptionBase::TlvOptionBase

(

)

TlvOptionBase() [2/2]

inet::TlvOptionBase::TlvOptionBase

(

const TlvOptionBase &

other

)

~TlvOptionBase()

virtual inet::TlvOptionBase::~TlvOptionBase ( )

virtual

Member Function Documentation

copy()

void inet::TlvOptionBase::copy ( const TlvOptionBase &  other )

private

dup()

virtual TlvOptionBase* inet::TlvOptionBase::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::Ipv4OptionUnknown, inet::Ipv4OptionRouterAlert, inet::Ipv4OptionStreamId, inet::Ipv4OptionTimestamp, inet::Ipv4OptionRecordRoute, inet::Ipv4OptionEnd, inet::Ipv4OptionNop, inet::Ipv4Option, inet::GpsrOption, and inet::TlvOptionRaw.

{return new TlvOptionBase(*this);}

getLength()

virtual short inet::TlvOptionBase::getLength ( ) const

virtual

Referenced by inet::TlvOptions::getLength(), inet::Ipv4HeaderSerializer::serialize(), and inet::Ipv4HeaderSerializer::serializeOption().

getType()

virtual short inet::TlvOptionBase::getType ( ) const

virtual

Referenced by inet::Ipv4HeaderSerializer::serializeOption().

operator=()

TlvOptionBase& inet::TlvOptionBase::operator=

(

const TlvOptionBase &

other

)

operator==()

bool inet::TlvOptionBase::operator== ( const TlvOptionBase &  )

protecteddelete

parsimPack()

virtual void inet::TlvOptionBase::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::Ipv4OptionUnknown, inet::Ipv4OptionRouterAlert, inet::Ipv4OptionStreamId, inet::Ipv4OptionTimestamp, inet::Ipv4OptionRecordRoute, inet::Ipv4OptionEnd, inet::Ipv4OptionNop, inet::Ipv4Option, inet::GpsrOption, and inet::TlvOptionRaw.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::TlvOptionBase::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::Ipv4OptionUnknown, inet::Ipv4OptionRouterAlert, inet::Ipv4OptionStreamId, inet::Ipv4OptionTimestamp, inet::Ipv4OptionRecordRoute, inet::Ipv4OptionEnd, inet::Ipv4OptionNop, inet::Ipv4Option, inet::GpsrOption, and inet::TlvOptionRaw.

Referenced by inet::doParsimUnpacking().

setLength()

virtual void inet::TlvOptionBase::setLength ( short  length )

virtual

Referenced by inet::Gpsr::createGpsrOption().

setType()

virtual void inet::TlvOptionBase::setType ( short  type )

virtual

Referenced by inet::Gpsr::setGpsrOptionOnNetworkDatagram().

Member Data Documentation

length

short inet::TlvOptionBase::length = 0

protected

type

short inet::TlvOptionBase::type = -1

protected

---

The documentation for this class was generated from the following file:

• TlvOptions_m.h
