inet::TcpServerThreadBase Class Reference

Abstract base class for server processes to be used with TcpServerHostApp. More...

#include <TcpServerHostApp.h>

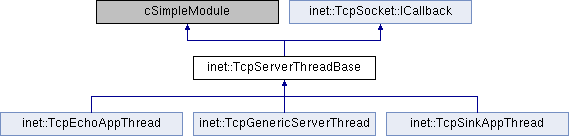

Inheritance diagram for inet::TcpServerThreadBase:

Public Member Functions
	TcpServerThreadBase ()
virtual	~TcpServerThreadBase ()
virtual void	init (TcpServerHostApp *hostmodule, TcpSocket *socket)
virtual TcpSocket *	getSocket ()
virtual TcpServerHostApp *	getHostModule ()
virtual void	established ()=0
	Called when connection is established. More...
virtual void	dataArrived (Packet *msg, bool urgent)=0
virtual void	timerExpired (cMessage *timer)=0
virtual void	peerClosed ()
virtual void	failure (int code)
virtual void	statusArrived (TcpStatusInfo *status)
Public Member Functions inherited from inet::TcpSocket::ICallback
virtual	~ICallback ()

Protected Member Functions
virtual void	socketDataArrived (TcpSocket *socket, Packet *msg, bool urgent) override
	Notifies about data arrival, packet ownership is transferred to the callee. More...
virtual void	socketAvailable (TcpSocket *socket, TcpAvailableInfo *availableInfo) override
virtual void	socketEstablished (TcpSocket *socket) override
virtual void	socketPeerClosed (TcpSocket *socket) override
virtual void	socketClosed (TcpSocket *socket) override
virtual void	socketFailure (TcpSocket *socket, int code) override
virtual void	socketStatusArrived (TcpSocket *socket, TcpStatusInfo *status) override
virtual void	socketDeleted (TcpSocket *socket) override
virtual void	refreshDisplay () const override

Protected Attributes
TcpServerHostApp *	hostmod
TcpSocket *	sock

Detailed Description

Abstract base class for server processes to be used with TcpServerHostApp.

Subclasses need to be registered using the Register_Class() macro.

See also

TcpServerHostApp

Constructor & Destructor Documentation

TcpServerThreadBase()

inet::TcpServerThreadBase::TcpServerThreadBase ( )

inline

{ sock = nullptr; hostmod = nullptr; }

~TcpServerThreadBase()

virtual inet::TcpServerThreadBase::~TcpServerThreadBase ( )

inlinevirtual

{ delete sock; }

Member Function Documentation

dataArrived()

virtual void inet::TcpServerThreadBase::dataArrived ( Packet *  msg, bool  urgent  )

pure virtual

Implemented in inet::TcpEchoAppThread, inet::TcpSinkAppThread, and inet::TcpGenericServerThread.

established()

virtual void inet::TcpServerThreadBase::established ( )

pure virtual

Called when connection is established.

To be redefined.

Implemented in inet::TcpEchoAppThread, inet::TcpSinkAppThread, and inet::TcpGenericServerThread.

failure()

virtual void inet::TcpServerThreadBase::failure ( int  code )

inlinevirtual

{ hostmod->removeThread(this); }

getHostModule()

virtual TcpServerHostApp* inet::TcpServerThreadBase::getHostModule ( )

inlinevirtual

{ return hostmod; }

getSocket()

virtual TcpSocket* inet::TcpServerThreadBase::getSocket ( )

inlinevirtual

{ return sock; }

Referenced by inet::TcpGenericServerThread::dataArrived(), inet::TcpServerHostApp::removeThread(), and inet::TcpServerHostApp::threadClosed().

init()

virtual void inet::TcpServerThreadBase::init ( TcpServerHostApp *  hostmodule, TcpSocket *  socket  )

inlinevirtual

Reimplemented in inet::TcpEchoAppThread, and inet::TcpSinkAppThread.

{ hostmod = hostmodule; sock = socket; }

Referenced by inet::TcpEchoAppThread::init(), inet::TcpSinkAppThread::init(), and inet::TcpServerHostApp::socketAvailable().

peerClosed()

virtual void inet::TcpServerThreadBase::peerClosed ( )

inlinevirtual

{ getSocket()->close(); }

refreshDisplay()

void inet::TcpServerThreadBase::refreshDisplay ( ) const

overrideprotectedvirtual

Reimplemented in inet::TcpSinkAppThread.

{
    getDisplayString().setTagArg("t", 0, TcpSocket::stateName(sock->getState()));
}

socketAvailable()

virtual void inet::TcpServerThreadBase::socketAvailable ( TcpSocket *  socket, TcpAvailableInfo *  availableInfo  )

inlineoverrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

{ socket->accept(availableInfo->getNewSocketId()); }

socketClosed()

virtual void inet::TcpServerThreadBase::socketClosed ( TcpSocket *  socket )

inlineoverrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

{ hostmod->threadClosed(this); }

socketDataArrived()

virtual void inet::TcpServerThreadBase::socketDataArrived ( TcpSocket *  socket, Packet *  packet, bool  urgent  )

inlineoverrideprotectedvirtual

Notifies about data arrival, packet ownership is transferred to the callee.

Implements inet::TcpSocket::ICallback.

{ dataArrived(msg, urgent); }

socketDeleted()

void inet::TcpServerThreadBase::socketDeleted ( TcpSocket *  socket )

overrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

{
    if (socket == sock) {
        sock = nullptr;
        hostmod->socketDeleted(socket);
    }
}

socketEstablished()

virtual void inet::TcpServerThreadBase::socketEstablished ( TcpSocket *  socket )

inlineoverrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

{ established(); }

socketFailure()

virtual void inet::TcpServerThreadBase::socketFailure ( TcpSocket *  socket, int  code  )

inlineoverrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

{ failure(code); }

socketPeerClosed()

virtual void inet::TcpServerThreadBase::socketPeerClosed ( TcpSocket *  socket )

inlineoverrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

{ peerClosed(); }

socketStatusArrived()

virtual void inet::TcpServerThreadBase::socketStatusArrived ( TcpSocket *  socket, TcpStatusInfo *  status  )

inlineoverrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

{ statusArrived(status); }

statusArrived()

virtual void inet::TcpServerThreadBase::statusArrived ( TcpStatusInfo *  status )

inlinevirtual

{}

timerExpired()

virtual void inet::TcpServerThreadBase::timerExpired ( cMessage *  timer )

pure virtual

Implemented in inet::TcpEchoAppThread, inet::TcpSinkAppThread, and inet::TcpGenericServerThread.

Referenced by inet::TcpServerHostApp::handleMessageWhenUp().

Member Data Documentation

hostmod

TcpServerHostApp* inet::TcpServerThreadBase::hostmod

protected

Referenced by socketDeleted().

sock

TcpSocket* inet::TcpServerThreadBase::sock

protected

Referenced by inet::TcpEchoAppThread::dataArrived(), inet::TcpSinkAppThread::refreshDisplay(), refreshDisplay(), and socketDeleted().

---

The documentation for this class was generated from the following files:

• TcpServerHostApp.h
• TcpServerHostApp.cc
