inet::TcpCommand Class Reference

Class generated from inet/transportlayer/contract/tcp/TcpCommand.msg:78 by opp_msgtool. More...

#include <TcpCommand_m.h>

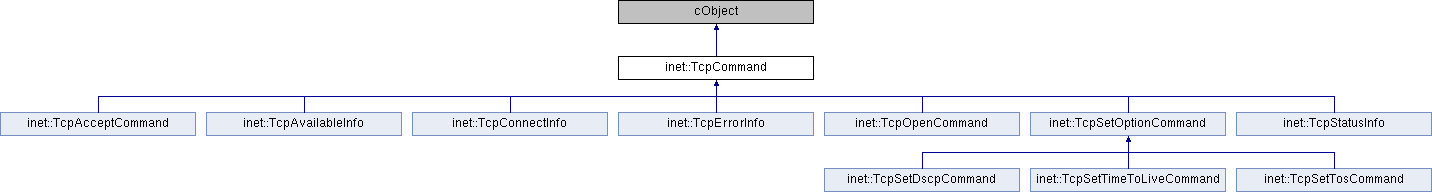

Inheritance diagram for inet::TcpCommand:

Public Member Functions
	TcpCommand ()
	TcpCommand (const TcpCommand &other)
virtual	~TcpCommand ()
TcpCommand &	operator= (const TcpCommand &other)
virtual TcpCommand *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual int	getUserId () const
virtual void	setUserId (int userId)

Protected Member Functions
bool	operator== (const TcpCommand &)=delete

Protected Attributes
int	userId = -1

Private Member Functions
void	copy (const TcpCommand &other)

Detailed Description

Class generated from inet/transportlayer/contract/tcp/TcpCommand.msg:78 by opp_msgtool.

//
// Control info for TCP connections. This class is to be set as control info
// (see cMessage::setControlInfo()) on all messages exchanged between TCP and
// application, in both directions. Some commands and indications
// (TCP_C_OPEN_xxx, TCP_I_STATUS) use subclasses.
//
// connId identifies the connection locally within the application (internally,
// TCP uses the (app gate index, connId) pair to identify the socket).
// connId is to be chosen by the application in the open command.
//
//# TODO explain userId
//
// @see ~TcpCommandCode, ~TcpStatusInd, ~TcpOpenCommand, ~TcpStatusInfo, ~ITcp
//
class TcpCommand extends cObject
{
    int userId = -1;   // id than can be freely used by the app
}

Constructor & Destructor Documentation

TcpCommand() [1/2]

inet::TcpCommand::TcpCommand

(

)

TcpCommand() [2/2]

inet::TcpCommand::TcpCommand

(

const TcpCommand &

other

)

~TcpCommand()

virtual inet::TcpCommand::~TcpCommand ( )

virtual

Member Function Documentation

copy()

void inet::TcpCommand::copy ( const TcpCommand &  other )

private

dup()

virtual TcpCommand* inet::TcpCommand::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::TcpStatusInfo, inet::TcpConnectInfo, inet::TcpAvailableInfo, inet::TcpSetTosCommand, inet::TcpSetDscpCommand, inet::TcpSetTimeToLiveCommand, inet::TcpSetOptionCommand, inet::TcpAcceptCommand, inet::TcpOpenCommand, and inet::TcpErrorInfo.

{return new TcpCommand(*this);}

getUserId()

virtual int inet::TcpCommand::getUserId ( ) const

virtual

Referenced by inet::NetPerfMeter::handleMessage(), and inet::tcp::TcpConnection::process_QUEUE_BYTES_LIMIT().

operator=()

TcpCommand& inet::TcpCommand::operator=

(

const TcpCommand &

other

)

operator==()

bool inet::TcpCommand::operator== ( const TcpCommand &  )

protecteddelete

parsimPack()

virtual void inet::TcpCommand::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::TcpStatusInfo, inet::TcpConnectInfo, inet::TcpAvailableInfo, inet::TcpSetTosCommand, inet::TcpSetDscpCommand, inet::TcpSetTimeToLiveCommand, inet::TcpSetOptionCommand, inet::TcpAcceptCommand, inet::TcpOpenCommand, and inet::TcpErrorInfo.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::TcpCommand::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::TcpStatusInfo, inet::TcpConnectInfo, inet::TcpAvailableInfo, inet::TcpSetTosCommand, inet::TcpSetDscpCommand, inet::TcpSetTimeToLiveCommand, inet::TcpSetOptionCommand, inet::TcpAcceptCommand, inet::TcpOpenCommand, and inet::TcpErrorInfo.

Referenced by inet::doParsimUnpacking().

setUserId()

virtual void inet::TcpCommand::setUserId ( int  userId )

virtual

Referenced by inet::tcp::TcpConnection::sendIndicationToApp(), and inet::NetPerfMeter::sendTCPQueueRequest().

Member Data Documentation

userId

int inet::TcpCommand::userId = -1

protected

---

The documentation for this class was generated from the following file:

• TcpCommand_m.h
