inet::TcpAppBase Class Reference

Base class for clients app for TCP-based request-reply protocols or apps. More...

#include <TcpAppBase.h>

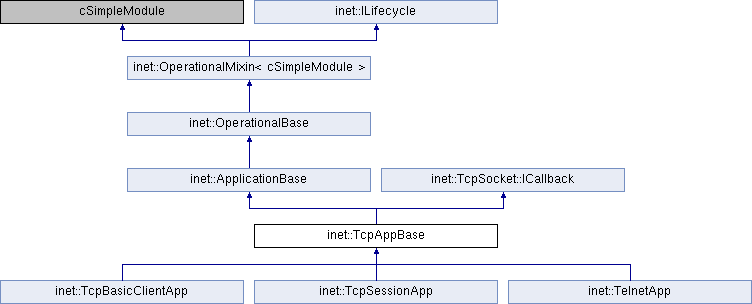

Inheritance diagram for inet::TcpAppBase:

Protected Member Functions
virtual void	initialize (int stage) override
virtual int	numInitStages () const override
virtual void	handleMessageWhenUp (cMessage *msg) override
virtual void	finish () override
virtual void	refreshDisplay () const override
virtual void	connect ()
virtual void	close ()
virtual void	sendPacket (Packet *pkt)
virtual void	handleTimer (cMessage *msg)=0
virtual void	socketDataArrived (TcpSocket *socket, Packet *msg, bool urgent) override
	Notifies about data arrival, packet ownership is transferred to the callee. More...
virtual void	socketAvailable (TcpSocket *socket, TcpAvailableInfo *availableInfo) override
virtual void	socketEstablished (TcpSocket *socket) override
virtual void	socketPeerClosed (TcpSocket *socket) override
virtual void	socketClosed (TcpSocket *socket) override
virtual void	socketFailure (TcpSocket *socket, int code) override
virtual void	socketStatusArrived (TcpSocket *socket, TcpStatusInfo *status) override
virtual void	socketDeleted (TcpSocket *socket) override
Protected Member Functions inherited from inet::ApplicationBase
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual void	handleStartOperation (LifecycleOperation *operation)=0
virtual void	handleStopOperation (LifecycleOperation *operation)=0
virtual void	handleCrashOperation (LifecycleOperation *operation)=0
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Protected Attributes
TcpSocket	socket
int	numSessions
int	numBroken
int	packetsSent
int	packetsRcvd
int	bytesSent
int	bytesRcvd
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Static Protected Attributes
static simsignal_t	connectSignal = registerSignal("connect")

Additional Inherited Members
Public Member Functions inherited from inet::ApplicationBase
	ApplicationBase ()
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Public Member Functions inherited from inet::TcpSocket::ICallback
virtual	~ICallback ()
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Detailed Description

Base class for clients app for TCP-based request-reply protocols or apps.

Handles a single session (and TCP connection) at a time.

It needs the following NED parameters: localAddress, localPort, connectAddress, connectPort.

Member Function Documentation

close()

void inet::TcpAppBase::close ( )

protectedvirtual

Reimplemented in inet::TcpBasicClientApp.

{
    EV_INFO << "issuing CLOSE command\n";
    socket.close();
    emit(connectSignal, -1L);
}

Referenced by inet::TcpBasicClientApp::close(), inet::TelnetApp::handleStopOperation(), inet::TcpSessionApp::handleStopOperation(), inet::TelnetApp::handleTimer(), inet::TcpSessionApp::handleTimer(), and socketPeerClosed().

connect()

void inet::TcpAppBase::connect ( )

protectedvirtual

{
    // we need a new connId if this is not the first connection
    socket.renewSocket();

    const char *localAddress = par("localAddress");
    int localPort = par("localPort");
    socket.bind(*localAddress ? L3AddressResolver().resolve(localAddress) : L3Address(), localPort);

    int timeToLive = par("timeToLive");
    if (timeToLive != -1)
        socket.setTimeToLive(timeToLive);

    int dscp = par("dscp");
    if (dscp != -1)
        socket.setDscp(dscp);

    int tos = par("tos");
    if (tos != -1)
        socket.setTos(tos);

    // connect
    const char *connectAddress = par("connectAddress");
    int connectPort = par("connectPort");

    L3Address destination;
    L3AddressResolver().tryResolve(connectAddress, destination);
    if (destination.isUnspecified()) {
        EV_ERROR << "Connecting to " << connectAddress << " port=" << connectPort << ": cannot resolve destination address\n";
    }
    else {
        EV_INFO << "Connecting to " << connectAddress << "(" << destination << ") port=" << connectPort << endl;

        socket.connect(destination, connectPort);

        numSessions++;
        emit(connectSignal, 1L);
    }
}

Referenced by inet::TelnetApp::handleTimer(), inet::TcpBasicClientApp::handleTimer(), and inet::TcpSessionApp::handleTimer().

finish()

void inet::TcpAppBase::finish ( )

overrideprotectedvirtual

Reimplemented in inet::TcpSessionApp.

{
    std::string modulePath = getFullPath();

    EV_INFO << modulePath << ": opened " << numSessions << " sessions\n";
    EV_INFO << modulePath << ": sent " << bytesSent << " bytes in " << packetsSent << " packets\n";
    EV_INFO << modulePath << ": received " << bytesRcvd << " bytes in " << packetsRcvd << " packets\n";
}

handleMessageWhenUp()

void inet::TcpAppBase::handleMessageWhenUp ( cMessage *  msg )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    if (msg->isSelfMessage())
        handleTimer(msg);
    else
        socket.processMessage(msg);
}

handleTimer()

virtual void inet::TcpAppBase::handleTimer ( cMessage *  msg )

protectedpure virtual

Implemented in inet::TcpSessionApp, inet::TcpBasicClientApp, and inet::TelnetApp.

Referenced by handleMessageWhenUp().

initialize()

void inet::TcpAppBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

Reimplemented in inet::TcpSessionApp, inet::TcpBasicClientApp, and inet::TelnetApp.

{
    ApplicationBase::initialize(stage);

    if (stage == INITSTAGE_LOCAL) {
        numSessions = numBroken = packetsSent = packetsRcvd = bytesSent = bytesRcvd = 0;

        WATCH(numSessions);
        WATCH(numBroken);
        WATCH(packetsSent);
        WATCH(packetsRcvd);
        WATCH(bytesSent);
        WATCH(bytesRcvd);
    }
    else if (stage == INITSTAGE_APPLICATION_LAYER) {
        // parameters
        const char *localAddress = par("localAddress");
        int localPort = par("localPort");
        socket.bind(*localAddress ? L3AddressResolver().resolve(localAddress) : L3Address(), localPort);

        socket.setCallback(this);
        socket.setOutputGate(gate("socketOut"));
    }
}

Referenced by inet::TelnetApp::initialize(), inet::TcpBasicClientApp::initialize(), and inet::TcpSessionApp::initialize().

numInitStages()

virtual int inet::TcpAppBase::numInitStages ( ) const

inlineoverrideprotectedvirtual

Reimplemented in inet::TcpSessionApp, inet::TcpBasicClientApp, and inet::TelnetApp.

{ return NUM_INIT_STAGES; }

refreshDisplay()

void inet::TcpAppBase::refreshDisplay ( ) const

overrideprotectedvirtual

Reimplemented in inet::TcpSessionApp.

{
    ApplicationBase::refreshDisplay();
    getDisplayString().setTagArg("t", 0, TcpSocket::stateName(socket.getState()));
}

Referenced by inet::TcpSessionApp::refreshDisplay().

sendPacket()

void inet::TcpAppBase::sendPacket ( Packet *  pkt )

protectedvirtual

{
    int numBytes = msg->getByteLength();
    emit(packetSentSignal, msg);
    socket.send(msg);

    packetsSent++;
    bytesSent += numBytes;
}

Referenced by inet::TcpSessionApp::sendData(), inet::TelnetApp::sendGenericAppMsg(), and inet::TcpBasicClientApp::sendRequest().

socketAvailable()

virtual void inet::TcpAppBase::socketAvailable ( TcpSocket *  socket, TcpAvailableInfo *  availableInfo  )

inlineoverrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

{ socket->accept(availableInfo->getNewSocketId()); }

socketClosed()

void inet::TcpAppBase::socketClosed ( TcpSocket *  socket )

overrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

Reimplemented in inet::TcpSessionApp, inet::TcpBasicClientApp, and inet::TelnetApp.

{
    // *redefine* to start another session etc.
    EV_INFO << "connection closed\n";
}

Referenced by inet::TelnetApp::socketClosed(), inet::TcpBasicClientApp::socketClosed(), and inet::TcpSessionApp::socketClosed().

socketDataArrived()

void inet::TcpAppBase::socketDataArrived ( TcpSocket *  socket, Packet *  packet, bool  urgent  )

overrideprotectedvirtual

Notifies about data arrival, packet ownership is transferred to the callee.

Implements inet::TcpSocket::ICallback.

Reimplemented in inet::TcpSessionApp, inet::TcpBasicClientApp, and inet::TelnetApp.

{
    // *redefine* to perform or schedule next sending
    packetsRcvd++;
    bytesRcvd += msg->getByteLength();
    emit(packetReceivedSignal, msg);
    delete msg;
}

Referenced by inet::TelnetApp::socketDataArrived(), inet::TcpBasicClientApp::socketDataArrived(), and inet::TcpSessionApp::socketDataArrived().

socketDeleted()

virtual void inet::TcpAppBase::socketDeleted ( TcpSocket *  socket )

inlineoverrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

{}

socketEstablished()

void inet::TcpAppBase::socketEstablished ( TcpSocket *  socket )

overrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

Reimplemented in inet::TcpSessionApp, inet::TcpBasicClientApp, and inet::TelnetApp.

{
    // *redefine* to perform or schedule first sending
    EV_INFO << "connected\n";
}

Referenced by inet::TelnetApp::socketEstablished(), inet::TcpBasicClientApp::socketEstablished(), and inet::TcpSessionApp::socketEstablished().

socketFailure()

void inet::TcpAppBase::socketFailure ( TcpSocket *  socket, int  code  )

overrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

Reimplemented in inet::TcpSessionApp, inet::TcpBasicClientApp, and inet::TelnetApp.

{
    // subclasses may override this function, and add code try to reconnect after a delay.
    EV_WARN << "connection broken\n";
    numBroken++;
}

Referenced by inet::TelnetApp::socketFailure(), inet::TcpBasicClientApp::socketFailure(), and inet::TcpSessionApp::socketFailure().

socketPeerClosed()

void inet::TcpAppBase::socketPeerClosed ( TcpSocket *  socket )

overrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

{
    ASSERT(socket_ == &socket);
    // close the connection (if not already closed)
    if (socket.getState() == TcpSocket::PEER_CLOSED) {
        EV_INFO << "remote TCP closed, closing here as well\n";
        close();
    }
}

socketStatusArrived()

virtual void inet::TcpAppBase::socketStatusArrived ( TcpSocket *  socket, TcpStatusInfo *  status  )

inlineoverrideprotectedvirtual

Implements inet::TcpSocket::ICallback.

{}

Member Data Documentation

bytesRcvd

int inet::TcpAppBase::bytesRcvd

protected

Referenced by finish(), inet::TcpSessionApp::finish(), initialize(), inet::TcpSessionApp::refreshDisplay(), and socketDataArrived().

bytesSent

int inet::TcpAppBase::bytesSent

protected

Referenced by inet::TcpSessionApp::createDataPacket(), finish(), inet::TcpSessionApp::finish(), initialize(), inet::TcpSessionApp::refreshDisplay(), and sendPacket().

connectSignal

simsignal_t inet::TcpAppBase::connectSignal = registerSignal("connect")

staticprotected

Referenced by close(), and connect().

numBroken

int inet::TcpAppBase::numBroken

protected

Referenced by initialize(), and socketFailure().

numSessions

int inet::TcpAppBase::numSessions

protected

Referenced by connect(), finish(), and initialize().

packetsRcvd

int inet::TcpAppBase::packetsRcvd

protected

Referenced by finish(), inet::TcpSessionApp::finish(), initialize(), and socketDataArrived().

packetsSent

int inet::TcpAppBase::packetsSent

protected

Referenced by finish(), initialize(), and sendPacket().

socket

TcpSocket inet::TcpAppBase::socket

protected

Referenced by close(), connect(), inet::TelnetApp::handleCrashOperation(), inet::TcpBasicClientApp::handleCrashOperation(), inet::TcpSessionApp::handleCrashOperation(), handleMessageWhenUp(), inet::TelnetApp::handleStopOperation(), inet::TcpBasicClientApp::handleStopOperation(), inet::TcpSessionApp::handleStopOperation(), initialize(), refreshDisplay(), inet::TcpSessionApp::refreshDisplay(), sendPacket(), inet::TelnetApp::socketClosed(), inet::TcpBasicClientApp::socketClosed(), inet::TcpSessionApp::socketClosed(), inet::TelnetApp::socketDataArrived(), inet::TcpBasicClientApp::socketDataArrived(), inet::TcpSessionApp::socketDataArrived(), inet::TelnetApp::socketEstablished(), inet::TcpBasicClientApp::socketEstablished(), inet::TcpSessionApp::socketEstablished(), inet::TelnetApp::socketFailure(), inet::TcpBasicClientApp::socketFailure(), inet::TcpSessionApp::socketFailure(), and socketPeerClosed().

---

The documentation for this class was generated from the following files:

• TcpAppBase.h
• TcpAppBase.cc
