inet::StreamReq Class Reference

Class generated from inet/protocolelement/redundancy/StreamTag.msg:25 by opp_msgtool. More...

#include <StreamTag_m.h>

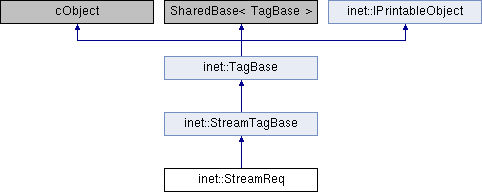

Inheritance diagram for inet::StreamReq:

Public Member Functions
	StreamReq ()
	StreamReq (const StreamReq &other)
virtual	~StreamReq ()
StreamReq &	operator= (const StreamReq &other)
virtual StreamReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::StreamTagBase
	StreamTagBase ()
	StreamTagBase (const StreamTagBase &other)
virtual	~StreamTagBase ()
StreamTagBase &	operator= (const StreamTagBase &other)
virtual const char *	getStreamName () const
virtual void	setStreamName (const char *streamName)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const StreamReq &)=delete
Protected Member Functions inherited from inet::StreamTagBase
bool	operator== (const StreamTagBase &)=delete

Private Member Functions
void	copy (const StreamReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::StreamTagBase
::omnetpp::opp_string	streamName

Detailed Description

Class generated from inet/protocolelement/redundancy/StreamTag.msg:25 by opp_msgtool.

//
// This request determines the stream that should be used to send the packet.
// It may be present on a packet from the application to the mac protocol.
//
class StreamReq extends StreamTagBase
{
}

Constructor & Destructor Documentation

StreamReq() [1/2]

inet::StreamReq::StreamReq

(

)

StreamReq() [2/2]

inet::StreamReq::StreamReq

(

const StreamReq &

other

)

~StreamReq()

virtual inet::StreamReq::~StreamReq ( )

virtual

Member Function Documentation

copy()

void inet::StreamReq::copy ( const StreamReq &  other )

private

dup()

virtual StreamReq* inet::StreamReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::StreamTagBase.

{return new StreamReq(*this);}

operator=()

StreamReq& inet::StreamReq::operator=

(

const StreamReq &

other

)

operator==()

bool inet::StreamReq::operator== ( const StreamReq &  )

protecteddelete

parsimPack()

virtual void inet::StreamReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::StreamTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::StreamReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::StreamTagBase.

Referenced by inet::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• StreamTag_m.h
