inet::SnirInd Class Reference

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/SignalTag.msg:104 by opp_msgtool. More...

#include <SignalTag_m.h>

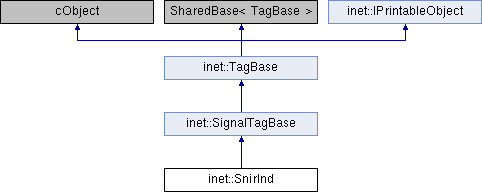

Inheritance diagram for inet::SnirInd:
inet::SignalTagBase inet::TagBase inet::IPrintableObject

Public Member Functions

 SnirInd ()

 SnirInd (const SnirInd &other)

virtual ~SnirInd ()

SnirInd & operator= (const SnirInd &other)

virtual SnirInd * dup () const override

virtual void parsimPack (omnetpp::cCommBuffer *b) const override

virtual void parsimUnpack (omnetpp::cCommBuffer *b) override

virtual double getMinimumSnir () const

virtual void setMinimumSnir (double minimumSnir)

virtual double getMaximumSnir () const

virtual void setMaximumSnir (double maximumSnir)

virtual double getAverageSnir () const

virtual void setAverageSnir (double averageSnir)

- Public Member Functions inherited from inet::SignalTagBase
 SignalTagBase ()

 SignalTagBase (const SignalTagBase &other)

virtual ~SignalTagBase ()

SignalTagBase & operator= (const SignalTagBase &other)

- Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase > dupShared () const

virtual const Ptr< TagBase > changeRegion (b offsetDelta, b lengthDelta) const

virtual void parsimPack (cCommBuffer *buffer) const override

virtual void parsimUnpack (cCommBuffer *buffer) override

virtual std::ostream & printToStream (std::ostream &stream, int level, int evFlags) const override
 Prints this object to the provided output stream. More...

virtual std::ostream & printFieldsToStream (std::ostream &stream, int level, int evFlags) const

virtual std::string str () const override

- Public Member Functions inherited from inet::IPrintableObject
virtual ~IPrintableObject ()

virtual std::string printToString () const

virtual std::string printToString (int level, int evFlags=0) const

virtual std::string getInfoStringRepresentation (int evFlags=0) const

virtual std::string getDetailStringRepresentation (int evFlags=0) const

virtual std::string getDebugStringRepresentation (int evFlags=0) const

virtual std::string getTraceStringRepresentation (int evFlags=0) const

virtual std::string getCompleteStringRepresentation (int evFlags=0) const


Protected Member Functions

bool operator== (const SnirInd &)=delete

- Protected Member Functions inherited from inet::SignalTagBase
bool operator== (const SignalTagBase &)=delete


Protected Attributes

double minimumSnir = NaN

double maximumSnir = NaN

double averageSnir = NaN


Private Member Functions

void copy (const SnirInd &other)


Additional Inherited Members

- Public Types inherited from inet::IPrintableObject
enum  PrintLevel {
  PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,
  PRINT_LEVEL_COMPLETE = INT_MIN
}

enum  PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }


Detailed Description

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/SignalTag.msg:104 by opp_msgtool.

//
// This indication specifies the signal to noise ratio that was detected during receiving the packet.
// It may be present on a packet from the phyiscal layer to the application.
//
class SnirInd extends SignalTagBase
{
    double minimumSnir = NaN; // minimum signal to noise plus interference ratio in the range (0, +infinity) or NaN if unknown.
    double maximumSnir = NaN; // maximum signal to noise plus interference ratio in the range (0, +infinity) or NaN if unknown.
    double averageSnir = NaN; // average signal to noise plus interference ratio in the range (0, +infinity) or NaN if unknown.
}

Constructor & Destructor Documentation

◆ SnirInd() [1/2]

inet::SnirInd::SnirInd ( )

◆ SnirInd() [2/2]

inet::SnirInd::SnirInd ( const SnirInd &  other)

◆ ~SnirInd()

virtual inet::SnirInd::~SnirInd ( )
virtual

Member Function Documentation

◆ copy()

void inet::SnirInd::copy ( const SnirInd &  other)
private

◆ dup()

virtual SnirInd* inet::SnirInd::dup ( ) const
inlineoverridevirtual

Reimplemented from inet::SignalTagBase.

471 {return new SnirInd(*this);}

◆ getAverageSnir()

virtual double inet::SnirInd::getAverageSnir ( ) const
virtual

◆ getMaximumSnir()

virtual double inet::SnirInd::getMaximumSnir ( ) const
virtual

◆ getMinimumSnir()

virtual double inet::SnirInd::getMinimumSnir ( ) const
virtual

◆ operator=()

SnirInd& inet::SnirInd::operator= ( const SnirInd &  other)

◆ operator==()

bool inet::SnirInd::operator== ( const SnirInd &  )
protecteddelete

◆ parsimPack()

virtual void inet::SnirInd::parsimPack ( omnetpp::cCommBuffer *  b) const
overridevirtual

Reimplemented from inet::SignalTagBase.

Referenced by inet::doParsimPacking().

◆ parsimUnpack()

virtual void inet::SnirInd::parsimUnpack ( omnetpp::cCommBuffer *  b)
overridevirtual

Reimplemented from inet::SignalTagBase.

Referenced by inet::doParsimUnpacking().

◆ setAverageSnir()

virtual void inet::SnirInd::setAverageSnir ( double  averageSnir)
virtual

◆ setMaximumSnir()

virtual void inet::SnirInd::setMaximumSnir ( double  maximumSnir)
virtual

◆ setMinimumSnir()

virtual void inet::SnirInd::setMinimumSnir ( double  minimumSnir)
virtual

Referenced by inet::physicallayer::ReceiverBase::computeReceptionResult(), inet::physicallayer::ApskLayeredReceiver::computeReceptionResult(), and inet::physicallayer::Ieee80211LayeredOfdmReceiver::computeReceptionResult().

Member Data Documentation

◆ averageSnir

double inet::SnirInd::averageSnir = NaN
protected

◆ maximumSnir

double inet::SnirInd::maximumSnir = NaN
protected

◆ minimumSnir

double inet::SnirInd::minimumSnir = NaN
protected
The documentation for this class was generated from the following file:
