inet::SignalTimeInd Class Reference

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/SignalTag.msg:126 by opp_msgtool. More...

#include <SignalTag_m.h>

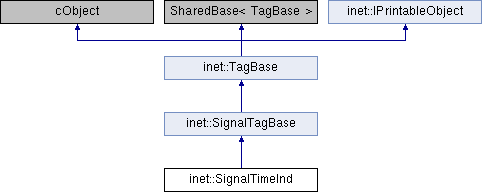

Inheritance diagram for inet::SignalTimeInd:
inet::SignalTagBase inet::TagBase inet::IPrintableObject

Public Member Functions

 SignalTimeInd ()

 SignalTimeInd (const SignalTimeInd &other)

virtual ~SignalTimeInd ()

SignalTimeInd & operator= (const SignalTimeInd &other)

virtual SignalTimeInd * dup () const override

virtual void parsimPack (omnetpp::cCommBuffer *b) const override

virtual void parsimUnpack (omnetpp::cCommBuffer *b) override

virtual ::omnetpp::simtime_t getStartTime () const

virtual void setStartTime (::omnetpp::simtime_t startTime)

virtual ::omnetpp::simtime_t getEndTime () const

virtual void setEndTime (::omnetpp::simtime_t endTime)

- Public Member Functions inherited from inet::SignalTagBase
 SignalTagBase ()

 SignalTagBase (const SignalTagBase &other)

virtual ~SignalTagBase ()

SignalTagBase & operator= (const SignalTagBase &other)

- Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase > dupShared () const

virtual const Ptr< TagBase > changeRegion (b offsetDelta, b lengthDelta) const

virtual void parsimPack (cCommBuffer *buffer) const override

virtual void parsimUnpack (cCommBuffer *buffer) override

virtual std::ostream & printToStream (std::ostream &stream, int level, int evFlags) const override
 Prints this object to the provided output stream. More...

virtual std::ostream & printFieldsToStream (std::ostream &stream, int level, int evFlags) const

virtual std::string str () const override

- Public Member Functions inherited from inet::IPrintableObject
virtual ~IPrintableObject ()

virtual std::string printToString () const

virtual std::string printToString (int level, int evFlags=0) const

virtual std::string getInfoStringRepresentation (int evFlags=0) const

virtual std::string getDetailStringRepresentation (int evFlags=0) const

virtual std::string getDebugStringRepresentation (int evFlags=0) const

virtual std::string getTraceStringRepresentation (int evFlags=0) const

virtual std::string getCompleteStringRepresentation (int evFlags=0) const


Protected Member Functions

bool operator== (const SignalTimeInd &)=delete

- Protected Member Functions inherited from inet::SignalTagBase
bool operator== (const SignalTagBase &)=delete


Protected Attributes

::omnetpp::simtime_t startTime = SIMTIME_ZERO

::omnetpp::simtime_t endTime = SIMTIME_ZERO


Private Member Functions

void copy (const SignalTimeInd &other)


Additional Inherited Members

- Public Types inherited from inet::IPrintableObject
enum  PrintLevel {
  PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,
  PRINT_LEVEL_COMPLETE = INT_MIN
}

enum  PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }


Detailed Description

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/SignalTag.msg:126 by opp_msgtool.

//
// This indication specifies the timing of the received signal.
// It may be present on a packet from the phyiscal layer to the application.
//
class SignalTimeInd extends SignalTagBase
{
    simtime_t startTime;
    simtime_t endTime;
}

Constructor & Destructor Documentation

◆ SignalTimeInd() [1/2]

inet::SignalTimeInd::SignalTimeInd ( )

◆ SignalTimeInd() [2/2]

inet::SignalTimeInd::SignalTimeInd ( const SignalTimeInd &  other)

◆ ~SignalTimeInd()

virtual inet::SignalTimeInd::~SignalTimeInd ( )
virtual

Member Function Documentation

◆ copy()

void inet::SignalTimeInd::copy ( const SignalTimeInd &  other)
private

◆ dup()

virtual SignalTimeInd* inet::SignalTimeInd::dup ( ) const
inlineoverridevirtual

Reimplemented from inet::SignalTagBase.

569 {return new SignalTimeInd(*this);}

◆ getEndTime()

virtual ::omnetpp::simtime_t inet::SignalTimeInd::getEndTime ( ) const

◆ getStartTime()

virtual ::omnetpp::simtime_t inet::SignalTimeInd::getStartTime ( ) const

◆ operator=()

SignalTimeInd& inet::SignalTimeInd::operator= ( const SignalTimeInd &  other)

◆ operator==()

bool inet::SignalTimeInd::operator== ( const SignalTimeInd &  )
protecteddelete

◆ parsimPack()

virtual void inet::SignalTimeInd::parsimPack ( omnetpp::cCommBuffer *  b) const
overridevirtual

Reimplemented from inet::SignalTagBase.

Referenced by inet::doParsimPacking().

◆ parsimUnpack()

virtual void inet::SignalTimeInd::parsimUnpack ( omnetpp::cCommBuffer *  b)
overridevirtual

Reimplemented from inet::SignalTagBase.

Referenced by inet::doParsimUnpacking().

◆ setEndTime()

virtual void inet::SignalTimeInd::setEndTime ( ::omnetpp::simtime_t  endTime)
virtual

◆ setStartTime()

virtual void inet::SignalTimeInd::setStartTime ( ::omnetpp::simtime_t  startTime)
virtual

Referenced by inet::physicallayer::ReceiverBase::computeReceptionResult().

Member Data Documentation

◆ endTime

::omnetpp::simtime_t inet::SignalTimeInd::endTime = SIMTIME_ZERO
protected

◆ startTime

::omnetpp::simtime_t inet::SignalTimeInd::startTime = SIMTIME_ZERO
protected
The documentation for this class was generated from the following file:
