inet::SignalPowerReq Class Reference

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/SignalTag.msg:37 by opp_msgtool. More...

#include <SignalTag_m.h>

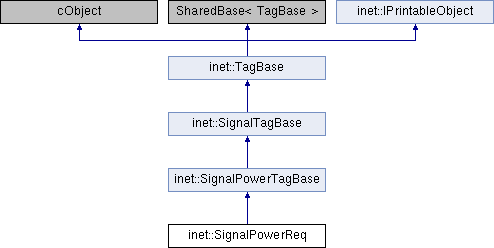

Inheritance diagram for inet::SignalPowerReq:

Public Member Functions
	SignalPowerReq ()
	SignalPowerReq (const SignalPowerReq &other)
virtual	~SignalPowerReq ()
SignalPowerReq &	operator= (const SignalPowerReq &other)
virtual SignalPowerReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::SignalPowerTagBase
	SignalPowerTagBase ()
	SignalPowerTagBase (const SignalPowerTagBase &other)
virtual	~SignalPowerTagBase ()
SignalPowerTagBase &	operator= (const SignalPowerTagBase &other)
virtual W	getPower () const
virtual void	setPower (W power)
Public Member Functions inherited from inet::SignalTagBase
	SignalTagBase ()
	SignalTagBase (const SignalTagBase &other)
virtual	~SignalTagBase ()
SignalTagBase &	operator= (const SignalTagBase &other)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const SignalPowerReq &)=delete
Protected Member Functions inherited from inet::SignalPowerTagBase
bool	operator== (const SignalPowerTagBase &)=delete
Protected Member Functions inherited from inet::SignalTagBase
bool	operator== (const SignalTagBase &)=delete

Private Member Functions
void	copy (const SignalPowerReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::SignalPowerTagBase
W	power = W(NaN)

Detailed Description

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/SignalTag.msg:37 by opp_msgtool.

//
// This request determines the average analog signal power that should be used to transmit the packet.
// It may be present on a packet from the application to the phyisical layer.
//
class SignalPowerReq extends SignalPowerTagBase
{
}

Constructor & Destructor Documentation

SignalPowerReq() [1/2]

inet::SignalPowerReq::SignalPowerReq

(

)

SignalPowerReq() [2/2]

inet::SignalPowerReq::SignalPowerReq

(

const SignalPowerReq &

other

)

~SignalPowerReq()

virtual inet::SignalPowerReq::~SignalPowerReq ( )

virtual

Member Function Documentation

copy()

void inet::SignalPowerReq::copy ( const SignalPowerReq &  other )

private

dup()

virtual SignalPowerReq* inet::SignalPowerReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::SignalPowerTagBase.

{return new SignalPowerReq(*this);}

operator=()

SignalPowerReq& inet::SignalPowerReq::operator=

(

const SignalPowerReq &

other

)

operator==()

bool inet::SignalPowerReq::operator== ( const SignalPowerReq &  )

protecteddelete

parsimPack()

virtual void inet::SignalPowerReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::SignalPowerTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::SignalPowerReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::SignalPowerTagBase.

Referenced by inet::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• SignalTag_m.h
