inet::SignalBandInd Class Reference

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/SignalTag.msg:70 by opp_msgtool. More...

#include <SignalTag_m.h>

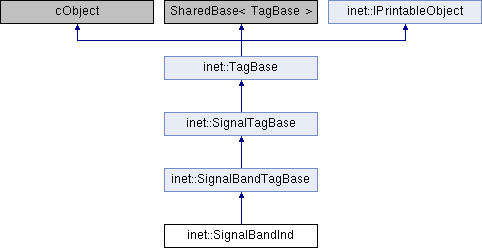

Inheritance diagram for inet::SignalBandInd:

Public Member Functions
	SignalBandInd ()
	SignalBandInd (const SignalBandInd &other)
virtual	~SignalBandInd ()
SignalBandInd &	operator= (const SignalBandInd &other)
virtual SignalBandInd *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::SignalBandTagBase
	SignalBandTagBase ()
	SignalBandTagBase (const SignalBandTagBase &other)
virtual	~SignalBandTagBase ()
SignalBandTagBase &	operator= (const SignalBandTagBase &other)
virtual Hz	getCenterFrequency () const
virtual void	setCenterFrequency (Hz centerFrequency)
virtual Hz	getBandwidth () const
virtual void	setBandwidth (Hz bandwidth)
Public Member Functions inherited from inet::SignalTagBase
	SignalTagBase ()
	SignalTagBase (const SignalTagBase &other)
virtual	~SignalTagBase ()
SignalTagBase &	operator= (const SignalTagBase &other)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const SignalBandInd &)=delete
Protected Member Functions inherited from inet::SignalBandTagBase
bool	operator== (const SignalBandTagBase &)=delete
Protected Member Functions inherited from inet::SignalTagBase
bool	operator== (const SignalTagBase &)=delete

Private Member Functions
void	copy (const SignalBandInd &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::SignalBandTagBase
Hz	centerFrequency = Hz(NaN)
Hz	bandwidth = Hz(NaN)

Detailed Description

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/SignalTag.msg:70 by opp_msgtool.

//
// This indication specifies the signal band that was used to receive the packet.
// It may be present on a packet from the phyiscal layer to the application.
//
class SignalBandInd extends SignalBandTagBase
{
}

Constructor & Destructor Documentation

SignalBandInd() [1/2]

inet::SignalBandInd::SignalBandInd

(

)

SignalBandInd() [2/2]

inet::SignalBandInd::SignalBandInd

(

const SignalBandInd &

other

)

~SignalBandInd()

virtual inet::SignalBandInd::~SignalBandInd ( )

virtual

Member Function Documentation

copy()

void inet::SignalBandInd::copy ( const SignalBandInd &  other )

private

dup()

virtual SignalBandInd* inet::SignalBandInd::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::SignalBandTagBase.

{return new SignalBandInd(*this);}

operator=()

SignalBandInd& inet::SignalBandInd::operator=

(

const SignalBandInd &

other

)

operator==()

bool inet::SignalBandInd::operator== ( const SignalBandInd &  )

protecteddelete

parsimPack()

virtual void inet::SignalBandInd::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::SignalBandTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::SignalBandInd::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::SignalBandTagBase.

Referenced by inet::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• SignalTag_m.h
