inet::SettableClock Class Reference

#include <SettableClock.h>

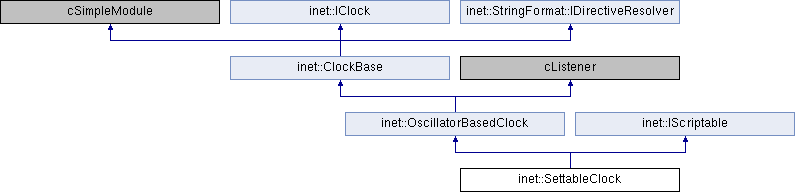

Inheritance diagram for inet::SettableClock:

Public Member Functions
virtual void	setClockTime (clocktime_t time, bool resetOscillator=true)
Public Member Functions inherited from inet::OscillatorBasedClock
virtual	~OscillatorBasedClock ()
virtual clocktime_t	computeClockTimeFromSimTime (simtime_t t) const override
	Returns the clock time for the specified future simulation time according to the current state of the clock. More...
virtual simtime_t	computeSimTimeFromClockTime (clocktime_t t) const override
	Returns the simulation time (first moment) for the specified future clock time according to the current state of the clock. More...
virtual void	scheduleClockEventAt (clocktime_t t, ClockEvent *event) override
	Schedules an event to be delivered to the caller module (i.e. More...
virtual void	scheduleClockEventAfter (clocktime_t delay, ClockEvent *event) override
	Schedules an event to be delivered to the caller module (i.e. More...
virtual ClockEvent *	cancelClockEvent (ClockEvent *event) override
	Cancels a previously scheduled clock event. More...
virtual void	handleClockEvent (ClockEvent *event) override
	Called by the clock event to be executed in the context of this clock. More...
virtual const char *	resolveDirective (char directive) const override
virtual void	receiveSignal (cComponent *source, int signal, cObject *obj, cObject *details) override
Public Member Functions inherited from inet::ClockBase
virtual clocktime_t	getClockTime () const override
	Returns the current clock time. More...
Public Member Functions inherited from inet::IClock
virtual	~IClock ()
Public Member Functions inherited from inet::IScriptable
virtual	~IScriptable ()

Protected Member Functions
virtual void	initialize (int stage) override
virtual OverdueClockEventHandlingMode	getOverdueClockEventHandlingMode (ClockEvent *event) const
virtual simtime_t	handleOverdueClockEvent (ClockEvent *event, simtime_t t)
virtual void	processCommand (const cXMLElement &node) override
	Called by ScenarioManager whenever a script command needs to be carried out by the module. More...
Protected Member Functions inherited from inet::ClockBase
virtual int	numInitStages () const override
virtual void	finish () override
virtual void	refreshDisplay () const override
virtual void	updateDisplayString () const
cSimpleModule *	getTargetModule () const

Protected Attributes
OverdueClockEventHandlingMode	defaultOverdueClockEventHandlingMode = UNSPECIFIED
Protected Attributes inherited from inet::OscillatorBasedClock
IOscillator *	oscillator = nullptr
int64_t(*	roundingFunction )(int64_t, int64_t) = nullptr
int64_t	originClockTick = -1
std::vector< ClockEvent * >	events
Protected Attributes inherited from inet::ClockBase
clocktime_t	clockEventTime = -1
const char *	displayStringTextFormat = nullptr

Additional Inherited Members
Static Public Attributes inherited from inet::ClockBase
static simsignal_t	timeChangedSignal = cComponent::registerSignal("timeChanged")

Member Function Documentation

getOverdueClockEventHandlingMode()

OverdueClockEventHandlingMode inet::SettableClock::getOverdueClockEventHandlingMode ( ClockEvent *  event ) const

protectedvirtual

{
    auto mode = event->getOverdueClockEventHandlingMode();
    if (mode == UNSPECIFIED)
        return defaultOverdueClockEventHandlingMode;
    else
        return mode;
}

Referenced by handleOverdueClockEvent().

handleOverdueClockEvent()

simtime_t inet::SettableClock::handleOverdueClockEvent ( ClockEvent *  event, simtime_t  t  )

protectedvirtual

{
    switch (getOverdueClockEventHandlingMode(event)) {
        case EXECUTE:
            EV_WARN << "Scheduling overdue clock event " << event->getName() << " to current simulation time.\n";
            return t;
        case SKIP:
            EV_WARN << "Skipping overdue clock event " << event->getName() << ".\n";
            cancelClockEvent(event);
            return -1;
        case ERROR:
            throw cRuntimeError("Clock event is overdue");
        default:
            throw cRuntimeError("Unknown overdue clock event handling mode");
    }
}

Referenced by setClockTime().

initialize()

void inet::SettableClock::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OscillatorBasedClock.

{
    OscillatorBasedClock::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        const char *text = par("defaultOverdueClockEventHandlingMode");
        if (!strcmp(text, "execute"))
            defaultOverdueClockEventHandlingMode = EXECUTE;
        else if (!strcmp(text, "skip"))
            defaultOverdueClockEventHandlingMode = SKIP;
        else if (!strcmp(text, "error"))
            defaultOverdueClockEventHandlingMode = ERROR;
        else
            throw cRuntimeError("Unknown defaultOverdueClockEventHandlingMode parameter value");
    }
}

processCommand()

void inet::SettableClock::processCommand ( const cXMLElement &  node )

overrideprotectedvirtual

Called by ScenarioManager whenever a script command needs to be carried out by the module.

The command is represented by the XML element or element tree. The command name can be obtained as:

const char *command = node->getTagName()

Parameters are XML attributes, e.g. a "neighbour" parameter can be retrieved as:

const char *attr = node->getAttribute("neighbour")

More complex input can be passed in child elements.

See also

cXMLElement

Implements inet::IScriptable.

{
    Enter_Method("processCommand");
    if (!strcmp(node.getTagName(), "set-clock")) {
        clocktime_t time = ClockTime::parse(xmlutils::getMandatoryFilledAttribute(node, "time"));
        bool resetOscillator = xmlutils::getAttributeBoolValue(&node, "reset-oscillator", true);
        setClockTime(time, resetOscillator);
    }
    else
        throw cRuntimeError("Invalid command: %s", node.getTagName());
}

setClockTime()

void inet::SettableClock::setClockTime ( clocktime_t  time, bool  resetOscillator = true  )

virtual

{
    Enter_Method("setClockTime");
    clocktime_t oldClockTime = getClockTime();
    if (newClockTime != oldClockTime) {
        emit(timeChangedSignal, oldClockTime.asSimTime());
        if (resetOscillator) {
            if (auto constantDriftOscillator = dynamic_cast<ConstantDriftOscillator *>(oscillator))
                constantDriftOscillator->setTickOffset(0);
        }
        simtime_t currentSimTime = simTime();
        EV_DEBUG << "Setting clock time from " << oldClockTime << " to " << newClockTime << " at simtime " << currentSimTime << ".\n";
        int64_t numTicks = oscillator->computeTicksForInterval(currentSimTime - oscillator->getComputationOrigin());
        originClockTick = newClockTime.raw() / oscillator->getNominalTickLength().raw() - numTicks;
        ASSERT(newClockTime == getClockTime());
        clocktime_t clockDelta = newClockTime - oldClockTime;
        for (auto event : events) {
            if (event->getRelative())
                // NOTE: the simulation time of event execution is not affected
                event->setArrivalClockTime(event->getArrivalClockTime() + clockDelta);
            else {
                clocktime_t arrivalClockTime = event->getArrivalClockTime();
                bool isOverdue = arrivalClockTime < newClockTime;
                simtime_t arrivalSimTime = isOverdue ? -1 : computeSimTimeFromClockTime(arrivalClockTime);
                if (isOverdue || arrivalSimTime < currentSimTime)
                    arrivalSimTime = handleOverdueClockEvent(event, currentSimTime);
                if (event->isScheduled()) {
                    cSimpleModule *targetModule = check_and_cast<cSimpleModule *>(event->getArrivalModule());
                    cContextSwitcher contextSwitcher(targetModule);
                    targetModule->rescheduleAt(arrivalSimTime, event);
                }
            }
        }
        emit(timeChangedSignal, newClockTime.asSimTime());
    }
}

Referenced by processCommand().

Member Data Documentation

defaultOverdueClockEventHandlingMode

OverdueClockEventHandlingMode inet::SettableClock::defaultOverdueClockEventHandlingMode = UNSPECIFIED

protected

Referenced by getOverdueClockEventHandlingMode(), and initialize().

---

The documentation for this class was generated from the following files:

• SettableClock.h
• SettableClock.cc
