inet::SequenceNumberInd Class Reference

Class generated from inet/common/SequenceNumberTag.msg:33 by opp_msgtool. More...

#include <SequenceNumberTag_m.h>

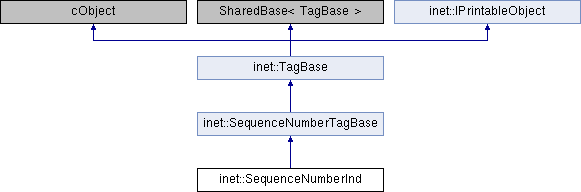

Inheritance diagram for inet::SequenceNumberInd:

Public Member Functions
	SequenceNumberInd ()
	SequenceNumberInd (const SequenceNumberInd &other)
virtual	~SequenceNumberInd ()
SequenceNumberInd &	operator= (const SequenceNumberInd &other)
virtual SequenceNumberInd *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::SequenceNumberTagBase
	SequenceNumberTagBase ()
	SequenceNumberTagBase (const SequenceNumberTagBase &other)
virtual	~SequenceNumberTagBase ()
SequenceNumberTagBase &	operator= (const SequenceNumberTagBase &other)
virtual int	getSequenceNumber () const
virtual void	setSequenceNumber (int sequenceNumber)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const SequenceNumberInd &)=delete
Protected Member Functions inherited from inet::SequenceNumberTagBase
bool	operator== (const SequenceNumberTagBase &)=delete

Private Member Functions
void	copy (const SequenceNumberInd &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::SequenceNumberTagBase
int	sequenceNumber = -1

Detailed Description

Class generated from inet/common/SequenceNumberTag.msg:33 by opp_msgtool.

//
// This indication specifies the sequence number that was used to receive the packet.
// It may be present on a packet from the mac protocol to the application.
//
class SequenceNumberInd extends SequenceNumberTagBase
{
}

Constructor & Destructor Documentation

SequenceNumberInd() [1/2]

inet::SequenceNumberInd::SequenceNumberInd

(

)

SequenceNumberInd() [2/2]

inet::SequenceNumberInd::SequenceNumberInd

(

const SequenceNumberInd &

other

)

~SequenceNumberInd()

virtual inet::SequenceNumberInd::~SequenceNumberInd ( )

virtual

Member Function Documentation

copy()

void inet::SequenceNumberInd::copy ( const SequenceNumberInd &  other )

private

dup()

virtual SequenceNumberInd* inet::SequenceNumberInd::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::SequenceNumberTagBase.

{return new SequenceNumberInd(*this);}

operator=()

SequenceNumberInd& inet::SequenceNumberInd::operator=

(

const SequenceNumberInd &

other

)

operator==()

bool inet::SequenceNumberInd::operator== ( const SequenceNumberInd &  )

protecteddelete

parsimPack()

virtual void inet::SequenceNumberInd::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::SequenceNumberTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::SequenceNumberInd::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::SequenceNumberTagBase.

Referenced by inet::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• SequenceNumberTag_m.h
