inet::Rip Class Reference

Implementation of the Routing Information Protocol. More...

#include <Rip.h>

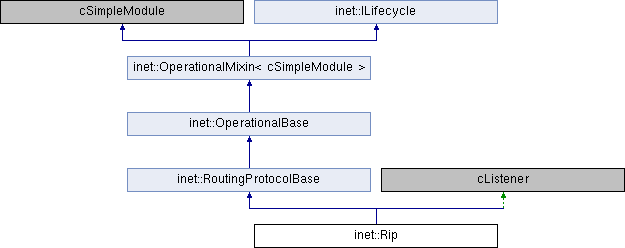

Inheritance diagram for inet::Rip:

Public Member Functions
	Rip ()
	~Rip ()
Public Member Functions inherited from inet::RoutingProtocolBase
	RoutingProtocolBase ()
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessageWhenUp (cMessage *msg) override
virtual void	receiveSignal (cComponent *source, simsignal_t signalID, cObject *obj, cObject *details) override
	Listen on interface/route changes and update private data structures. More...
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual void	handleStopOperation (LifecycleOperation *operation) override
virtual void	handleCrashOperation (LifecycleOperation *operation) override
virtual void	startRIPRouting ()
virtual void	stopRIPRouting ()
virtual RipRoute *	importRoute (IRoute *route, RipRoute::RouteType type, int metric=1, uint16_t routeTag=0)
	Adds a new route the RIP routing table for an existing IRoute. More...
virtual void	sendRIPRequest (const RipNetworkInterface &ripInterface)
	Sends a RIP request to routers on the specified link. More...
virtual void	processRequest (Packet *pk)
	Processes a request received from a RIP router or a monitoring process. More...
virtual void	processUpdate (bool triggered)
	This method called when a triggered or regular update timer expired. More...
virtual void	sendRoutes (const L3Address &address, int port, const RipNetworkInterface &ripInterface, bool changedOnly)
	Send all or changed part of the routing table to address/port on the specified interface. More...
virtual void	processResponse (Packet *pk)
	Processes the RIP response and updates the routing table. More...
virtual bool	isValidResponse (Packet *packet)
virtual void	updateRoute (RipRoute *route, const NetworkInterface *ie, const L3Address &nextHop, int metric, uint16_t routeTag, const L3Address &from)
	Updates an existing route with the information learned from a RIP packet. More...
virtual void	addRoute (const L3Address &dest, int prefixLength, const NetworkInterface *ie, const L3Address &nextHop, int metric, uint16_t routeTag, const L3Address &from)
	RFC 2453 3.9.2: More...
virtual void	checkExpiredRoutes ()
	Should be called regularly to handle expiry and purge of routes. More...
virtual void	invalidateRoute (RipRoute *route)
virtual RouteVector::iterator	purgeRoute (RipRoute *route)
	Removes the route from the routing table. More...
virtual void	triggerUpdate ()
	Sets the update timer to trigger an update in the [1s,5s] interval. More...
virtual void	sendPacket (Packet *packet, const L3Address &destAddr, int destPort, const NetworkInterface *destInterface)
	Sends the packet to the specified destination. More...
Protected Member Functions inherited from inet::RoutingProtocolBase
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Private Types
enum	Mode { RIPv2, RIPng }
typedef std::vector< RipNetworkInterface >	InterfaceVector
typedef std::vector< RipRoute * >	RouteVector

Private Member Functions
RipNetworkInterface *	findRipInterfaceById (int interfaceId)
RipRoute *	findRipRoute (const L3Address &destAddress, int prefixLength)
RipRoute *	findRipRoute (const L3Address &destination, int prefixLength, RipRoute::RouteType type)
RipRoute *	findRipRoute (const IRoute *route)
RipRoute *	findRipRoute (const NetworkInterface *ie, RipRoute::RouteType type)
void	addRipInterface (const NetworkInterface *ie, cXMLElement *config)
void	deleteRipInterface (const NetworkInterface *ie)
int	getInterfaceMetric (NetworkInterface *ie)
IRoute *	createRoute (const L3Address &dest, int prefixLength, const NetworkInterface *ie, const L3Address &nextHop, int metric)
bool	isLoopbackInterfaceRoute (const IRoute *route)
bool	isLocalInterfaceRoute (const IRoute *route)
bool	isDefaultRoute (const IRoute *route)

Private Attributes
cModule *	host = nullptr
ModuleRefByPar< IInterfaceTable >	ift
ModuleRefByPar< IRoutingTable >	rt
IL3AddressType *	addressType = nullptr
InterfaceVector	ripInterfaces
RouteVector	ripRoutingTable
UdpSocket	socket
cMessage *	updateTimer = nullptr
cMessage *	triggeredUpdateTimer = nullptr
cMessage *	startupTimer = nullptr
cMessage *	shutdownTimer = nullptr
Mode	mode = static_cast<Mode>(-1)
int	ripUdpPort = -1
simtime_t	updateInterval
simtime_t	routeExpiryTime
simtime_t	routePurgeTime
simtime_t	holdDownTime
simtime_t	shutdownTime
bool	triggeredUpdate = false

Static Private Attributes
static simsignal_t	sentRequestSignal = registerSignal("sentRequest")
static simsignal_t	sentUpdateSignal = registerSignal("sentUpdate")
static simsignal_t	rcvdResponseSignal = registerSignal("rcvdResponse")
static simsignal_t	badResponseSignal = registerSignal("badResponse")
static simsignal_t	numRoutesSignal = registerSignal("numRoutes")

Additional Inherited Members
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Detailed Description

Implementation of the Routing Information Protocol.

This module supports RIPv2 (RFC 2453) and RIPng (RFC 2080).

RIP is a distance vector routing protocol. Each RIP router periodically sends its whole routing table to neighbor routers, and updates its own routing table according to the received information. If a route changed the router might send a notification to its neighbors immediately (or rather with a small delay) which contains only the changed routes (triggered updates).

TODO

1. Initially the router knows only the routes to the directly connected networks, and the routes that were manually configured. As it receives route updates from the neighbors it learns routes to remote networks. It should be possible to cooperate with other routing protocols that work in the same AS (e.g. OSPF) or with exterior protocols that connects this AS to other ASs (e.g. BGP). This requires some configurable criteria which routes of the routing table should be advertise by the RIP router, e.g. 'advertise the default route added by BGP with RIP metric 1'.
2. There is no merging of subnet routes. RFC 2453 3.7 suggests that subnetted network routes should not be advertised outside the subnetted network.

Member Typedef Documentation

InterfaceVector

typedef std::vector<RipNetworkInterface> inet::Rip::InterfaceVector

private

RouteVector

typedef std::vector<RipRoute *> inet::Rip::RouteVector

private

Member Enumeration Documentation

Mode

enum inet::Rip::Mode

private

Enumerator
RIPv2
RIPng

{ RIPv2, RIPng };

Constructor & Destructor Documentation

Rip()

inet::Rip::Rip

(

)

{
}

~Rip()

inet::Rip::~Rip

(

)

{
    for (auto& elem : ripRoutingTable)
        delete elem;
    ripRoutingTable.clear();
    cancelAndDelete(updateTimer);
    cancelAndDelete(triggeredUpdateTimer);
    cancelAndDelete(startupTimer);
    cancelAndDelete(shutdownTimer);
}

Member Function Documentation

addRipInterface()

void inet::Rip::addRipInterface ( const NetworkInterface *  ie, cXMLElement *  config  )

private

{
    RipNetworkInterface ripInterface(ie);

    // Fills in the parameters of the interface from the matching <interface>
    // element of the configuration.
    if (config) {
        const char *metricAttr = config->getAttribute("metric");

        if (metricAttr) {
            int metric = atoi(metricAttr);
            if (metric < 0 || metric >= RIP_INFINITE_METRIC)
                throw cRuntimeError("RIP: invalid metric in <interface> element at %s: %s", config->getSourceLocation(), metricAttr);
            ripInterface.metric = metric;
        }

        const char *ripModeAttr = config->getAttribute("mode");
        RipMode mode = !ripModeAttr ? SPLIT_HORIZON_POISON_REVERSE :
            strcmp(ripModeAttr, "NoRIP") == 0 ? NO_RIP :
            strcmp(ripModeAttr, "PASSIVE") == 0 ? PASSIVE :
            strcmp(ripModeAttr, "NoSplitHorizon") == 0 ? NO_SPLIT_HORIZON :
            strcmp(ripModeAttr, "SplitHorizon") == 0 ? SPLIT_HORIZON :
            strcmp(ripModeAttr, "SplitHorizonPoisonReverse") == 0 ? SPLIT_HORIZON_POISON_REVERSE :
            strcmp(ripModeAttr, "SplitHorizonPoisonedReverse") == 0 ? SPLIT_HORIZON_POISON_REVERSE : // TODO left here for backward compatibility, delete this line eventually
                    static_cast<RipMode>(-1);

        if (mode == static_cast<RipMode>(-1))
            throw cRuntimeError("RIP: invalid mode attribute in <interface> element at %s: %s",
                    config->getSourceLocation(), ripModeAttr);
        ripInterface.mode = mode;
    }

    ripInterfaces.push_back(ripInterface);
}

Referenced by receiveSignal(), and startRIPRouting().

addRoute()

void inet::Rip::addRoute ( const L3Address &  dest, int  prefixLength, const NetworkInterface *  ie, const L3Address &  nextHop, int  metric, uint16_t  routeTag, const L3Address &  from  )

protectedvirtual

RFC 2453 3.9.2:

Adding a route to the routing table consists of:

• Setting the destination address to the destination address in the RTE
• Setting the metric to the newly calculated metric
• Set the next hop address to be the address of the router from which the datagram came
• Initialize the timeout for the route. If the garbage-collection timer is running for this route, stop it
• Set the route change flag
• Signal the output process to trigger an update

{
    EV_DEBUG << "Add route to " << dest << "/" << prefixLength << ": "
             << "nextHop=" << nextHop << " metric=" << metric << std::endl;

    IRoute *route = createRoute(dest, prefixLength, ie, nextHop, metric);

    RipRoute *ripRoute = new RipRoute(route, RipRoute::RIP_ROUTE_RTE, metric, routeTag);
    ripRoute->setFrom(from);
    ripRoute->setLastUpdateTime(simTime());
    ripRoute->setChanged(true);
    ripRoutingTable.push_back(ripRoute);

    emit(numRoutesSignal, (unsigned long)ripRoutingTable.size());
    triggerUpdate();
}

Referenced by processResponse().

checkExpiredRoutes()

void inet::Rip::checkExpiredRoutes ( )

protectedvirtual

Should be called regularly to handle expiry and purge of routes.

{
    // iterate over each rip route and check if it has expired
    // note that the iterator becomes invalid after calling purgeRoute
    for (RouteVector::iterator iter = ripRoutingTable.begin(); iter != ripRoutingTable.end();) {
        RipRoute *ripRoute = (*iter);
        if (ripRoute->getType() == RipRoute::RIP_ROUTE_RTE) {
            simtime_t now = simTime();
            if (now >= ripRoute->getLastUpdateTime() + routeExpiryTime + routePurgeTime) {
                iter = purgeRoute(ripRoute);
                continue;
            }
            else if (now >= ripRoute->getLastUpdateTime() + routeExpiryTime)
                invalidateRoute(ripRoute);
        }

        iter++;
    }
}

Referenced by sendRoutes().

createRoute()

IRoute * inet::Rip::createRoute ( const L3Address &  dest, int  prefixLength, const NetworkInterface *  ie, const L3Address &  nextHop, int  metric  )

private

{
    // create a new route
    IRoute *route = rt->createRoute();

    // adding generic fields
    route->setDestination(dest);
    route->setNextHop(nextHop);
    route->setPrefixLength(prefixLength);
    route->setMetric(metric);
    route->setAdminDist(IRoute::dRIP);
    route->setInterface(const_cast<NetworkInterface *>(ie));
    route->setSourceType(IRoute::RIP);
    route->setSource(this);

    EV_DETAIL << "Adding new route " << route << endl;
    rt->addRoute(route);

    return route;
}

Referenced by addRoute(), and updateRoute().

deleteRipInterface()

void inet::Rip::deleteRipInterface ( const NetworkInterface *  ie )

private

{
    // delete interfaces and routes referencing ie
    for (auto it = ripInterfaces.begin(); it != ripInterfaces.end();) {
        if (it->ie == ie)
            it = ripInterfaces.erase(it);
        else
            it++;
    }
    bool emitNumRoutesSignal = false;
    for (auto it = ripRoutingTable.begin(); it != ripRoutingTable.end();) {
        if ((*it)->getInterface() == ie) {
            delete *it;
            it = ripRoutingTable.erase(it);
            emitNumRoutesSignal = true;
        }
        else
            it++;
    }
    if (emitNumRoutesSignal)
        emit(numRoutesSignal, (unsigned long)ripRoutingTable.size());
}

Referenced by receiveSignal().

findRipInterfaceById()

RipNetworkInterface * inet::Rip::findRipInterfaceById ( int  interfaceId )

private

{
    for (auto& elem : ripInterfaces)
        if (elem.ie->getInterfaceId() == interfaceId)
            return &(elem);

    return nullptr;
}

Referenced by getInterfaceMetric(), processRequest(), processResponse(), receiveSignal(), and startRIPRouting().

findRipRoute() [1/4]

RipRoute * inet::Rip::findRipRoute ( const IRoute *  route )

private

{
    for (auto& elem : ripRoutingTable)
        if ((elem)->getRoute() == route)
            return elem;

    return nullptr;
}

findRipRoute() [2/4]

RipRoute * inet::Rip::findRipRoute ( const L3Address &  destAddress, int  prefixLength  )

private

{
    for (auto& elem : ripRoutingTable)
        if ((elem)->getDestination() == destination && (elem)->getPrefixLength() == prefixLength)
            return elem;

    return nullptr;
}

Referenced by processRequest(), processResponse(), and receiveSignal().

findRipRoute() [3/4]

RipRoute * inet::Rip::findRipRoute ( const L3Address &  destination, int  prefixLength, RipRoute::RouteType  type  )

private

{
    for (auto& elem : ripRoutingTable)
        if ((elem)->getType() == type && (elem)->getDestination() == destination && (elem)->getPrefixLength() == prefixLength)
            return elem;

    return nullptr;
}

findRipRoute() [4/4]

RipRoute * inet::Rip::findRipRoute ( const NetworkInterface *  ie, RipRoute::RouteType  type  )

private

{
    for (auto& elem : ripRoutingTable)
        if ((elem)->getType() == type && (elem)->getInterface() == ie)
            return elem;

    return nullptr;
}

getInterfaceMetric()

int inet::Rip::getInterfaceMetric ( NetworkInterface *  ie )

private

{
    RipNetworkInterface *ripIe = findRipInterfaceById(ie->getInterfaceId());
    return ripIe ? ripIe->metric : 1;
}

Referenced by receiveSignal(), and startRIPRouting().

handleCrashOperation()

void inet::Rip::handleCrashOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    stopRIPRouting();
}

handleMessageWhenUp()

void inet::Rip::handleMessageWhenUp ( cMessage *  msg )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    if (msg->isSelfMessage()) {
        if (msg == updateTimer) {
            processUpdate(false);
            scheduleAfter(updateInterval, msg);
        }
        else if (msg == triggeredUpdateTimer) {
            processUpdate(true);
        }
        else if (msg == startupTimer) {
            startRIPRouting();
        }
        else if (msg == shutdownTimer) {
            ASSERT(operationalState == State::STOPPING_OPERATION);
            finishActiveOperation();
        }
        else
            throw cRuntimeError("unknown self message");
    }
    else if (msg->getKind() == UDP_I_DATA) {
        Packet *pk = check_and_cast<Packet *>(msg);
        unsigned char command = pk->peekAtFront<RipPacket>()->getCommand();
        if (command == RIP_REQUEST)
            processRequest(pk);
        else if (command == RIP_RESPONSE)
            processResponse(pk);
        else
            throw cRuntimeError("RIP: unknown command (%d)", (int)command);
    }
    else if (msg->getKind() == UDP_I_ERROR) {
        EV_DETAIL << "Ignoring UDP error report\n";
        delete msg;
    }
    else if (msg->getKind() == UDP_I_SOCKET_CLOSED) {
        EV_DETAIL << "Ignoring UDP socket closed indication\n";
        delete msg;
    }
    else
        throw cRuntimeError("RIP: unknown msg kind (%d)", (int)msg->getKind());
}

handleStartOperation()

void inet::Rip::handleStartOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    rescheduleAfter(par("startupTime"), startupTimer);
}

handleStopOperation()

void inet::Rip::handleStopOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    // invalidate routes
    for (auto& elem : ripRoutingTable)
        invalidateRoute(elem);
    // send updates to neighbors
    for (auto& elem : ripInterfaces)
        sendRoutes(addressType->getLinkLocalRIPRoutersMulticastAddress(), ripUdpPort, elem, false);

    stopRIPRouting();

    // wait a few seconds before calling doneCallback, so that UDP can send the messages
    scheduleAfter(shutdownTime, shutdownTimer);
    delayActiveOperationFinish(par("stopOperationTimeout"));
}

importRoute()

RipRoute * inet::Rip::importRoute ( IRoute *  route, RipRoute::RouteType  type, int  metric = 1, uint16_t  routeTag = 0  )

protectedvirtual

Adds a new route the RIP routing table for an existing IRoute.

This route will be advertised with the specified metric and routeTag fields.

{
    ASSERT(metric < RIP_INFINITE_METRIC);

    RipRoute *ripRoute = new RipRoute(route, type, metric, routeTag);
    if (type == RipRoute::RIP_ROUTE_INTERFACE) {
        NetworkInterface *ie = check_and_cast<NetworkInterface *>(route->getSource());
        ripRoute->setInterface(ie);
    }

    ripRoutingTable.push_back(ripRoute);
    emit(numRoutesSignal, (unsigned long)ripRoutingTable.size());
    return ripRoute;
}

Referenced by receiveSignal(), and startRIPRouting().

initialize()

void inet::Rip::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

{
    RoutingProtocolBase::initialize(stage);

    if (stage == INITSTAGE_LOCAL) {
        host = getContainingNode(this);
        ift.reference(this, "interfaceTableModule", true);
        rt.reference(this, "routingTableModule", true);
        socket.setOutputGate(gate("socketOut"));

        const char *m = par("mode");
        if (!m)
            throw cRuntimeError("Missing 'mode' parameter.");
        else if (!strcmp(m, "RIPv2"))
            mode = RIPv2;
        else if (!strcmp(m, "RIPng"))
            mode = RIPng;
        else
            throw cRuntimeError("Unrecognized 'mode' parameter: %s", m);

        ripUdpPort = par("udpPort");
        updateInterval = par("updateInterval");
        routeExpiryTime = par("routeExpiryTime");
        routePurgeTime = par("routePurgeTime");
        holdDownTime = par("holdDownTime");
        shutdownTime = par("shutdownTime");
        triggeredUpdate = par("triggeredUpdate");

        updateTimer = new cMessage("RIP-timer");
        triggeredUpdateTimer = new cMessage("RIP-trigger");
        startupTimer = new cMessage("RIP-startup");
        shutdownTimer = new cMessage("RIP-shutdown");

        WATCH_VECTOR(ripInterfaces);
        WATCH_PTRVECTOR(ripRoutingTable);
    }
}

invalidateRoute()

void inet::Rip::invalidateRoute ( RipRoute *  route )

protectedvirtual

{
    EV_INFO << "invalidating route dest:" << ripRoute->getDestination() << "\n";

    IRoute *route = ripRoute->getRoute();
    if (route) {
        ripRoute->setRoute(nullptr);
        rt->deleteRoute(route);
    }
    ripRoute->setMetric(RIP_INFINITE_METRIC);
    ripRoute->setChanged(true);
    ripRoute->setLastInvalidationTime(simTime());
    triggerUpdate();
}

Referenced by checkExpiredRoutes(), handleStopOperation(), receiveSignal(), and updateRoute().

isDefaultRoute()

bool inet::Rip::isDefaultRoute ( const IRoute *  route )

inlineprivate

{ return route->getPrefixLength() == 0; }

Referenced by startRIPRouting().

isLocalInterfaceRoute()

bool inet::Rip::isLocalInterfaceRoute ( const IRoute *  route )

inlineprivate

                                                    {
        NetworkInterface *ie = dynamic_cast<NetworkInterface *>(route->getSource());
        return ie && !ie->isLoopback();
    }

Referenced by receiveSignal(), and startRIPRouting().

isLoopbackInterfaceRoute()

bool inet::Rip::isLoopbackInterfaceRoute ( const IRoute *  route )

inlineprivate

                                                       {
        NetworkInterface *ie = dynamic_cast<NetworkInterface *>(route->getSource());
        return ie && ie->isLoopback();
    }

Referenced by receiveSignal(), and startRIPRouting().

isValidResponse()

bool inet::Rip::isValidResponse ( Packet *  packet )

protectedvirtual

{
    // check that received from ripUdpPort
    if (packet->getTag<L4PortInd>()->getSrcPort() != ripUdpPort) {
        EV_WARN << "source port is not " << ripUdpPort << "\n";
        return false;
    }

    L3Address srcAddr = packet->getTag<L3AddressInd>()->getSrcAddress();

    // check that it is not our response (received own multicast message)
    if (rt->isLocalAddress(srcAddr)) {
        EV_WARN << "received own response\n";
        return false;
    }

    if (mode == RIPng) {
        if (!srcAddr.isLinkLocal()) {
            EV_WARN << "source address is not link-local: " << srcAddr << "\n";
            return false;
        }
        if (packet->getTag<HopLimitInd>()->getHopLimit() != 255) {
            EV_WARN << "ttl is not 255";
            return false;
        }
    }
    else {
        // check that source is on a directly connected network
        if (!ift->isNeighborAddress(srcAddr)) {
            EV_WARN << "source is not directly connected " << srcAddr << "\n";
            return false;
        }
    }

    const auto& ripPacket = packet->peekAtFront<RipPacket>();
    // validate entries
    int numEntries = ripPacket->getEntryArraySize();
    for (int i = 0; i < numEntries; ++i) {
        const RipEntry& entry = ripPacket->getEntry(i);

        // check that metric is in range [0,16]
        if (entry.metric < 0 || entry.metric > RIP_INFINITE_METRIC) {
            EV_WARN << "received metric is not in the [0," << RIP_INFINITE_METRIC << "] range.\n";
            return false;
        }

        // check that destination address is a unicast address
        // TODO exclude 0.x.x.x, 127.x.x.x too
        if (!entry.address.isUnicast()) {
            EV_WARN << "destination address of an entry is not unicast: " << entry.address << "\n";
            return false;
        }

        if (mode == RIPng) {
            if (entry.address.isLinkLocal()) {
                EV_WARN << "destination address of an entry is link-local: " << entry.address << "\n";
                return false;
            }
            if (entry.prefixLength < 0 || entry.prefixLength > addressType->getMaxPrefixLength()) {
                EV_WARN << "prefixLength is outside of the [0," << addressType->getMaxPrefixLength() << "] interval\n";
                return false;
            }
        }
    }

    return true;
}

Referenced by processResponse().

numInitStages()

virtual int inet::Rip::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

processRequest()

void inet::Rip::processRequest ( Packet *  packet )

protectedvirtual

Processes a request received from a RIP router or a monitoring process.

The request processing follows the guidelines described in RFC 2453 3.9.1.

There are two cases:

• the request enumerates the requested prefixes There is an RipEntry for each requested route in the packet. The RIP module simply looks up the prefix in its table, and if it sets the metric field of the entry to the metric of the found route, or to infinity (16) if not found. Once all entries are have been filled in, change the command from Request to Response, and sent the packet back to the requester. If there are no entries in the request, then no response is sent; the request is silently discarded.
• the whole routing table is requested In this case the RipPacket contains only one entry, with addressFamilyId 0, and metric 16 (infinity). In this case the whole routing table is sent, using the normal output process (sendRoutes() method).

{
    const auto& ripPacket = dynamicPtrCast<RipPacket>(packet->peekAtFront<RipPacket>()->dupShared());

    int numEntries = ripPacket->getEntryArraySize();
    if (numEntries == 0) {
        EV_INFO << "received empty request, ignoring.\n";
        delete packet;
        return;
    }

    L3Address srcAddr = packet->getTag<L3AddressInd>()->getSrcAddress();
    int srcPort = packet->getTag<L4PortInd>()->getSrcPort();
    int interfaceId = packet->getTag<InterfaceInd>()->getInterfaceId();

    EV_INFO << "received request from " << srcAddr << "\n";

    for (int i = 0; i < numEntries; ++i) {
        RipEntry& entry = ripPacket->getEntryForUpdate(i);
        switch (entry.addressFamilyId) {
            case RIP_AF_NONE:
                if (numEntries == 1 && entry.metric == RIP_INFINITE_METRIC) {
                    RipNetworkInterface *ripInterface = findRipInterfaceById(interfaceId);
                    if (ripInterface)
                        sendRoutes(srcAddr, srcPort, *ripInterface, false);
                    delete packet;
                    return;
                }
                else {
                    throw cRuntimeError("RIP: invalid request.");
                }
                break;

            case RIP_AF_INET: {
                RipRoute *ripRoute = findRipRoute(entry.address, entry.prefixLength);
                entry.metric = ripRoute ? ripRoute->getMetric() : RIP_INFINITE_METRIC;
                // entry.nextHop, entry.routeTag?
                break;
            }

            default:
                throw cRuntimeError("RIP: request has invalid addressFamilyId: %d.", (int)entry.addressFamilyId);
        }
    }

    ripPacket->setCommand(RIP_RESPONSE);
    Packet *outPacket = new Packet("RIP response");
    outPacket->insertAtBack(ripPacket);
    socket.sendTo(outPacket, srcAddr, srcPort);
}

Referenced by handleMessageWhenUp().

processResponse()

void inet::Rip::processResponse ( Packet *  packet )

protectedvirtual

Processes the RIP response and updates the routing table.

First it validates the packet to avoid corrupting the routing table with a wrong packet. Valid responses must come from a neighboring RIP router.

Next each RipEntry is processed one by one. Check that destination address and metric are valid. Then compute the new metric by adding the metric of the interface to the metric found in the entry.

If there is no route to the destination, and the new metric is not infinity, then add a new route to the routing table.

If there is an existing route to the destination,

1. validate packet
2. for each entry: metric = MIN(p.metric + cost of if it arrived at, infinity) if there is no route for the dest address: add new route to the routing table unless the metric is infinity else: if received from the route.gateway reinitialize timeout if (received from route.gateway AND route.metric != metric) OR metric < route.metric updateRoute(route)

{
    emit(rcvdResponseSignal, packet);

    bool isValid = isValidResponse(packet);
    if (!isValid) {
        EV_INFO << "dropping invalid response.\n";
        emit(badResponseSignal, packet);
        delete packet;
        return;
    }

    L3Address srcAddr = packet->getTag<L3AddressInd>()->getSrcAddress();
    int interfaceId = packet->getTag<InterfaceInd>()->getInterfaceId();
    packet->clearTags();

    RipNetworkInterface *incomingIe = findRipInterfaceById(interfaceId);
    if (!incomingIe) {
        EV_INFO << "dropping unexpected RIP response.\n";
        emit(badResponseSignal, packet);
        delete packet;
        return;
    }

    const auto& ripPacket = packet->peekAtFront<RipPacket>();

    EV_INFO << "response received from " << srcAddr << "\n";
    int numEntries = ripPacket->getEntryArraySize();
    for (int i = 0; i < numEntries; ++i) {
        const RipEntry& entry = ripPacket->getEntry(i);
        int metric = std::min((int)entry.metric + std::max(incomingIe->metric, 1), RIP_INFINITE_METRIC);
        L3Address nextHop = entry.nextHop.isUnspecified() ? srcAddr : entry.nextHop;

        RipRoute *ripRoute = findRipRoute(entry.address, entry.prefixLength);
        if (ripRoute) {
            RipRoute::RouteType routeType = ripRoute->getType();
            int routeMetric = ripRoute->getMetric();
            L3Address fromAddr = ripRoute->getFrom();

            if ((routeType == RipRoute::RIP_ROUTE_STATIC || routeType == RipRoute::RIP_ROUTE_DEFAULT) && routeMetric != RIP_INFINITE_METRIC)
                continue;

            if (fromAddr == srcAddr)
                ripRoute->setLastUpdateTime(simTime());

            if (metric < routeMetric || (fromAddr == srcAddr && routeMetric != metric)) {
                bool preventRouteUpdate = false;
                // we receive a route update that shows the unreachable route is now reachable
                if (routeMetric == RIP_INFINITE_METRIC && metric < RIP_INFINITE_METRIC) {
                    if (holdDownTime > 0 && simTime() < ripRoute->getLastInvalidationTime() + holdDownTime) {
                        EV_DEBUG << "hold-down timer prevents update to route " << ripRoute->getDestination() << std::endl;
                        preventRouteUpdate = true;
                    }
                    else {
                        IRoute *route = ripRoute->getRoute();
                        if (route && route->getMetric() <= metric) {
                            EV_DEBUG << "existing route " << ripRoute->getDestination() << " has a better metric" << std::endl;
                            preventRouteUpdate = true;
                        }
                    }
                }

                if (!preventRouteUpdate)
                    updateRoute(ripRoute, incomingIe->ie, nextHop, metric, entry.routeTag, srcAddr);
            }

            // TODO RIPng: if the metric is the same as the old one, and the old route is about to expire (i.e. at least halfway to the expiration point)
            //             then update the old route with the new RTE
        }
        else {
            if (metric != RIP_INFINITE_METRIC)
                addRoute(entry.address, entry.prefixLength, incomingIe->ie, nextHop, metric, entry.routeTag, srcAddr);
        }
    }

    delete packet;
}

Referenced by handleMessageWhenUp().

processUpdate()

void inet::Rip::processUpdate ( bool  triggered )

protectedvirtual

This method called when a triggered or regular update timer expired.

It either sends the changed/all routes to neighbors.

{
    if (triggered)
        EV_INFO << "sending triggered updates on all interfaces.\n";
    else
        EV_INFO << "sending regular updates on all interfaces\n";

    for (auto& ripInterface : ripInterfaces)
        if (ripInterface.ie->isUp())
            sendRoutes(addressType->getLinkLocalRIPRoutersMulticastAddress(), ripUdpPort, ripInterface, triggered);

    // clear changed flags
    for (auto& ripRoute : ripRoutingTable)
        ripRoute->setChanged(false);
}

Referenced by handleMessageWhenUp().

purgeRoute()

Rip::RouteVector::iterator inet::Rip::purgeRoute ( RipRoute *  route )

protectedvirtual

Removes the route from the routing table.

{
    ASSERT(ripRoute->getType() == RipRoute::RIP_ROUTE_RTE);

    EV_INFO << "purging route dest:" << ripRoute->getDestination() << "\n";

    IRoute *route = ripRoute->getRoute();
    if (route) {
        ripRoute->setRoute(nullptr);
        rt->deleteRoute(route);
    }

    // erase the ripRoute from the vector
    auto itt = ripRoutingTable.erase(find(ripRoutingTable, ripRoute));

    delete ripRoute;
    ripRoute = nullptr;

    emit(numRoutesSignal, (unsigned long)ripRoutingTable.size());

    // return the iterator that points to the next element after the deleted one
    return itt;
}

Referenced by checkExpiredRoutes().

receiveSignal()

void inet::Rip::receiveSignal ( cComponent *  source, simsignal_t  signalID, cObject *  obj, cObject *  details  )

overrideprotectedvirtual

Listen on interface/route changes and update private data structures.

{
    Enter_Method("%s", cComponent::getSignalName(signalID));

    const NetworkInterface *ie;
    const NetworkInterfaceChangeDetails *change;

    if (signalID == interfaceCreatedSignal) {
        // configure interface for RIP
        ie = check_and_cast<const NetworkInterface *>(obj);
        if (ie->isMulticast() && !ie->isLoopback()) {
            cXMLElementList config = par("ripConfig").xmlValue()->getChildrenByTagName("interface");
            int i = InterfaceMatcher(config).findMatchingSelector(ie);
            if (i >= 0)
                addRipInterface(ie, config[i]);
        }
    }
    else if (signalID == interfaceDeletedSignal) {
        // delete interfaces and routes referencing the deleted interface
        ie = check_and_cast<const NetworkInterface *>(obj);
        deleteRipInterface(ie);
    }
    else if (signalID == interfaceStateChangedSignal) {
        change = check_and_cast<const NetworkInterfaceChangeDetails *>(obj);
        auto fieldId = change->getFieldId();
        if (fieldId == NetworkInterface::F_STATE || fieldId == NetworkInterface::F_CARRIER) {
            ie = change->getNetworkInterface();
            if (!ie->isUp()) {
                for (auto& elem : ripRoutingTable)
                    if ((elem)->getInterface() == ie) {
                        invalidateRoute(elem);
                    }
            }
            else {
                RipNetworkInterface *ripInterfacePtr = findRipInterfaceById(ie->getInterfaceId());
                if (ripInterfacePtr && ripInterfacePtr->mode != NO_RIP && ripInterfacePtr->mode != PASSIVE)
                    sendRIPRequest(*ripInterfacePtr);
            }
        }
    }
    else if (signalID == routeDeletedSignal) {
        // remove references to the deleted route and invalidate the RIP route
        const IRoute *route = check_and_cast<const IRoute *>(obj);
        for (auto& elem : ripRoutingTable) {
            if ((elem)->getRoute() == route) {
                (elem)->setRoute(nullptr);
                if (route->getSource() != this) {
                    invalidateRoute(elem);
                }
            }
        }
    }
    else if (signalID == routeAddedSignal) {
        // add or update the RIP route
        IRoute *route = const_cast<IRoute *>(check_and_cast<const IRoute *>(obj));
        if (route->getSource() != this) {
            if (isLoopbackInterfaceRoute(route))
                ; // void
            else if (isLocalInterfaceRoute(route)) {
                NetworkInterface *ie = check_and_cast<NetworkInterface *>(route->getSource());
                RipRoute *ripRoute = findRipRoute(ie, RipRoute::RIP_ROUTE_INTERFACE);
                if (ripRoute) { // readded
                    RipNetworkInterface *ripIe = findRipInterfaceById(ie->getInterfaceId());
                    ripRoute->setRoute(route);
                    ripRoute->setMetric(ripIe ? ripIe->metric : 1);
                    ripRoute->setChanged(true);
                    triggerUpdate();
                }
                else {
                    RipNetworkInterface *ripIe = findRipInterfaceById(ie->getInterfaceId());
                    if (!ripIe || ripIe->mode != NO_RIP)
                        importRoute(route, RipRoute::RIP_ROUTE_INTERFACE, getInterfaceMetric(ie));
                }
            }
            else {
                // TODO import external routes from other routing daemons
            }
        }
    }
    else if (signalID == routeChangedSignal) {
        const IRoute *route = check_and_cast<const IRoute *>(obj);
        if (route->getSource() != this) {
            RipRoute *ripRoute = findRipRoute(route);
            if (ripRoute) {
                // TODO check and update tag
                bool changed = route->getDestinationAsGeneric() != ripRoute->getDestination() ||
                    route->getPrefixLength() != ripRoute->getPrefixLength() ||
                    route->getNextHopAsGeneric() != ripRoute->getNextHop() ||
                    route->getInterface() != ripRoute->getInterface();
                ripRoute->setDestination(route->getDestinationAsGeneric());
                ripRoute->setPrefixLength(route->getPrefixLength());
                ripRoute->setNextHop(route->getNextHopAsGeneric());
                ripRoute->setInterface(route->getInterface());
                if (changed) {
                    ripRoute->setChanged(true);
                    triggerUpdate();
                }
            }
        }
    }
    else
        throw cRuntimeError("Unexpected signal: %s", getSignalName(signalID));
}

sendPacket()

void inet::Rip::sendPacket ( Packet *  packet, const L3Address &  destAddr, int  destPort, const NetworkInterface *  destInterface  )

protectedvirtual

Sends the packet to the specified destination.

If the destAddr is a multicast, then the destInterface must be specified.

{
    if (destAddr.isMulticast()) {
        packet->addTagIfAbsent<InterfaceReq>()->setInterfaceId(destInterface->getInterfaceId());
        if (mode == RIPng) {
            socket.setTimeToLive(255);
            packet->addTagIfAbsent<L3AddressReq>()->setSrcAddress(addressType->getLinkLocalAddress(destInterface));
        }
    }
    socket.sendTo(packet, destAddr, destPort);
}

Referenced by sendRIPRequest(), and sendRoutes().

sendRIPRequest()

void inet::Rip::sendRIPRequest ( const RipNetworkInterface &  ripInterface )

protectedvirtual

Sends a RIP request to routers on the specified link.

{
    const auto& packet = makeShared<RipPacket>();
    packet->setCommand(RIP_REQUEST);
    packet->setEntryArraySize(1);
    RipEntry& entry = packet->getEntryForUpdate(0);
    entry.addressFamilyId = RIP_AF_NONE;
    entry.metric = RIP_INFINITE_METRIC;
    packet->setChunkLength(RIP_HEADER_SIZE + RIP_RTE_SIZE * packet->getEntryArraySize());

    EV_INFO << "sending RIP request from " << ripInterface.ie->getInterfaceName() << "\n";

    Packet *pk = new Packet("RIP request");
    pk->insertAtBack(packet);
    emit(sentRequestSignal, pk);
    sendPacket(pk, addressType->getLinkLocalRIPRoutersMulticastAddress(), ripUdpPort, ripInterface.ie);
}

Referenced by receiveSignal(), and startRIPRouting().

sendRoutes()

void inet::Rip::sendRoutes ( const L3Address &  address, int  port, const RipNetworkInterface &  ripInterface, bool  changedOnly  )

protectedvirtual

Send all or changed part of the routing table to address/port on the specified interface.

This method is called by regular updates (every 30s), triggered updates (when some route changed), and when RIP requests are processed.

{
    if (ripInterface.mode == NO_RIP)
        return;

    if (ripInterface.mode == PASSIVE) {
        EV_DEBUG << "No update is sent from passive interface " << ripInterface.ie->getFullName() << std::endl;
        checkExpiredRoutes();
        return;
    }

    EV_DEBUG << "Sending " << (changedOnly ? "changed" : "all") << " routes on " << ripInterface.ie->getFullName() << std::endl;

    int maxEntries = mode == RIPv2 ? 25 : B(B(ripInterface.ie->getMtu()) - IPv6_HEADER_BYTES - UDP_HEADER_LENGTH - RIP_HEADER_SIZE).get() / RIP_RTE_SIZE.get();

    Packet *pk = new Packet("RIP response");
    auto packet = makeShared<RipPacket>();
    packet->setCommand(RIP_RESPONSE);
    packet->setEntryArraySize(maxEntries);
    int k = 0; // index into RIP entries

    checkExpiredRoutes();

    for (auto& ripRoute : ripRoutingTable) {
        // this is a triggered update
        if (changedOnly) {

            // make sure triggered update is active
            ASSERT(triggeredUpdate);

            if (!ripRoute->isChanged())
                continue;
        }

        // Split Horizon check:
        //   Omit routes learned from one neighbor in updates sent to that neighbor.
        //   In the case of a broadcast network, all routes learned from any neighbor on
        //   that network are omitted from updates sent on that network.
        // Split Horizon with Poisoned Reverse:
        //   Do include such routes in updates, but sets their metrics to infinity.
        int metric = ripRoute->getMetric();
        if (ripRoute->getInterface() == ripInterface.ie) {
            if (ripInterface.mode == SPLIT_HORIZON)
                continue;
            else if (ripInterface.mode == SPLIT_HORIZON_POISON_REVERSE)
                metric = RIP_INFINITE_METRIC;
        }

        EV_DEBUG << "Add entry for " << ripRoute->getDestination() << "/" << ripRoute->getPrefixLength() << ": "
                 << " metric=" << metric << std::endl;

        // fill next entry
        RipEntry& entry = packet->getEntryForUpdate(k++);
        entry.addressFamilyId = RIP_AF_INET;
        entry.address = ripRoute->getDestination();
        entry.prefixLength = ripRoute->getPrefixLength();
        entry.nextHop = addressType->getUnspecifiedAddress(); // route->getNextHop() if local ?
        entry.routeTag = ripRoute->getRouteTag();
        entry.metric = metric;

        // if packet is full, then send it and allocate a new one
        if (k >= maxEntries) {
            packet->setChunkLength(RIP_HEADER_SIZE + RIP_RTE_SIZE * packet->getEntryArraySize());
            pk->insertAtBack(packet);

            emit(sentUpdateSignal, pk);
            sendPacket(pk, address, port, ripInterface.ie);
            pk = new Packet("RIP response");
            packet = makeShared<RipPacket>();
            packet->setCommand(RIP_RESPONSE);
            packet->setEntryArraySize(maxEntries);
            k = 0;
        }
    }

    // send last packet if it has entries
    if (k > 0) {
        packet->setEntryArraySize(k);
        packet->setChunkLength(RIP_HEADER_SIZE + RIP_RTE_SIZE * packet->getEntryArraySize());
        pk->insertAtBack(packet);

        emit(sentUpdateSignal, pk);
        sendPacket(pk, address, port, ripInterface.ie);
    }
    else
        delete pk;
}

Referenced by handleStopOperation(), processRequest(), and processUpdate().

startRIPRouting()

void inet::Rip::startRIPRouting ( )

protectedvirtual

{
    addressType = rt->getRouterIdAsGeneric().getAddressType();

    cXMLElementList interfaceElements = par("ripConfig").xmlValue()->getChildrenByTagName("interface");
    InterfaceMatcher matcher(interfaceElements);

    // Creates a RipNetworkInterface for each interface found in the 'interface table'.
    for (int k = 0; k < ift->getNumInterfaces(); ++k) {
        NetworkInterface *ie = ift->getInterface(k);
        if (ie->isMulticast() && !ie->isLoopback()) {
            int i = matcher.findMatchingSelector(ie);
            addRipInterface(ie, i >= 0 ? interfaceElements[i] : nullptr);
        }
    }

    // Import interface/static/default routes from the 'routing table'.
    for (int i = 0; i < rt->getNumRoutes(); ++i) {
        IRoute *route = rt->getRoute(i);
        if (isLoopbackInterfaceRoute(route))
            ; // void
        else if (isLocalInterfaceRoute(route)) {
            NetworkInterface *ie = check_and_cast<NetworkInterface *>(route->getSource());
            RipNetworkInterface *ripIe = findRipInterfaceById(ie->getInterfaceId());
            if (!ripIe || ripIe->mode != NO_RIP)
                importRoute(route, RipRoute::RIP_ROUTE_INTERFACE, getInterfaceMetric(ie));
        }
        else if (isDefaultRoute(route))
            importRoute(route, RipRoute::RIP_ROUTE_DEFAULT);
        else {
            const L3Address& destAddr = route->getDestinationAsGeneric();
            if (!destAddr.isMulticast() && !destAddr.isLinkLocal())
                importRoute(route, RipRoute::RIP_ROUTE_STATIC);
        }
    }

    // subscribe to interface created/deleted/changed notifications
    host->subscribe(interfaceCreatedSignal, this);
    host->subscribe(interfaceDeletedSignal, this);
    host->subscribe(interfaceStateChangedSignal, this);

    // subscribe to route added/deleted/changed notifications
    host->subscribe(routeAddedSignal, this);
    host->subscribe(routeDeletedSignal, this);
    host->subscribe(routeChangedSignal, this);

    // configure socket
    socket.setMulticastLoop(false);
    socket.bind(ripUdpPort);

    for (auto& elem : ripInterfaces)
        if (elem.mode != NO_RIP && elem.mode != PASSIVE)
            socket.joinMulticastGroup(addressType->getLinkLocalRIPRoutersMulticastAddress(), elem.ie->getInterfaceId());

    for (auto& elem : ripInterfaces)
        if (elem.mode != NO_RIP && elem.mode != PASSIVE)
            sendRIPRequest(elem);

    // set update timer
    scheduleAfter(updateInterval, updateTimer);
}

Referenced by handleMessageWhenUp().

stopRIPRouting()

void inet::Rip::stopRIPRouting ( )

protectedvirtual

{
    if (startupTimer->isScheduled())
        cancelEvent(startupTimer);
    else {
        socket.close();

        // unsubscribe to notifications
        host->unsubscribe(interfaceCreatedSignal, this);
        host->unsubscribe(interfaceDeletedSignal, this);
        host->unsubscribe(interfaceStateChangedSignal, this);
        host->unsubscribe(routeDeletedSignal, this);
        host->unsubscribe(routeAddedSignal, this);
        host->unsubscribe(routeChangedSignal, this);
    }

    // cancel timers
    cancelEvent(updateTimer);
    cancelEvent(triggeredUpdateTimer);

    // clear data
    for (auto& elem : ripRoutingTable)
        delete elem;
    ripRoutingTable.clear();
    ripInterfaces.clear();
}

Referenced by handleCrashOperation(), and handleStopOperation().

triggerUpdate()

void inet::Rip::triggerUpdate ( )

protectedvirtual

Sets the update timer to trigger an update in the [1s,5s] interval.

If the update is already scheduled, it does nothing.

{
    if (triggeredUpdate && !triggeredUpdateTimer->isScheduled()) {
        double delay = par("triggeredUpdateDelay");
        // Triggered updates may be suppressed if a regular
        // update is due by the time the triggered update would be sent.
        if (!updateTimer->isScheduled() || updateTimer->getArrivalTime() > simTime() + delay) {
            EV_DETAIL << "scheduling triggered update \n";
            scheduleAfter(delay, triggeredUpdateTimer);
        }
    }
}

Referenced by addRoute(), invalidateRoute(), receiveSignal(), and updateRoute().

updateRoute()

void inet::Rip::updateRoute ( RipRoute *  ripRoute, const NetworkInterface *  ie, const L3Address &  nextHop, int  metric, uint16_t  routeTag, const L3Address &  from  )

protectedvirtual

Updates an existing route with the information learned from a RIP packet.

If the metric is infinite (16), then the route is invalidated. It triggers an update, so neighbor routers are notified about the change.

RFC 2453 3.9.2:

Do the following actions:

• Adopt the route from the datagram (i.e., put the new metric in and adjust the next hop address, if necessary).
• Set the route change flag and signal the output process to trigger an update
• If the new metric is infinity, start the deletion process (described above); otherwise, re-initialize the timeout

{
    EV_DEBUG << "Updating route to " << ripRoute->getDestination() << "/" << ripRoute->getPrefixLength() << ": "
             << "nextHop=" << nextHop << " metric=" << metric << std::endl;

    int oldMetric = ripRoute->getMetric();

    ripRoute->setInterface(const_cast<NetworkInterface *>(ie));
    ripRoute->setMetric(metric);
    ripRoute->setFrom(from);
    ripRoute->setRouteTag(routeTag);

    if (oldMetric == RIP_INFINITE_METRIC && metric < RIP_INFINITE_METRIC) {
        IRoute *route = ripRoute->getRoute();
        if (route)
            rt->deleteRoute(route);
        ripRoute->setType(RipRoute::RIP_ROUTE_RTE);
        ripRoute->setNextHop(nextHop);
        IRoute *newRoute = createRoute(ripRoute->getDestination(), ripRoute->getPrefixLength(), ie, nextHop, metric);
        ripRoute->setRoute(newRoute);
    }

    if (oldMetric != RIP_INFINITE_METRIC) {
        IRoute *route = ripRoute->getRoute();
        ASSERT(route);
        rt->deleteRoute(route);

        ripRoute->setRoute(nullptr);
        ripRoute->setNextHop(nextHop);

        if (metric < RIP_INFINITE_METRIC) {
            IRoute *newRoute = createRoute(ripRoute->getDestination(), ripRoute->getPrefixLength(), ie, nextHop, metric);
            ripRoute->setRoute(newRoute);
        }
    }

    ripRoute->setChanged(true);
    triggerUpdate();

    if (oldMetric != RIP_INFINITE_METRIC && metric == RIP_INFINITE_METRIC)
        invalidateRoute(ripRoute);
    else
        ripRoute->setLastUpdateTime(simTime());
}

Referenced by processResponse().

Member Data Documentation

addressType

IL3AddressType* inet::Rip::addressType = nullptr

private

Referenced by handleStopOperation(), isValidResponse(), processUpdate(), sendPacket(), sendRIPRequest(), sendRoutes(), and startRIPRouting().

badResponseSignal

simsignal_t inet::Rip::badResponseSignal = registerSignal("badResponse")

staticprivate

Referenced by processResponse().

holdDownTime

simtime_t inet::Rip::holdDownTime

private

Referenced by initialize(), and processResponse().

host

cModule* inet::Rip::host = nullptr

private

Referenced by initialize(), startRIPRouting(), and stopRIPRouting().

ift

ModuleRefByPar<IInterfaceTable> inet::Rip::ift

private

Referenced by initialize(), isValidResponse(), and startRIPRouting().

mode

Mode inet::Rip::mode = static_cast<Mode>(-1)

private

Referenced by addRipInterface(), initialize(), isValidResponse(), sendPacket(), and sendRoutes().

numRoutesSignal

simsignal_t inet::Rip::numRoutesSignal = registerSignal("numRoutes")

staticprivate

Referenced by addRoute(), deleteRipInterface(), importRoute(), and purgeRoute().

rcvdResponseSignal

simsignal_t inet::Rip::rcvdResponseSignal = registerSignal("rcvdResponse")

staticprivate

Referenced by processResponse().

ripInterfaces

InterfaceVector inet::Rip::ripInterfaces

private

Referenced by addRipInterface(), deleteRipInterface(), findRipInterfaceById(), handleStopOperation(), initialize(), processUpdate(), startRIPRouting(), and stopRIPRouting().

ripRoutingTable

RouteVector inet::Rip::ripRoutingTable

private

Referenced by addRoute(), checkExpiredRoutes(), deleteRipInterface(), findRipRoute(), handleStopOperation(), importRoute(), initialize(), processUpdate(), purgeRoute(), receiveSignal(), sendRoutes(), stopRIPRouting(), and ~Rip().

ripUdpPort

int inet::Rip::ripUdpPort = -1

private

Referenced by handleStopOperation(), initialize(), isValidResponse(), processUpdate(), sendRIPRequest(), and startRIPRouting().

routeExpiryTime

simtime_t inet::Rip::routeExpiryTime

private

Referenced by checkExpiredRoutes(), and initialize().

routePurgeTime

simtime_t inet::Rip::routePurgeTime

private

Referenced by checkExpiredRoutes(), and initialize().

rt

ModuleRefByPar<IRoutingTable> inet::Rip::rt

private

Referenced by createRoute(), initialize(), invalidateRoute(), isValidResponse(), purgeRoute(), startRIPRouting(), and updateRoute().

sentRequestSignal

simsignal_t inet::Rip::sentRequestSignal = registerSignal("sentRequest")

staticprivate

Referenced by sendRIPRequest().

sentUpdateSignal

simsignal_t inet::Rip::sentUpdateSignal = registerSignal("sentUpdate")

staticprivate

Referenced by sendRoutes().

shutdownTime

simtime_t inet::Rip::shutdownTime

private

Referenced by handleStopOperation(), and initialize().

shutdownTimer

cMessage* inet::Rip::shutdownTimer = nullptr

private

Referenced by handleMessageWhenUp(), handleStopOperation(), initialize(), and ~Rip().

socket

UdpSocket inet::Rip::socket

private

Referenced by initialize(), processRequest(), sendPacket(), startRIPRouting(), and stopRIPRouting().

startupTimer

cMessage* inet::Rip::startupTimer = nullptr

private

Referenced by handleMessageWhenUp(), handleStartOperation(), initialize(), stopRIPRouting(), and ~Rip().

triggeredUpdate

bool inet::Rip::triggeredUpdate = false

private

Referenced by initialize(), sendRoutes(), and triggerUpdate().

triggeredUpdateTimer

cMessage* inet::Rip::triggeredUpdateTimer = nullptr

private

Referenced by handleMessageWhenUp(), initialize(), stopRIPRouting(), triggerUpdate(), and ~Rip().

updateInterval

simtime_t inet::Rip::updateInterval

private

Referenced by handleMessageWhenUp(), initialize(), and startRIPRouting().

updateTimer

cMessage* inet::Rip::updateTimer = nullptr

private

Referenced by handleMessageWhenUp(), initialize(), startRIPRouting(), stopRIPRouting(), triggerUpdate(), and ~Rip().

---

The documentation for this class was generated from the following files:

• Rip.h
• Rip.cc
