inet::ResidenceTimeTag Class Reference

Class generated from inet/common/TimeTag.msg:27 by opp_msgtool. More...

#include <TimeTag_m.h>

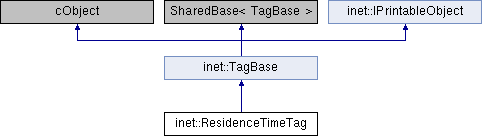

Inheritance diagram for inet::ResidenceTimeTag:

Public Member Functions
	ResidenceTimeTag ()
	ResidenceTimeTag (const ResidenceTimeTag &other)
virtual	~ResidenceTimeTag ()
ResidenceTimeTag &	operator= (const ResidenceTimeTag &other)
virtual ResidenceTimeTag *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual ::omnetpp::simtime_t	getStartTime () const
virtual void	setStartTime (::omnetpp::simtime_t startTime)
virtual ::omnetpp::simtime_t	getEndTime () const
virtual void	setEndTime (::omnetpp::simtime_t endTime)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const ResidenceTimeTag &)=delete

Protected Attributes
::omnetpp::simtime_t	startTime = -1
::omnetpp::simtime_t	endTime = -1

Private Member Functions
void	copy (const ResidenceTimeTag &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/common/TimeTag.msg:27 by opp_msgtool.

//
// This tag specifies the network node residence start and end times. It can be
// attached to a specific region of a packet in order to store when that region
// entered and left the network node.
//
class ResidenceTimeTag extends TagBase
{
    simtime_t startTime = -1;
    simtime_t endTime = -1;
}

Constructor & Destructor Documentation

ResidenceTimeTag() [1/2]

inet::ResidenceTimeTag::ResidenceTimeTag

(

)

ResidenceTimeTag() [2/2]

inet::ResidenceTimeTag::ResidenceTimeTag

(

const ResidenceTimeTag &

other

)

~ResidenceTimeTag()

virtual inet::ResidenceTimeTag::~ResidenceTimeTag ( )

virtual

Member Function Documentation

copy()

void inet::ResidenceTimeTag::copy ( const ResidenceTimeTag &  other )

private

dup()

virtual ResidenceTimeTag* inet::ResidenceTimeTag::dup ( ) const

inlineoverridevirtual

{return new ResidenceTimeTag(*this);}

getEndTime()

virtual ::omnetpp::simtime_t inet::ResidenceTimeTag::getEndTime

(

)

const

getStartTime()

virtual ::omnetpp::simtime_t inet::ResidenceTimeTag::getStartTime

(

)

const

operator=()

ResidenceTimeTag& inet::ResidenceTimeTag::operator=

(

const ResidenceTimeTag &

other

)

operator==()

bool inet::ResidenceTimeTag::operator== ( const ResidenceTimeTag &  )

protecteddelete

parsimPack()

virtual void inet::ResidenceTimeTag::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::ResidenceTimeTag::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Referenced by inet::doParsimUnpacking().

setEndTime()

virtual void inet::ResidenceTimeTag::setEndTime ( ::omnetpp::simtime_t  endTime )

virtual

setStartTime()

virtual void inet::ResidenceTimeTag::setStartTime ( ::omnetpp::simtime_t  startTime )

virtual

Member Data Documentation

endTime

::omnetpp::simtime_t inet::ResidenceTimeTag::endTime = -1

protected

startTime

::omnetpp::simtime_t inet::ResidenceTimeTag::startTime = -1

protected

---

The documentation for this class was generated from the following file:

• TimeTag_m.h
