Protocol dissector classes dissect packets into protocol specific meaningful parts. More...
#include <ProtocolDissector.h>
Classes | |
| class | ICallback |
Public Member Functions | |
| virtual void | dissect (Packet *packet, const Protocol *protocol, ICallback &callback) const =0 |
| Dissects the packet according to the protocol implemented by this ProtocolDissector. More... | |
Detailed Description
Protocol dissector classes dissect packets into protocol specific meaningful parts.
The algorithm calls the visitor method exactly one time for each part in order from left to right. For an aggregate packet all aggregated parts are visited in the order they appear in the packet. For a fragmented packet the fragment part is visited as a whole. If dissecting that part is also needed then another dissector must be used for that part.
Dissectors can handle both protocol specific and raw representations (raw bytes or bits). In general, dissectors call the chunk visitor with the most specific representation available for a particular protocol.
Member Function Documentation
◆ dissect()
|
pure virtual |
Dissects the packet according to the protocol implemented by this ProtocolDissector.

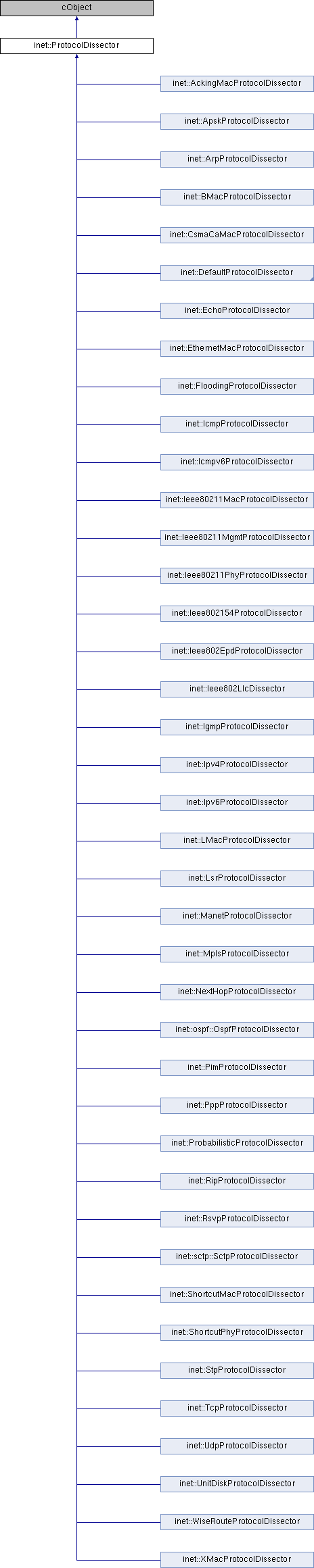

Implemented in inet::DefaultProtocolDissector, inet::Ieee80211MacProtocolDissector, inet::physicallayer::GptpProtocolDissector, inet::physicallayer::Ieee8021qTagEpdProtocolDissector, inet::physicallayer::Ieee8021rTagEpdProtocolDissector, inet::physicallayer::EthernetPhyProtocolDissector, inet::ospf::OspfProtocolDissector, inet::sctp::SctpProtocolDissector, inet::AckingMacProtocolDissector, inet::BMacProtocolDissector, inet::CsmaCaMacProtocolDissector, inet::EthernetMacProtocolDissector, inet::Ieee80211MgmtProtocolDissector, inet::Ieee802154ProtocolDissector, inet::StpProtocolDissector, inet::Ieee802LlcDissector, inet::LMacProtocolDissector, inet::PppProtocolDissector, inet::ShortcutMacProtocolDissector, inet::XMacProtocolDissector, inet::ArpProtocolDissector, inet::EchoProtocolDissector, inet::FloodingProtocolDissector, inet::Icmpv6ProtocolDissector, inet::IcmpProtocolDissector, inet::IgmpProtocolDissector, inet::Ipv4ProtocolDissector, inet::Ipv6ProtocolDissector, inet::MplsProtocolDissector, inet::NextHopProtocolDissector, inet::ProbabilisticProtocolDissector, inet::RsvpProtocolDissector, inet::LsrProtocolDissector, inet::WiseRouteProtocolDissector, inet::ApskProtocolDissector, inet::Ieee80211PhyProtocolDissector, inet::ShortcutPhyProtocolDissector, inet::UnitDiskProtocolDissector, inet::ManetProtocolDissector, inet::PimProtocolDissector, inet::RipProtocolDissector, inet::TcpProtocolDissector, inet::UdpProtocolDissector, and inet::Ieee802EpdProtocolDissector.
The documentation for this class was generated from the following file:
