inet::PcpTagBase Class Reference

Class generated from inet/linklayer/common/PcpTag.msg:16 by opp_msgtool. More...

#include <PcpTag_m.h>

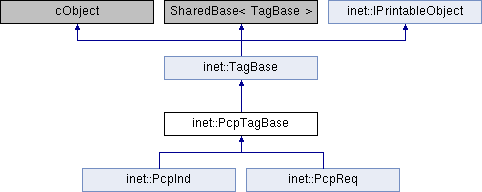

Inheritance diagram for inet::PcpTagBase:

Public Member Functions
	PcpTagBase ()
	PcpTagBase (const PcpTagBase &other)
virtual	~PcpTagBase ()
PcpTagBase &	operator= (const PcpTagBase &other)
virtual PcpTagBase *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual int	getPcp () const
virtual void	setPcp (int pcp)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const PcpTagBase &)=delete

Protected Attributes
int	pcp = -1

Private Member Functions
void	copy (const PcpTagBase &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/linklayer/common/PcpTag.msg:16 by opp_msgtool.

//
// This is an abstract base class that should not be directly added as a tag.
//
class PcpTagBase extends TagBase
{
    int pcp = -1;
}

Constructor & Destructor Documentation

PcpTagBase() [1/2]

inet::PcpTagBase::PcpTagBase

(

)

PcpTagBase() [2/2]

inet::PcpTagBase::PcpTagBase

(

const PcpTagBase &

other

)

~PcpTagBase()

virtual inet::PcpTagBase::~PcpTagBase ( )

virtual

Member Function Documentation

copy()

void inet::PcpTagBase::copy ( const PcpTagBase &  other )

private

dup()

virtual PcpTagBase* inet::PcpTagBase::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::PcpInd, and inet::PcpReq.

{return new PcpTagBase(*this);}

getPcp()

virtual int inet::PcpTagBase::getPcp ( ) const

virtual

Referenced by inet::PcpClassifier::classifyPacket(), inet::PcpTrafficClassClassifier::classifyPacket(), inet::Ieee8021qTagEpdHeaderInserter::processPacket(), and inet::Ieee8021qTagTpidHeaderInserter::processPacket().

operator=()

PcpTagBase& inet::PcpTagBase::operator=

(

const PcpTagBase &

other

)

operator==()

bool inet::PcpTagBase::operator== ( const PcpTagBase &  )

protecteddelete

parsimPack()

virtual void inet::PcpTagBase::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::PcpInd, and inet::PcpReq.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::PcpTagBase::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::PcpInd, and inet::PcpReq.

Referenced by inet::doParsimUnpacking().

setPcp()

virtual void inet::PcpTagBase::setPcp ( int  pcp )

virtual

Member Data Documentation

pcp

int inet::PcpTagBase::pcp = -1

protected

---

The documentation for this class was generated from the following file:

• PcpTag_m.h
