inet::PacketProtocolTag Class Reference

Class generated from inet/common/ProtocolTag.msg:153 by opp_msgtool. More...

#include <ProtocolTag_m.h>

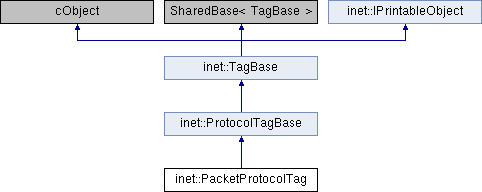

Inheritance diagram for inet::PacketProtocolTag:

Public Member Functions
	PacketProtocolTag ()
	PacketProtocolTag (const PacketProtocolTag &other)
virtual	~PacketProtocolTag ()
PacketProtocolTag &	operator= (const PacketProtocolTag &other)
virtual PacketProtocolTag *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual b	getFrontOffset () const
virtual void	setFrontOffset (b frontOffset)
virtual b	getBackOffset () const
virtual void	setBackOffset (b backOffset)
void	set (const Protocol *protocol, b frontOffset=b(0), b backOffset=b(0))
Public Member Functions inherited from inet::ProtocolTagBase
	ProtocolTagBase ()
	ProtocolTagBase (const ProtocolTagBase &other)
virtual	~ProtocolTagBase ()
ProtocolTagBase &	operator= (const ProtocolTagBase &other)
virtual const Protocol *	findProtocol () const
virtual void	setProtocol (const Protocol *protocol)
const Protocol *	getProtocol () const
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const PacketProtocolTag &)=delete
Protected Member Functions inherited from inet::ProtocolTagBase
bool	operator== (const ProtocolTagBase &)=delete

Protected Attributes
b	frontOffset = b(0)
b	backOffset = b(0)
Protected Attributes inherited from inet::ProtocolTagBase
const Protocol *	protocol = nullptr

Private Member Functions
void	copy (const PacketProtocolTag &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/common/ProtocolTag.msg:153 by opp_msgtool.

//
// This tag specifies the protocol of the packet.
//
// Packet processing at the sender
// ===============================
//
// | ApplicationData |
//     whole packet has no protocol
//     data part has no protocol
//
// | UdpHeader ApplicationData |
//     whole packet has UDP protocol
//     data part has UDP protocol
//
// | Ipv4Header UdpHeader ApplicationData |
//     whole packet has IPv4 protocol
//     data part has IPv4 protocol
//
// EthernetMacHeader | Ipv4Header UdpHeader ApplicationData |
//     whole packet has incomplete Ethernet protocol
//     data part has IPv4 protocol
//
// EthernetMacHeader | Ipv4Header UdpHeader ApplicationData | EthernetPadding EthernetFcs
//     whole packet has Ethernet protocol
//     data part has IPv4 protocol
//
// | EthernetMacHeader Ipv4Header UdpHeader ApplicationData EthernetPadding EthernetFcs |
//     whole packet has Ethernet protocol
//     data part has Ethernet protocol
//
// Packet processing at the receiver
// =================================
//
// | EthernetMacHeader Ipv4Header UdpHeader ApplicationData EthernetPadding EthernetFcs |
//     whole packet has Ethernet protocol
//     data part has Ethernet protocol
//
// EthernetMacHeader Ipv4Header UdpHeader ApplicationData EthernetPadding | EthernetFcs
//     whole packet has Ethernet protocol
//     data part has no protocol
//
// EthernetMacHeader | Ipv4Header UdpHeader ApplicationData | EthernetPadding EthernetFcs
//     whole packet has Ethernet protocol
//     data part has IPv4 protocol
//
// EthernetMacHeader Ipv4Header | UdpHeader ApplicationData | EthernetPadding EthernetFcs
//     whole packet has Ethernet protocol
//     data part has UDP protocol
//
// EthernetMacHeader Ipv4Header UdpHeader | ApplicationData | EthernetPadding EthernetFcs
//     whole packet has Ethernet protocol
//     data part has no protocol
//
class PacketProtocolTag extends ProtocolTagBase
{
    b frontOffset = b(0); // extra offset relative to the packet data part front offset
    b backOffset = b(0); // extra offset relative to the packet data part back offset
}

Constructor & Destructor Documentation

PacketProtocolTag() [1/2]

inet::PacketProtocolTag::PacketProtocolTag

(

)

PacketProtocolTag() [2/2]

inet::PacketProtocolTag::PacketProtocolTag

(

const PacketProtocolTag &

other

)

~PacketProtocolTag()

virtual inet::PacketProtocolTag::~PacketProtocolTag ( )

virtual

Member Function Documentation

copy()

void inet::PacketProtocolTag::copy ( const PacketProtocolTag &  other )

private

dup()

virtual PacketProtocolTag* inet::PacketProtocolTag::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::ProtocolTagBase.

{return new PacketProtocolTag(*this);}

getBackOffset()

virtual b inet::PacketProtocolTag::getBackOffset ( ) const

virtual

getFrontOffset()

virtual b inet::PacketProtocolTag::getFrontOffset ( ) const

virtual

operator=()

PacketProtocolTag& inet::PacketProtocolTag::operator=

(

const PacketProtocolTag &

other

)

operator==()

bool inet::PacketProtocolTag::operator== ( const PacketProtocolTag &  )

protecteddelete

parsimPack()

virtual void inet::PacketProtocolTag::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::ProtocolTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::PacketProtocolTag::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::ProtocolTagBase.

Referenced by inet::doParsimUnpacking().

set()

void inet::PacketProtocolTag::set ( const Protocol *  protocol, b  frontOffset = b(0), b  backOffset = b(0)  )

inline

                                                                                  {
        this->protocol = protocol;
        this->frontOffset = frontOffset;
        this->backOffset = backOffset;
    }

setBackOffset()

virtual void inet::PacketProtocolTag::setBackOffset ( b  backOffset )

virtual

Referenced by inet::EthernetFragmentFcsChecker::processPacket(), and inet::EthernetFragmentFcsInserter::processPacket().

setFrontOffset()

virtual void inet::PacketProtocolTag::setFrontOffset ( b  frontOffset )

virtual

Referenced by inet::EthernetTypeOrLengthChecker::processPacket(), inet::Ieee8021aeTagEpdHeaderChecker::processPacket(), inet::EthernetTypeOrLengthInserter::processPacket(), inet::Ieee8021rTagEpdHeaderChecker::processPacket(), inet::EthernetAddressInserter::processPacket(), inet::EthernetAddressChecker::processPacket(), inet::Ieee8021qTagEpdHeaderChecker::processPacket(), and inet::Ieee8021qTagTpidHeaderInserter::processPacket().

Member Data Documentation

backOffset

b inet::PacketProtocolTag::backOffset = b(0)

protected

frontOffset

b inet::PacketProtocolTag::frontOffset = b(0)

protected

---

The documentation for this class was generated from the following file:

• ProtocolTag_m.h
