inet::NextHopAddressReq Class Reference

Class generated from inet/networklayer/common/NextHopAddressTag.msg:14 by opp_msgtool. More...

#include <NextHopAddressTag_m.h>

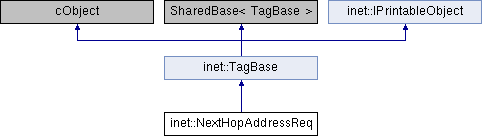

Inheritance diagram for inet::NextHopAddressReq:

Public Member Functions
	NextHopAddressReq ()
	NextHopAddressReq (const NextHopAddressReq &other)
virtual	~NextHopAddressReq ()
NextHopAddressReq &	operator= (const NextHopAddressReq &other)
virtual NextHopAddressReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual const L3Address &	getNextHopAddress () const
virtual L3Address &	getNextHopAddressForUpdate ()
virtual void	setNextHopAddress (const L3Address &nextHopAddress)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const NextHopAddressReq &)=delete

Protected Attributes
L3Address	nextHopAddress

Private Member Functions
void	copy (const NextHopAddressReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/networklayer/common/NextHopAddressTag.msg:14 by opp_msgtool.

class NextHopAddressReq extends TagBase
{
    L3Address nextHopAddress;      // may be unspecified
}

Constructor & Destructor Documentation

NextHopAddressReq() [1/2]

inet::NextHopAddressReq::NextHopAddressReq

(

)

NextHopAddressReq() [2/2]

inet::NextHopAddressReq::NextHopAddressReq

(

const NextHopAddressReq &

other

)

~NextHopAddressReq()

virtual inet::NextHopAddressReq::~NextHopAddressReq ( )

virtual

Member Function Documentation

copy()

void inet::NextHopAddressReq::copy ( const NextHopAddressReq &  other )

private

dup()

virtual NextHopAddressReq* inet::NextHopAddressReq::dup ( ) const

inlineoverridevirtual

{return new NextHopAddressReq(*this);}

getNextHopAddress()

virtual const L3Address& inet::NextHopAddressReq::getNextHopAddress ( ) const

virtual

Referenced by inet::NetfilterInfoHook::datagramPostRoutingHook(), and inet::Ipv4::getNextHop().

getNextHopAddressForUpdate()

virtual L3Address& inet::NextHopAddressReq::getNextHopAddressForUpdate ( )

inlinevirtual

{ return const_cast<L3Address&>(const_cast<NextHopAddressReq*>(this)->getNextHopAddress());}

operator=()

NextHopAddressReq& inet::NextHopAddressReq::operator=

(

const NextHopAddressReq &

other

)

operator==()

bool inet::NextHopAddressReq::operator== ( const NextHopAddressReq &  )

protecteddelete

parsimPack()

virtual void inet::NextHopAddressReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::NextHopAddressReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Referenced by inet::doParsimUnpacking().

setNextHopAddress()

virtual void inet::NextHopAddressReq::setNextHopAddress ( const L3Address &  nextHopAddress )

virtual

Member Data Documentation

nextHopAddress

L3Address inet::NextHopAddressReq::nextHopAddress

protected

---

The documentation for this class was generated from the following file:

• NextHopAddressTag_m.h
