inet::NetworkProtocolReq Class Reference

Class generated from inet/common/ProtocolTag.msg:190 by opp_msgtool. More...

#include <ProtocolTag_m.h>

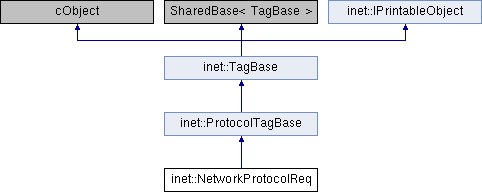

Inheritance diagram for inet::NetworkProtocolReq:

Public Member Functions
	NetworkProtocolReq ()
	NetworkProtocolReq (const NetworkProtocolReq &other)
virtual	~NetworkProtocolReq ()
NetworkProtocolReq &	operator= (const NetworkProtocolReq &other)
virtual NetworkProtocolReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::ProtocolTagBase
	ProtocolTagBase ()
	ProtocolTagBase (const ProtocolTagBase &other)
virtual	~ProtocolTagBase ()
ProtocolTagBase &	operator= (const ProtocolTagBase &other)
virtual const Protocol *	findProtocol () const
virtual void	setProtocol (const Protocol *protocol)
const Protocol *	getProtocol () const
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const NetworkProtocolReq &)=delete
Protected Member Functions inherited from inet::ProtocolTagBase
bool	operator== (const ProtocolTagBase &)=delete

Private Member Functions
void	copy (const NetworkProtocolReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::ProtocolTagBase
const Protocol *	protocol = nullptr

Detailed Description

Class generated from inet/common/ProtocolTag.msg:190 by opp_msgtool.

//
// This request determines the network protocol that should be used to send the
// packet. It may be present from the application to the network protocol and
// from the network protocol to the physical layer.
//
class NetworkProtocolReq extends ProtocolTagBase
{
}

Constructor & Destructor Documentation

NetworkProtocolReq() [1/2]

inet::NetworkProtocolReq::NetworkProtocolReq

(

)

NetworkProtocolReq() [2/2]

inet::NetworkProtocolReq::NetworkProtocolReq

(

const NetworkProtocolReq &

other

)

~NetworkProtocolReq()

virtual inet::NetworkProtocolReq::~NetworkProtocolReq ( )

virtual

Member Function Documentation

copy()

void inet::NetworkProtocolReq::copy ( const NetworkProtocolReq &  other )

private

dup()

virtual NetworkProtocolReq* inet::NetworkProtocolReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::ProtocolTagBase.

{return new NetworkProtocolReq(*this);}

operator=()

NetworkProtocolReq& inet::NetworkProtocolReq::operator=

(

const NetworkProtocolReq &

other

)

operator==()

bool inet::NetworkProtocolReq::operator== ( const NetworkProtocolReq &  )

protecteddelete

parsimPack()

virtual void inet::NetworkProtocolReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::ProtocolTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::NetworkProtocolReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::ProtocolTagBase.

Referenced by inet::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• ProtocolTag_m.h
