inet::NetworkProtocolInd Class Reference

Class generated from inet/common/ProtocolTag.msg:198 by opp_msgtool. More...

#include <ProtocolTag_m.h>

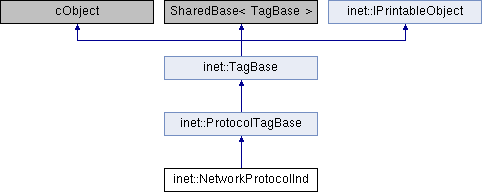

Inheritance diagram for inet::NetworkProtocolInd:

Public Member Functions
	NetworkProtocolInd ()
	NetworkProtocolInd (const NetworkProtocolInd &other)
virtual	~NetworkProtocolInd ()
NetworkProtocolInd &	operator= (const NetworkProtocolInd &other)
virtual NetworkProtocolInd *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual const ChunkPtr &	getNetworkProtocolHeader () const
virtual ChunkPtr &	getNetworkProtocolHeaderForUpdate ()
virtual void	setNetworkProtocolHeader (const ChunkPtr &networkProtocolHeader)
Public Member Functions inherited from inet::ProtocolTagBase
	ProtocolTagBase ()
	ProtocolTagBase (const ProtocolTagBase &other)
virtual	~ProtocolTagBase ()
ProtocolTagBase &	operator= (const ProtocolTagBase &other)
virtual const Protocol *	findProtocol () const
virtual void	setProtocol (const Protocol *protocol)
const Protocol *	getProtocol () const
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const NetworkProtocolInd &)=delete
Protected Member Functions inherited from inet::ProtocolTagBase
bool	operator== (const ProtocolTagBase &)=delete

Protected Attributes
ChunkPtr	networkProtocolHeader
Protected Attributes inherited from inet::ProtocolTagBase
const Protocol *	protocol = nullptr

Private Member Functions
void	copy (const NetworkProtocolInd &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/common/ProtocolTag.msg:198 by opp_msgtool.

//
// This indication specifies the network protocol that was used to receive the
// packet. It may be present from the network protocol to the application.
//
class NetworkProtocolInd extends ProtocolTagBase
{
    ChunkPtr networkProtocolHeader;
}

Constructor & Destructor Documentation

NetworkProtocolInd() [1/2]

inet::NetworkProtocolInd::NetworkProtocolInd

(

)

NetworkProtocolInd() [2/2]

inet::NetworkProtocolInd::NetworkProtocolInd

(

const NetworkProtocolInd &

other

)

~NetworkProtocolInd()

virtual inet::NetworkProtocolInd::~NetworkProtocolInd ( )

virtual

Member Function Documentation

copy()

void inet::NetworkProtocolInd::copy ( const NetworkProtocolInd &  other )

private

dup()

virtual NetworkProtocolInd* inet::NetworkProtocolInd::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::ProtocolTagBase.

{return new NetworkProtocolInd(*this);}

getNetworkProtocolHeader()

virtual const ChunkPtr& inet::NetworkProtocolInd::getNetworkProtocolHeader ( ) const

virtual

Referenced by inet::findNetworkProtocolHeader(), and inet::Udp::processUndeliverablePacket().

getNetworkProtocolHeaderForUpdate()

virtual ChunkPtr& inet::NetworkProtocolInd::getNetworkProtocolHeaderForUpdate ( )

inlinevirtual

{ return const_cast<ChunkPtr&>(const_cast<NetworkProtocolInd*>(this)->getNetworkProtocolHeader());}

operator=()

NetworkProtocolInd& inet::NetworkProtocolInd::operator=

(

const NetworkProtocolInd &

other

)

operator==()

bool inet::NetworkProtocolInd::operator== ( const NetworkProtocolInd &  )

protecteddelete

parsimPack()

virtual void inet::NetworkProtocolInd::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::ProtocolTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::NetworkProtocolInd::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::ProtocolTagBase.

Referenced by inet::doParsimUnpacking().

setNetworkProtocolHeader()

virtual void inet::NetworkProtocolInd::setNetworkProtocolHeader ( const ChunkPtr &  networkProtocolHeader )

virtual

Member Data Documentation

networkProtocolHeader

ChunkPtr inet::NetworkProtocolInd::networkProtocolHeader

protected

---

The documentation for this class was generated from the following file:

• ProtocolTag_m.h
