inet::MulticastReq Class Reference

Class generated from inet/networklayer/common/MulticastTag.msg:16 by opp_msgtool. More...

#include <MulticastTag_m.h>

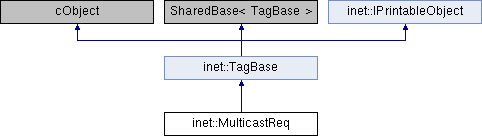

Inheritance diagram for inet::MulticastReq:

Public Member Functions
	MulticastReq ()
	MulticastReq (const MulticastReq &other)
virtual	~MulticastReq ()
MulticastReq &	operator= (const MulticastReq &other)
virtual MulticastReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual bool	getMulticastLoop () const
virtual void	setMulticastLoop (bool multicastLoop)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const MulticastReq &)=delete

Protected Attributes
bool	multicastLoop = false

Private Member Functions
void	copy (const MulticastReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/networklayer/common/MulticastTag.msg:16 by opp_msgtool.

//
// Determines the multicast loop mode
//
class MulticastReq extends TagBase
{
    bool multicastLoop = false;   // if true, sent multicast datagrams will be looped back
}

Constructor & Destructor Documentation

MulticastReq() [1/2]

inet::MulticastReq::MulticastReq

(

)

MulticastReq() [2/2]

inet::MulticastReq::MulticastReq

(

const MulticastReq &

other

)

~MulticastReq()

virtual inet::MulticastReq::~MulticastReq ( )

virtual

Member Function Documentation

copy()

void inet::MulticastReq::copy ( const MulticastReq &  other )

private

dup()

virtual MulticastReq* inet::MulticastReq::dup ( ) const

inlineoverridevirtual

{return new MulticastReq(*this);}

getMulticastLoop()

virtual bool inet::MulticastReq::getMulticastLoop ( ) const

virtual

Referenced by inet::Ipv4::datagramLocalOut().

operator=()

MulticastReq& inet::MulticastReq::operator=

(

const MulticastReq &

other

)

operator==()

bool inet::MulticastReq::operator== ( const MulticastReq &  )

protecteddelete

parsimPack()

virtual void inet::MulticastReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::MulticastReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Referenced by inet::doParsimUnpacking().

setMulticastLoop()

virtual void inet::MulticastReq::setMulticastLoop ( bool  multicastLoop )

virtual

Member Data Documentation

multicastLoop

bool inet::MulticastReq::multicastLoop = false

protected

---

The documentation for this class was generated from the following file:

• MulticastTag_m.h
