inet::ModuleCrashOperation Class Reference

This operation represents the process of crashing a module. More...

#include <ModuleOperations.h>

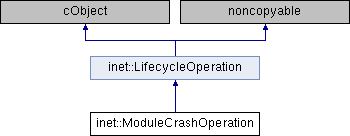

Inheritance diagram for inet::ModuleCrashOperation:

Public Types
enum	Stage { STAGE_CRASH, STAGE_LAST }
Public Types inherited from inet::LifecycleOperation
typedef std::map< std::string, std::string >	StringMap

Public Member Functions
virtual int	getNumStages () const override
	Returns the number of stages required by this operation. More...
Public Member Functions inherited from inet::LifecycleOperation
	LifecycleOperation ()
virtual void	initialize (cModule *module, StringMap &params)
	Initialize the operation using the parameters provided in the string map. More...
cModule *	getRootModule () const
	Returns the module the operation is initiated on. More...
int	getCurrentStage () const
	Returns the current stage, an integer in 0..numStages-1. More...

Detailed Description

This operation represents the process of crashing a module.

The difference between this operation and ShutdownOperation is that the module will not do a graceful shutdown (e.g. routing protocols will not have chance of notifying peers about broken routes).

The operation has only one stage, and the execution must finish in zero simulation time.

Member Enumeration Documentation

Stage

enum inet::ModuleCrashOperation::Stage

Enumerator
STAGE_CRASH
STAGE_LAST

               {
        STAGE_CRASH, // the only stage, must execute within zero simulation time
        STAGE_LAST
    };

Member Function Documentation

getNumStages()

virtual int inet::ModuleCrashOperation::getNumStages ( ) const

inlineoverridevirtual

Returns the number of stages required by this operation.

Implements inet::LifecycleOperation.

{ return STAGE_LAST + 1; }

---

The documentation for this class was generated from the following file:

• ModuleOperations.h
