inet::IpvxTrafSink Class Reference

Consumes and prints packets received from the IP module. More...

#include <IpvxTrafSink.h>

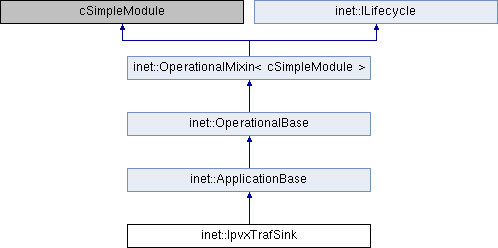

Inheritance diagram for inet::IpvxTrafSink:

Protected Member Functions
virtual void	printPacket (Packet *msg)
virtual void	processPacket (Packet *msg)
virtual void	initialize (int stage) override
virtual int	numInitStages () const override
virtual void	handleMessageWhenUp (cMessage *msg) override
virtual void	refreshDisplay () const override
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual void	handleStopOperation (LifecycleOperation *operation) override
virtual void	handleCrashOperation (LifecycleOperation *operation) override
Protected Member Functions inherited from inet::ApplicationBase
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Protected Attributes
int	numReceived
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Additional Inherited Members
Public Member Functions inherited from inet::ApplicationBase
	ApplicationBase ()
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Detailed Description

Consumes and prints packets received from the IP module.

See NED for more info.

Member Function Documentation

handleCrashOperation()

virtual void inet::IpvxTrafSink::handleCrashOperation ( LifecycleOperation *  operation )

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{}

handleMessageWhenUp()

void inet::IpvxTrafSink::handleMessageWhenUp ( cMessage *  msg )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    processPacket(check_and_cast<Packet *>(msg));
}

handleStartOperation()

virtual void inet::IpvxTrafSink::handleStartOperation ( LifecycleOperation *  operation )

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{}

handleStopOperation()

virtual void inet::IpvxTrafSink::handleStopOperation ( LifecycleOperation *  operation )

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{}

initialize()

void inet::IpvxTrafSink::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

{
    ApplicationBase::initialize(stage);

    if (stage == INITSTAGE_LOCAL) {
        numReceived = 0;
        WATCH(numReceived);
    }
    else if (stage == INITSTAGE_APPLICATION_LAYER) {
        int protocolId = par("protocol");
        if (protocolId < 143 || protocolId > 254)
            throw cRuntimeError("invalid protocol id %d, accepts only between 143 and 254", protocolId);
        auto protocol = ProtocolGroup::ipprotocol.findProtocol(protocolId);
        if (!protocol) {
            char *buff = new char[40];
            sprintf(buff, "prot_%d", protocolId);
            protocol = new Protocol(buff, buff);
            ProtocolGroup::ipprotocol.addProtocol(protocolId, protocol);
        }
        registerProtocol(*protocol, gate("ipOut"), gate("ipIn"));
    }
}

numInitStages()

virtual int inet::IpvxTrafSink::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

printPacket()

void inet::IpvxTrafSink::printPacket ( Packet *  msg )

protectedvirtual

{
    L3Address src, dest;
    int protocol = -1;
    auto ctrl = msg->getControlInfo();
    if (ctrl != nullptr) {
        protocol = ProtocolGroup::ipprotocol.getProtocolNumber(msg->getTag<PacketProtocolTag>()->getProtocol());
    }
    Ptr<const L3AddressTagBase> addresses = msg->findTag<L3AddressReq>();
    if (addresses == nullptr)
        addresses = msg->findTag<L3AddressInd>();
    if (addresses != nullptr) {
        src = addresses->getSrcAddress();
        dest = addresses->getDestAddress();
    }

    EV_INFO << msg << endl;
    EV_INFO << "Payload length: " << msg->getByteLength() << " bytes" << endl;

    if (ctrl != nullptr)
        EV_INFO << "src: " << src << "  dest: " << dest << "  protocol=" << protocol << endl;
}

Referenced by processPacket().

processPacket()

void inet::IpvxTrafSink::processPacket ( Packet *  msg )

protectedvirtual

{
    emit(packetReceivedSignal, msg);
    EV_INFO << "Received packet: ";
    printPacket(msg);
    delete msg;
    numReceived++;
}

Referenced by handleMessageWhenUp().

refreshDisplay()

void inet::IpvxTrafSink::refreshDisplay ( ) const

overrideprotectedvirtual

{
    ApplicationBase::refreshDisplay();

    char buf[32];
    sprintf(buf, "rcvd: %d pks", numReceived);
    getDisplayString().setTagArg("t", 0, buf);
}

Member Data Documentation

numReceived

int inet::IpvxTrafSink::numReceived

protected

Referenced by initialize(), processPacket(), and refreshDisplay().

---

The documentation for this class was generated from the following files:

• IpvxTrafSink.h
• IpvxTrafSink.cc
