inet::Ipv6NdSourceTargetLinkLayerAddress Class Reference

Class generated from inet/networklayer/icmpv6/Ipv6NdMessage.msg:46 by opp_msgtool. More...

#include <Ipv6NdMessage_m.h>

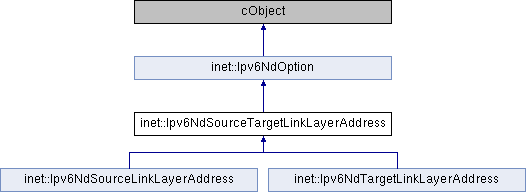

Inheritance diagram for inet::Ipv6NdSourceTargetLinkLayerAddress:

Public Member Functions
	Ipv6NdSourceTargetLinkLayerAddress ()
	Ipv6NdSourceTargetLinkLayerAddress (const Ipv6NdSourceTargetLinkLayerAddress &other)
virtual	~Ipv6NdSourceTargetLinkLayerAddress ()
Ipv6NdSourceTargetLinkLayerAddress &	operator= (const Ipv6NdSourceTargetLinkLayerAddress &other)
virtual Ipv6NdSourceTargetLinkLayerAddress *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual const MacAddress &	getLinkLayerAddress () const
virtual MacAddress &	getLinkLayerAddressForUpdate ()
virtual void	setLinkLayerAddress (const MacAddress &linkLayerAddress)
Public Member Functions inherited from inet::Ipv6NdOption
	Ipv6NdOption ()
	Ipv6NdOption (const Ipv6NdOption &other)
virtual	~Ipv6NdOption ()
Ipv6NdOption &	operator= (const Ipv6NdOption &other)
virtual Ipv6NdOptionTypes	getType () const
virtual void	setType (Ipv6NdOptionTypes type)
virtual short	getOptionLength () const
virtual void	setOptionLength (short optionLength)
virtual void	setPaddingBytesArraySize (size_t size)
virtual size_t	getPaddingBytesArraySize () const
virtual char	getPaddingBytes (size_t k) const
virtual void	setPaddingBytes (size_t k, char paddingBytes)
virtual void	insertPaddingBytes (size_t k, char paddingBytes)
void	insertPaddingBytes (char paddingBytes)
virtual void	appendPaddingBytes (char paddingBytes)
virtual void	erasePaddingBytes (size_t k)

Protected Member Functions
bool	operator== (const Ipv6NdSourceTargetLinkLayerAddress &)=delete
Protected Member Functions inherited from inet::Ipv6NdOption
bool	operator== (const Ipv6NdOption &)=delete

Protected Attributes
MacAddress	linkLayerAddress
Protected Attributes inherited from inet::Ipv6NdOption
Ipv6NdOptionTypes	type = static_cast<Ipv6NdOptionTypes>(0)
short	optionLength = 0
char *	paddingBytes = nullptr
size_t	paddingBytes_arraysize = 0

Private Member Functions
void	copy (const Ipv6NdSourceTargetLinkLayerAddress &other)

Detailed Description

Class generated from inet/networklayer/icmpv6/Ipv6NdMessage.msg:46 by opp_msgtool.

class Ipv6NdSourceTargetLinkLayerAddress extends Ipv6NdOption
{
    optionLength = 1;    // 8 byte ( when using MacAddress)
    MacAddress linkLayerAddress;
}

Constructor & Destructor Documentation

Ipv6NdSourceTargetLinkLayerAddress() [1/2]

inet::Ipv6NdSourceTargetLinkLayerAddress::Ipv6NdSourceTargetLinkLayerAddress

(

)

Ipv6NdSourceTargetLinkLayerAddress() [2/2]

inet::Ipv6NdSourceTargetLinkLayerAddress::Ipv6NdSourceTargetLinkLayerAddress

(

const Ipv6NdSourceTargetLinkLayerAddress &

other

)

~Ipv6NdSourceTargetLinkLayerAddress()

virtual inet::Ipv6NdSourceTargetLinkLayerAddress::~Ipv6NdSourceTargetLinkLayerAddress ( )

virtual

Member Function Documentation

copy()

void inet::Ipv6NdSourceTargetLinkLayerAddress::copy ( const Ipv6NdSourceTargetLinkLayerAddress &  other )

private

dup()

virtual Ipv6NdSourceTargetLinkLayerAddress* inet::Ipv6NdSourceTargetLinkLayerAddress::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::Ipv6NdOption.

Reimplemented in inet::Ipv6NdTargetLinkLayerAddress, and inet::Ipv6NdSourceLinkLayerAddress.

{return new Ipv6NdSourceTargetLinkLayerAddress(*this);}

getLinkLayerAddress()

virtual const MacAddress& inet::Ipv6NdSourceTargetLinkLayerAddress::getLinkLayerAddress ( ) const

virtual

getLinkLayerAddressForUpdate()

virtual MacAddress& inet::Ipv6NdSourceTargetLinkLayerAddress::getLinkLayerAddressForUpdate ( )

inlinevirtual

{ return const_cast<MacAddress&>(const_cast<Ipv6NdSourceTargetLinkLayerAddress*>(this)->getLinkLayerAddress());}

operator=()

Ipv6NdSourceTargetLinkLayerAddress& inet::Ipv6NdSourceTargetLinkLayerAddress::operator=

(

const Ipv6NdSourceTargetLinkLayerAddress &

other

)

operator==()

bool inet::Ipv6NdSourceTargetLinkLayerAddress::operator== ( const Ipv6NdSourceTargetLinkLayerAddress &  )

protecteddelete

parsimPack()

virtual void inet::Ipv6NdSourceTargetLinkLayerAddress::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::Ipv6NdOption.

Reimplemented in inet::Ipv6NdTargetLinkLayerAddress, and inet::Ipv6NdSourceLinkLayerAddress.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::Ipv6NdSourceTargetLinkLayerAddress::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::Ipv6NdOption.

Reimplemented in inet::Ipv6NdTargetLinkLayerAddress, and inet::Ipv6NdSourceLinkLayerAddress.

Referenced by inet::doParsimUnpacking().

setLinkLayerAddress()

virtual void inet::Ipv6NdSourceTargetLinkLayerAddress::setLinkLayerAddress ( const MacAddress &  linkLayerAddress )

virtual

Member Data Documentation

linkLayerAddress

MacAddress inet::Ipv6NdSourceTargetLinkLayerAddress::linkLayerAddress

protected

---

The documentation for this class was generated from the following file:

• Ipv6NdMessage_m.h
