inet::Ieee80211SubtypeReq Class Reference

Class generated from inet/linklayer/ieee80211/mac/Ieee80211SubtypeTag.msg:21 by opp_msgtool. More...

#include <Ieee80211SubtypeTag_m.h>

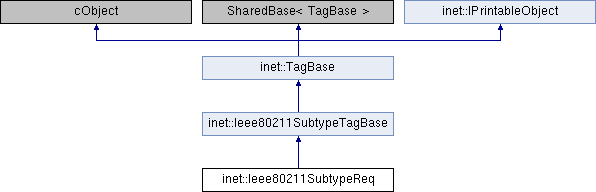

Inheritance diagram for inet::Ieee80211SubtypeReq:

Public Member Functions
	Ieee80211SubtypeReq ()
	Ieee80211SubtypeReq (const Ieee80211SubtypeReq &other)
virtual	~Ieee80211SubtypeReq ()
Ieee80211SubtypeReq &	operator= (const Ieee80211SubtypeReq &other)
virtual Ieee80211SubtypeReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::Ieee80211SubtypeTagBase
	Ieee80211SubtypeTagBase ()
	Ieee80211SubtypeTagBase (const Ieee80211SubtypeTagBase &other)
virtual	~Ieee80211SubtypeTagBase ()
Ieee80211SubtypeTagBase &	operator= (const Ieee80211SubtypeTagBase &other)
virtual int	getSubtype () const
virtual void	setSubtype (int subtype)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const Ieee80211SubtypeReq &)=delete
Protected Member Functions inherited from inet::Ieee80211SubtypeTagBase
bool	operator== (const Ieee80211SubtypeTagBase &)=delete

Private Member Functions
void	copy (const Ieee80211SubtypeReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::Ieee80211SubtypeTagBase
int	subtype = 0

Detailed Description

Class generated from inet/linklayer/ieee80211/mac/Ieee80211SubtypeTag.msg:21 by opp_msgtool.

//
// Determines the MAC header subtype for an outgoing packet.
//
class Ieee80211SubtypeReq extends Ieee80211SubtypeTagBase
{
}

Constructor & Destructor Documentation

Ieee80211SubtypeReq() [1/2]

inet::Ieee80211SubtypeReq::Ieee80211SubtypeReq

(

)

Ieee80211SubtypeReq() [2/2]

inet::Ieee80211SubtypeReq::Ieee80211SubtypeReq

(

const Ieee80211SubtypeReq &

other

)

~Ieee80211SubtypeReq()

virtual inet::Ieee80211SubtypeReq::~Ieee80211SubtypeReq ( )

virtual

Member Function Documentation

copy()

void inet::Ieee80211SubtypeReq::copy ( const Ieee80211SubtypeReq &  other )

private

dup()

virtual Ieee80211SubtypeReq* inet::Ieee80211SubtypeReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::Ieee80211SubtypeTagBase.

{return new Ieee80211SubtypeReq(*this);}

operator=()

Ieee80211SubtypeReq& inet::Ieee80211SubtypeReq::operator=

(

const Ieee80211SubtypeReq &

other

)

operator==()

bool inet::Ieee80211SubtypeReq::operator== ( const Ieee80211SubtypeReq &  )

protecteddelete

parsimPack()

virtual void inet::Ieee80211SubtypeReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::Ieee80211SubtypeTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::Ieee80211SubtypeReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::Ieee80211SubtypeTagBase.

Referenced by inet::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• Ieee80211SubtypeTag_m.h
