inet::IdealClock Class Reference

#include <IdealClock.h>

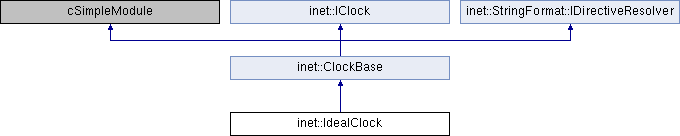

Inheritance diagram for inet::IdealClock:

Public Member Functions
virtual clocktime_t	computeClockTimeFromSimTime (simtime_t t) const override
	Returns the clock time for the specified future simulation time according to the current state of the clock. More...
virtual simtime_t	computeSimTimeFromClockTime (clocktime_t t) const override
	Returns the simulation time (first moment) for the specified future clock time according to the current state of the clock. More...
Public Member Functions inherited from inet::ClockBase
virtual clocktime_t	getClockTime () const override
	Returns the current clock time. More...
virtual void	scheduleClockEventAt (clocktime_t time, ClockEvent *event) override
	Schedules an event to be delivered to the caller module (i.e. More...
virtual void	scheduleClockEventAfter (clocktime_t time, ClockEvent *event) override
	Schedules an event to be delivered to the caller module (i.e. More...
virtual ClockEvent *	cancelClockEvent (ClockEvent *event) override
	Cancels a previously scheduled clock event. More...
virtual void	handleClockEvent (ClockEvent *event) override
	Called by the clock event to be executed in the context of this clock. More...
virtual const char *	resolveDirective (char directive) const override
Public Member Functions inherited from inet::IClock
virtual	~IClock ()

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	finish () override
Protected Member Functions inherited from inet::ClockBase
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	updateDisplayString () const
cSimpleModule *	getTargetModule () const

Additional Inherited Members
Static Public Attributes inherited from inet::ClockBase
static simsignal_t	timeChangedSignal = cComponent::registerSignal("timeChanged")
Protected Attributes inherited from inet::ClockBase
clocktime_t	clockEventTime = -1
const char *	displayStringTextFormat = nullptr

Member Function Documentation

computeClockTimeFromSimTime()

clocktime_t inet::IdealClock::computeClockTimeFromSimTime ( simtime_t  time ) const

overridevirtual

Returns the clock time for the specified future simulation time according to the current state of the clock.

This method implements a monotonic function with respect to the simulation time argument. It's allowed to return a different value for the same argument value if the clock is set between calls. The time argument must be greater than or equal to the current simulation time, otherwise an error is raised. See SIMTIME_AS_CLOCKTIME macro for simple type conversion.

Implements inet::IClock.

{
    return ClockTime::from(t);
}

computeSimTimeFromClockTime()

simtime_t inet::IdealClock::computeSimTimeFromClockTime ( clocktime_t  time ) const

overridevirtual

Returns the simulation time (first moment) for the specified future clock time according to the current state of the clock.

This method implements a monotonic function with respect to the clock time argument. It's allowed to return a different value for the same argument value if the clock is set between calls. The time argument must be greater or than equal to the current clock time, otherwise an error is raised. See CLOCKTIME_AS_SIMTIME macro for simple type conversion.

Implements inet::IClock.

{
    return clock.asSimTime();
}

finish()

void inet::IdealClock::finish ( )

overrideprotectedvirtual

Reimplemented from inet::ClockBase.

{
    ClockBase::finish();
    emit(timeChangedSignal, simTime());
}

initialize()

void inet::IdealClock::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::ClockBase.

{
    ClockBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL)
        emit(timeChangedSignal, simTime());
}

---

The documentation for this class was generated from the following files:

• IdealClock.h
• IdealClock.cc
