inet::HelloOption Class Reference

Class generated from inet/routing/pim/PimPacket.msg:78 by opp_msgtool. More...

#include <PimPacket_m.h>

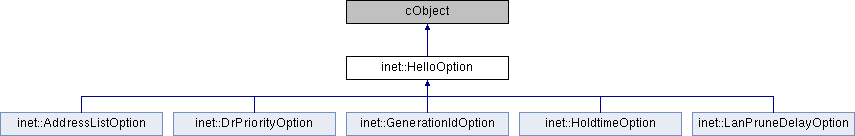

Inheritance diagram for inet::HelloOption:

Public Member Functions
	HelloOption ()
	HelloOption (const HelloOption &other)
virtual	~HelloOption ()
HelloOption &	operator= (const HelloOption &other)
virtual HelloOption *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual PimHelloOptionType	getType () const
virtual void	setType (PimHelloOptionType type)

Protected Member Functions
bool	operator== (const HelloOption &)=delete

Protected Attributes
PimHelloOptionType	type = static_cast<inet::PimHelloOptionType>(-1)

Private Member Functions
void	copy (const HelloOption &other)

Detailed Description

Class generated from inet/routing/pim/PimPacket.msg:78 by opp_msgtool.

class HelloOption extends cObject
{
    @packetData;
    PimHelloOptionType type;
}

Constructor & Destructor Documentation

HelloOption() [1/2]

inet::HelloOption::HelloOption

(

)

HelloOption() [2/2]

inet::HelloOption::HelloOption

(

const HelloOption &

other

)

~HelloOption()

virtual inet::HelloOption::~HelloOption ( )

virtual

Member Function Documentation

copy()

void inet::HelloOption::copy ( const HelloOption &  other )

private

dup()

virtual HelloOption* inet::HelloOption::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::AddressListOption, inet::GenerationIdOption, inet::DrPriorityOption, inet::LanPruneDelayOption, and inet::HoldtimeOption.

{return new HelloOption(*this);}

getType()

virtual PimHelloOptionType inet::HelloOption::getType ( ) const

virtual

Referenced by inet::PimBase::processHelloPacket().

operator=()

HelloOption& inet::HelloOption::operator=

(

const HelloOption &

other

)

operator==()

bool inet::HelloOption::operator== ( const HelloOption &  )

protecteddelete

parsimPack()

virtual void inet::HelloOption::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::AddressListOption, inet::GenerationIdOption, inet::DrPriorityOption, inet::LanPruneDelayOption, and inet::HoldtimeOption.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::HelloOption::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::AddressListOption, inet::GenerationIdOption, inet::DrPriorityOption, inet::LanPruneDelayOption, and inet::HoldtimeOption.

Referenced by inet::doParsimUnpacking().

setType()

virtual void inet::HelloOption::setType ( PimHelloOptionType  type )

virtual

Member Data Documentation

type

PimHelloOptionType inet::HelloOption::type = static_cast<inet::PimHelloOptionType>(-1)

protected

---

The documentation for this class was generated from the following file:

• PimPacket_m.h
