inet::FlowTag Class Reference

Class generated from inet/common/FlowTag.msg:13 by opp_msgtool. More...

#include <FlowTag_m.h>

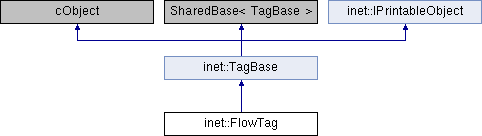

Inheritance diagram for inet::FlowTag:

Public Member Functions
	FlowTag ()
	FlowTag (const FlowTag &other)
virtual	~FlowTag ()
FlowTag &	operator= (const FlowTag &other)
virtual FlowTag *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual void	setNamesArraySize (size_t size)
virtual size_t	getNamesArraySize () const
virtual const char *	getNames (size_t k) const
virtual void	setNames (size_t k, const char *names)
virtual void	insertNames (size_t k, const char *names)
void	insertNames (const char *names)
virtual void	appendNames (const char *names)
virtual void	eraseNames (size_t k)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const FlowTag &)=delete

Protected Attributes
::omnetpp::opp_string *	names = nullptr
size_t	names_arraysize = 0

Private Member Functions
void	copy (const FlowTag &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/common/FlowTag.msg:13 by opp_msgtool.

class FlowTag extends TagBase
{
    string names[];
}

Constructor & Destructor Documentation

FlowTag() [1/2]

inet::FlowTag::FlowTag

(

)

FlowTag() [2/2]

inet::FlowTag::FlowTag

(

const FlowTag &

other

)

~FlowTag()

virtual inet::FlowTag::~FlowTag ( )

virtual

Member Function Documentation

appendNames()

virtual void inet::FlowTag::appendNames ( const char *  names )

virtual

copy()

void inet::FlowTag::copy ( const FlowTag &  other )

private

dup()

virtual FlowTag* inet::FlowTag::dup ( ) const

inlineoverridevirtual

{return new FlowTag(*this);}

eraseNames()

virtual void inet::FlowTag::eraseNames ( size_t  k )

virtual

getNames()

virtual const char* inet::FlowTag::getNames ( size_t  k ) const

virtual

getNamesArraySize()

virtual size_t inet::FlowTag::getNamesArraySize ( ) const

virtual

insertNames() [1/2]

void inet::FlowTag::insertNames ( const char *  names )

inline

{appendNames(names);}

insertNames() [2/2]

virtual void inet::FlowTag::insertNames ( size_t  k, const char *  names  )

virtual

operator=()

FlowTag& inet::FlowTag::operator=

(

const FlowTag &

other

)

operator==()

bool inet::FlowTag::operator== ( const FlowTag &  )

protecteddelete

parsimPack()

virtual void inet::FlowTag::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::FlowTag::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Referenced by inet::doParsimUnpacking().

setNames()

virtual void inet::FlowTag::setNames ( size_t  k, const char *  names  )

virtual

setNamesArraySize()

virtual void inet::FlowTag::setNamesArraySize ( size_t  size )

virtual

Member Data Documentation

names

::omnetpp::opp_string* inet::FlowTag::names = nullptr

protected

names_arraysize

size_t inet::FlowTag::names_arraysize = 0

protected

---

The documentation for this class was generated from the following file:

• FlowTag_m.h
