inet::ErrorRateInd Class Reference

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/SignalTag.msg:115 by opp_msgtool. More...

#include <SignalTag_m.h>

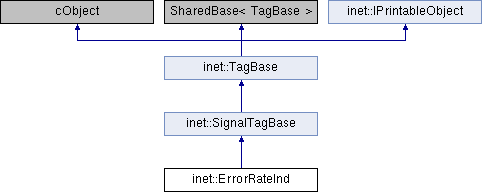

Inheritance diagram for inet::ErrorRateInd:

Public Member Functions
	ErrorRateInd ()
	ErrorRateInd (const ErrorRateInd &other)
virtual	~ErrorRateInd ()
ErrorRateInd &	operator= (const ErrorRateInd &other)
virtual ErrorRateInd *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual double	getPacketErrorRate () const
virtual void	setPacketErrorRate (double packetErrorRate)
virtual double	getBitErrorRate () const
virtual void	setBitErrorRate (double bitErrorRate)
virtual double	getSymbolErrorRate () const
virtual void	setSymbolErrorRate (double symbolErrorRate)
Public Member Functions inherited from inet::SignalTagBase
	SignalTagBase ()
	SignalTagBase (const SignalTagBase &other)
virtual	~SignalTagBase ()
SignalTagBase &	operator= (const SignalTagBase &other)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const ErrorRateInd &)=delete
Protected Member Functions inherited from inet::SignalTagBase
bool	operator== (const SignalTagBase &)=delete

Protected Attributes
double	packetErrorRate = NaN
double	bitErrorRate = NaN
double	symbolErrorRate = NaN

Private Member Functions
void	copy (const ErrorRateInd &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/SignalTag.msg:115 by opp_msgtool.

//
// This indication specifies various error rates that was computed during receiving the packet.
// It may be present on a packet from the phyiscal layer to the application.
//
class ErrorRateInd extends SignalTagBase
{
    double packetErrorRate = NaN; // packet error rate (probability) in the range [0, 1] or NaN if unknown.
    double bitErrorRate = NaN;    // bit error rate (probability) in the range [0, 1] or NaN if unknown.
    double symbolErrorRate = NaN; // symbol error rate (probability) in the range [0, 1] or NaN if unknown.
}

Constructor & Destructor Documentation

ErrorRateInd() [1/2]

inet::ErrorRateInd::ErrorRateInd

(

)

ErrorRateInd() [2/2]

inet::ErrorRateInd::ErrorRateInd

(

const ErrorRateInd &

other

)

~ErrorRateInd()

virtual inet::ErrorRateInd::~ErrorRateInd ( )

virtual

Member Function Documentation

copy()

void inet::ErrorRateInd::copy ( const ErrorRateInd &  other )

private

dup()

virtual ErrorRateInd* inet::ErrorRateInd::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::SignalTagBase.

{return new ErrorRateInd(*this);}

getBitErrorRate()

virtual double inet::ErrorRateInd::getBitErrorRate ( ) const

virtual

getPacketErrorRate()

virtual double inet::ErrorRateInd::getPacketErrorRate ( ) const

virtual

getSymbolErrorRate()

virtual double inet::ErrorRateInd::getSymbolErrorRate ( ) const

virtual

operator=()

ErrorRateInd& inet::ErrorRateInd::operator=

(

const ErrorRateInd &

other

)

operator==()

bool inet::ErrorRateInd::operator== ( const ErrorRateInd &  )

protecteddelete

parsimPack()

virtual void inet::ErrorRateInd::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::SignalTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::ErrorRateInd::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::SignalTagBase.

Referenced by inet::doParsimUnpacking().

setBitErrorRate()

virtual void inet::ErrorRateInd::setBitErrorRate ( double  bitErrorRate )

virtual

setPacketErrorRate()

virtual void inet::ErrorRateInd::setPacketErrorRate ( double  packetErrorRate )

virtual

setSymbolErrorRate()

virtual void inet::ErrorRateInd::setSymbolErrorRate ( double  symbolErrorRate )

virtual

Referenced by inet::physicallayer::ApskLayeredReceiver::computeReceptionResult(), and inet::physicallayer::Ieee80211LayeredOfdmReceiver::computeReceptionResult().

Member Data Documentation

bitErrorRate

double inet::ErrorRateInd::bitErrorRate = NaN

protected

packetErrorRate

double inet::ErrorRateInd::packetErrorRate = NaN

protected

symbolErrorRate

double inet::ErrorRateInd::symbolErrorRate = NaN

protected

---

The documentation for this class was generated from the following file:

• SignalTag_m.h
