inet::EncapsulationProtocolReq Class Reference

Class generated from inet/common/ProtocolTag.msg:86 by opp_msgtool. More...

#include <ProtocolTag_m.h>

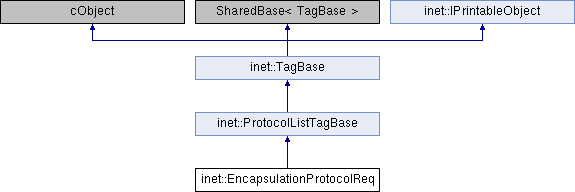

Inheritance diagram for inet::EncapsulationProtocolReq:

Public Member Functions
	EncapsulationProtocolReq ()
	EncapsulationProtocolReq (const EncapsulationProtocolReq &other)
virtual	~EncapsulationProtocolReq ()
EncapsulationProtocolReq &	operator= (const EncapsulationProtocolReq &other)
virtual EncapsulationProtocolReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::ProtocolListTagBase
	ProtocolListTagBase ()
	ProtocolListTagBase (const ProtocolListTagBase &other)
virtual	~ProtocolListTagBase ()
ProtocolListTagBase &	operator= (const ProtocolListTagBase &other)
virtual void	setProtocolArraySize (size_t size)
virtual size_t	getProtocolArraySize () const
virtual const Protocol *	getProtocol (size_t k) const
virtual void	setProtocol (size_t k, const Protocol *protocol)
virtual void	insertProtocol (size_t k, const Protocol *protocol)
void	insertProtocol (const Protocol *protocol)
virtual void	appendProtocol (const Protocol *protocol)
virtual void	eraseProtocol (size_t k)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const EncapsulationProtocolReq &)=delete
Protected Member Functions inherited from inet::ProtocolListTagBase
bool	operator== (const ProtocolListTagBase &)=delete

Private Member Functions
void	copy (const EncapsulationProtocolReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::ProtocolListTagBase
const Protocol **	protocol = nullptr
size_t	protocol_arraysize = 0

Detailed Description

Class generated from inet/common/ProtocolTag.msg:86 by opp_msgtool.

//
// This request determines the expected protocol encapsulation order of the
// packet. If this tag is attached to a packet, then the first encapsulation
// protocol specifies the next dispatch protocol. Otherwise the individual
// protocol modules are expected to request dispatching to their default
// following encapsulation protocol.
//
class EncapsulationProtocolReq extends ProtocolListTagBase
{
}

Constructor & Destructor Documentation

EncapsulationProtocolReq() [1/2]

inet::EncapsulationProtocolReq::EncapsulationProtocolReq

(

)

EncapsulationProtocolReq() [2/2]

inet::EncapsulationProtocolReq::EncapsulationProtocolReq

(

const EncapsulationProtocolReq &

other

)

~EncapsulationProtocolReq()

virtual inet::EncapsulationProtocolReq::~EncapsulationProtocolReq ( )

virtual

Member Function Documentation

copy()

void inet::EncapsulationProtocolReq::copy ( const EncapsulationProtocolReq &  other )

private

dup()

virtual EncapsulationProtocolReq* inet::EncapsulationProtocolReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::ProtocolListTagBase.

{return new EncapsulationProtocolReq(*this);}

operator=()

EncapsulationProtocolReq& inet::EncapsulationProtocolReq::operator=

(

const EncapsulationProtocolReq &

other

)

operator==()

bool inet::EncapsulationProtocolReq::operator== ( const EncapsulationProtocolReq &  )

protecteddelete

parsimPack()

virtual void inet::EncapsulationProtocolReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::ProtocolListTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::EncapsulationProtocolReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::ProtocolListTagBase.

Referenced by inet::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• ProtocolTag_m.h
