inet::EligibilityTimeTag Class Reference

Class generated from inet/protocolelement/shaper/EligibilityTimeTag.msg:22 by opp_msgtool. More...

#include <EligibilityTimeTag_m.h>

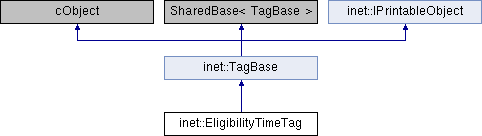

Inheritance diagram for inet::EligibilityTimeTag:

Public Member Functions
	EligibilityTimeTag ()
	EligibilityTimeTag (const EligibilityTimeTag &other)
virtual	~EligibilityTimeTag ()
EligibilityTimeTag &	operator= (const EligibilityTimeTag &other)
virtual EligibilityTimeTag *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual clocktime_t	getEligibilityTime () const
virtual void	setEligibilityTime (clocktime_t eligibilityTime)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const EligibilityTimeTag &)=delete

Protected Attributes
clocktime_t	eligibilityTime = CLOCKTIME_ZERO

Private Member Functions
void	copy (const EligibilityTimeTag &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/protocolelement/shaper/EligibilityTimeTag.msg:22 by opp_msgtool.

//
// This tag specifies the simulation time after which the packet becomes eligible
// for transmission according to the asynchronous shaper.
//
// This tag is used by the asynchronous shaper infrastructure.
//
// @see ~EligibilityTimeGate, ~EligibilityTimeFilter, ~EligibilityTimeMeter, ~EligibilityTimeQueue
//
class EligibilityTimeTag extends TagBase
{
    clocktime_t eligibilityTime; // the simulation time after which the packet is eligible for transmission
}

Constructor & Destructor Documentation

EligibilityTimeTag() [1/2]

inet::EligibilityTimeTag::EligibilityTimeTag

(

)

EligibilityTimeTag() [2/2]

inet::EligibilityTimeTag::EligibilityTimeTag

(

const EligibilityTimeTag &

other

)

~EligibilityTimeTag()

virtual inet::EligibilityTimeTag::~EligibilityTimeTag ( )

virtual

Member Function Documentation

copy()

void inet::EligibilityTimeTag::copy ( const EligibilityTimeTag &  other )

private

dup()

virtual EligibilityTimeTag* inet::EligibilityTimeTag::dup ( ) const

inlineoverridevirtual

{return new EligibilityTimeTag(*this);}

getEligibilityTime()

virtual clocktime_t inet::EligibilityTimeTag::getEligibilityTime ( ) const

virtual

Referenced by inet::EligibilityTimeGate::emitEligibilityTimeChangedSignal(), and inet::EligibilityTimeGate::updateOpen().

operator=()

EligibilityTimeTag& inet::EligibilityTimeTag::operator=

(

const EligibilityTimeTag &

other

)

operator==()

bool inet::EligibilityTimeTag::operator== ( const EligibilityTimeTag &  )

protecteddelete

parsimPack()

virtual void inet::EligibilityTimeTag::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::EligibilityTimeTag::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Referenced by inet::doParsimUnpacking().

setEligibilityTime()

virtual void inet::EligibilityTimeTag::setEligibilityTime ( clocktime_t  eligibilityTime )

virtual

Member Data Documentation

eligibilityTime

clocktime_t inet::EligibilityTimeTag::eligibilityTime = CLOCKTIME_ZERO

protected

---

The documentation for this class was generated from the following file:

• EligibilityTimeTag_m.h
